06 ELECTRICAL SYSTEM
Page ELECTRICAL SYSTEM - 12 Z001019/0_6_July 2008
SERVICE MANUAL MARINE ENGINES
For 4 cyl. engines only / Technical data of alternator
Model ....................................................................................................BOSCH No. 6 033GB3 046
Minimum speed for voltage generation ................................................. 550 1/min
Controlled voltage range ....................................................................... 13,9 - 14,7 V
Output current ....................................................................................... 90 A
Governor ............................................................................................... integratedl base governor
Charge capacity
at 750 r.p.m........................................................................................... ca. 34 A
at 3000 r.p.m. ........................................................................................ maximum charge capacity
Condensor capacity .............................................................................. 2,2 µF
01.03 ill.7

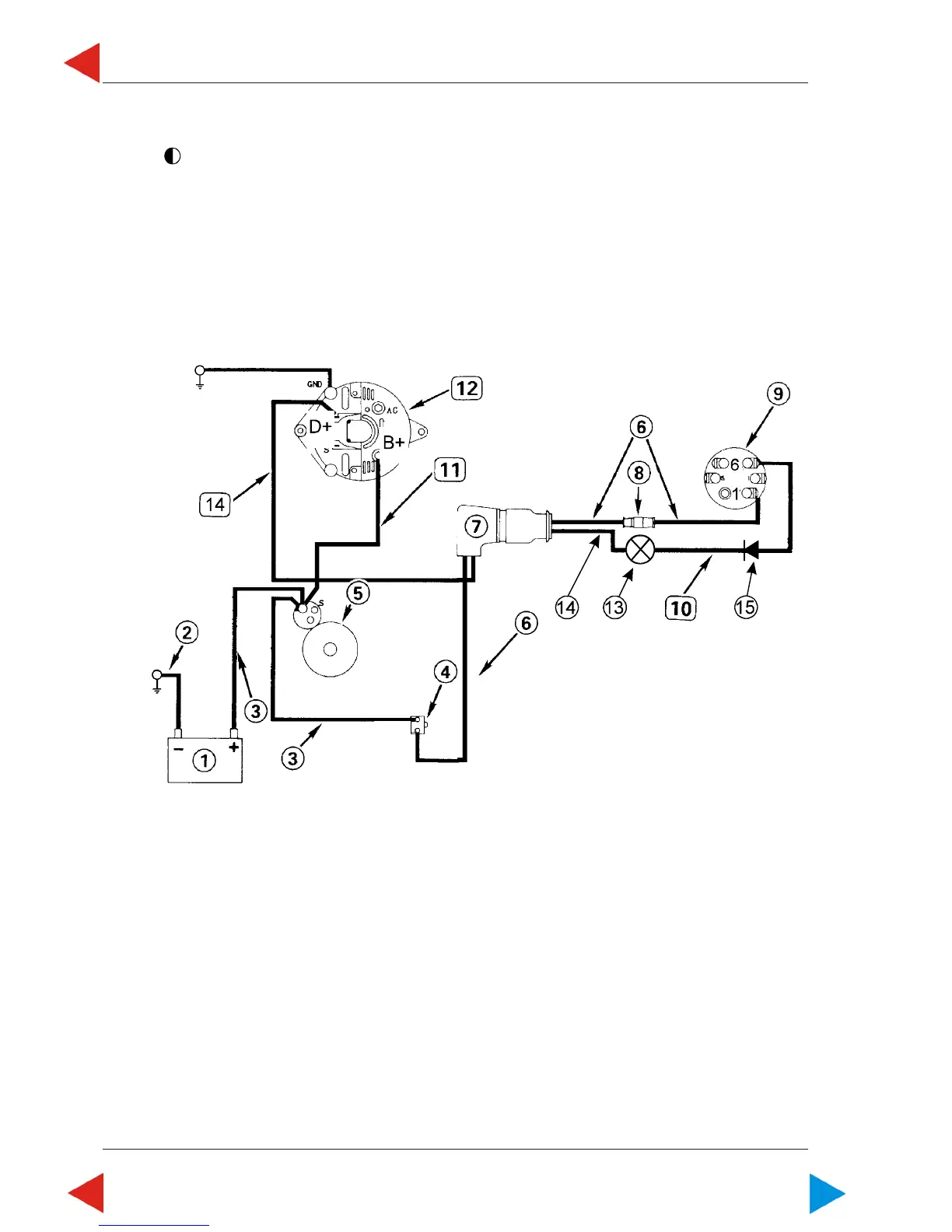

Charging circuit - scheme
1...... battery
2..... Z2, ground connection on engine
3..... red
4..... fuse 50 A
5..... starter engine
6..... red
7..... plug (engine electrics/instrument cable)
8..... fuse 10 A
9..... starter key lock
10..... 15000-xx
11..... red 16 mm²
12..... generator
13..... charging control (L1)
14..... 61000-02 (18-pole connecting cable Nr.: 11)
15..... blocking diode (1N4007)
