Instrument indication during normal operation
1. ignition ON (... until engine start)
ON (0,7 sec.)
ON (0,7 sec.)
ON
ON (0,7 sec.)
System check - see light indication
NOTE:
At low temperature condition (cold weather)
the combined light for glow plug preheating &
warning light engine oil pressure will not
extinguish after 0,7 sec. (glow plug preheating
phase)
In this case start engine immediately after the
light extinguishes.
2. ignition ON (... until engine start)
ON (5 sec.)
ON (0,7 sec.)
ON
ON (5 sec.)
Indication active error
3. engine running after start
OFF
OFF
OFF
OFF
light indication
light indication
NOTE:
Further information see:
"Table - Error indication on Instrument
Panel"
06. 07. 01 Chart - Operating Status

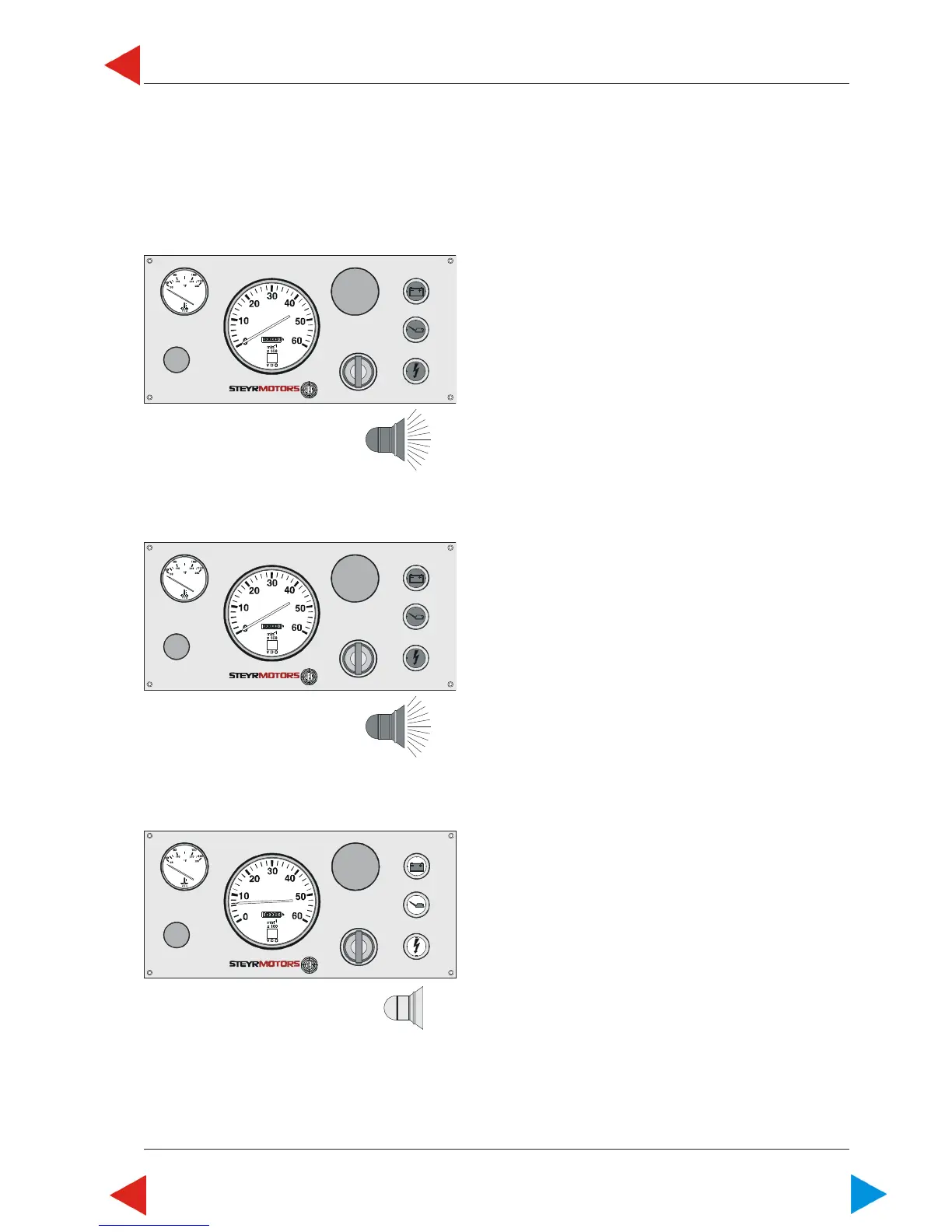

07.01 ill.1
07.01 ill.2
07.01 ill.3
Normal condition
