01 ENGINE
Z001019/0_6_July 2008 Page ENGINE - 9
SERVICE MANUAL MARINE ENGINES

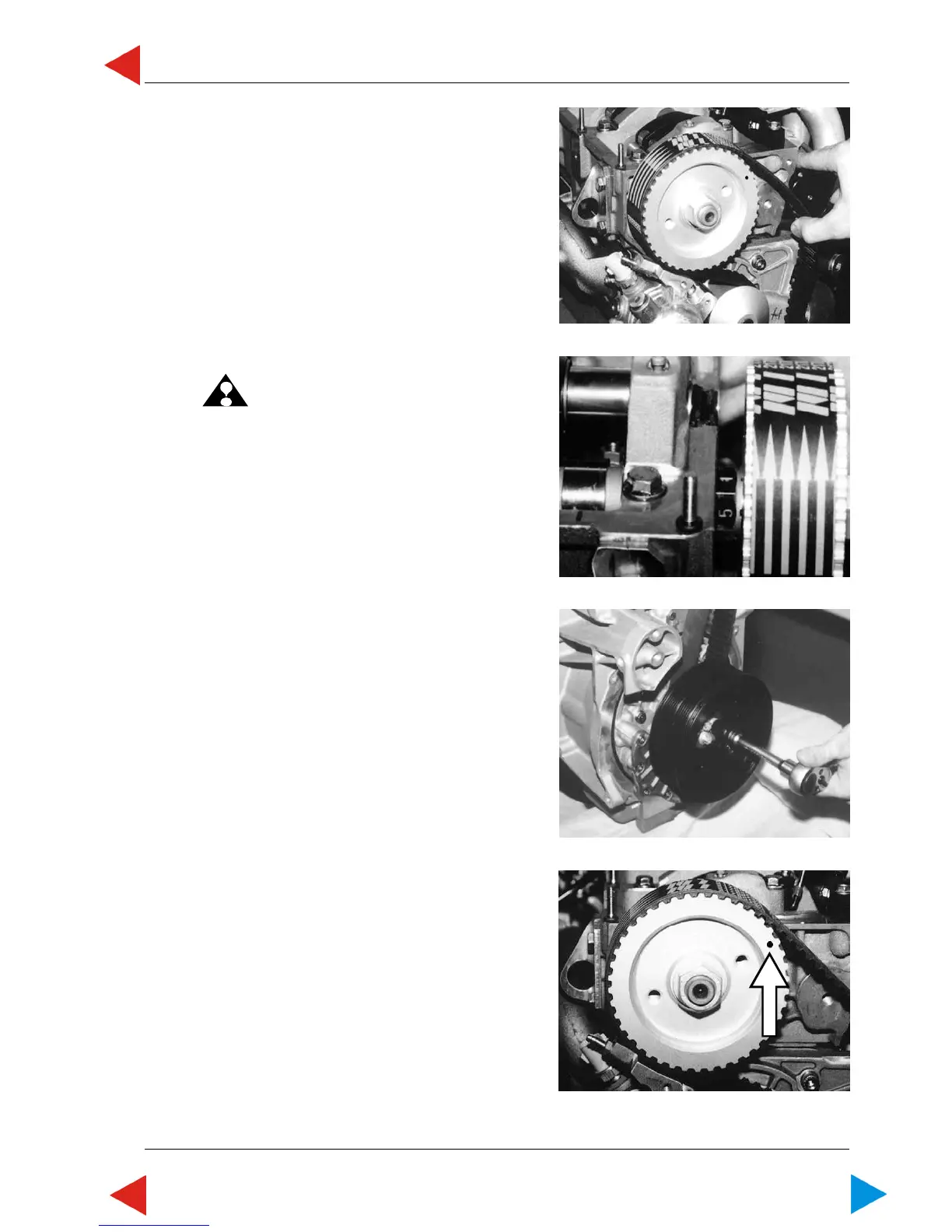

13 Put new timing belt onto crankshaft sprocket and
camshaft sprocket (marked tooth of camshaft sprocket
points at upper edge of camshaft housing).
00.03 ill.9
ATTENTION: Pay attention to arrow marker
(direction of rotation) on timing belt.
14 Mount vibriation damper. Slightly grease thread and
flange of 3 TORX screws (Grease P/N Z012222/0)
and tighten with torque wrench to 135 Nm +/-7.
NOTE: Recheck torque after first test run.
15 Tightly put on timing belt from crank shaft sprocket
over water pump drive wheel and camshaft sprocket,
and position camshaft sprocket with marked tooth
towards upper sealing edge of camshaft housing.
00.03 ill.10
00.03 ill.11
00.03 ill.12
