01 ENGINE
Z001019/0_6_July 2008 Page ENGINE - 23
SERVICE MANUAL MARINE ENGINES

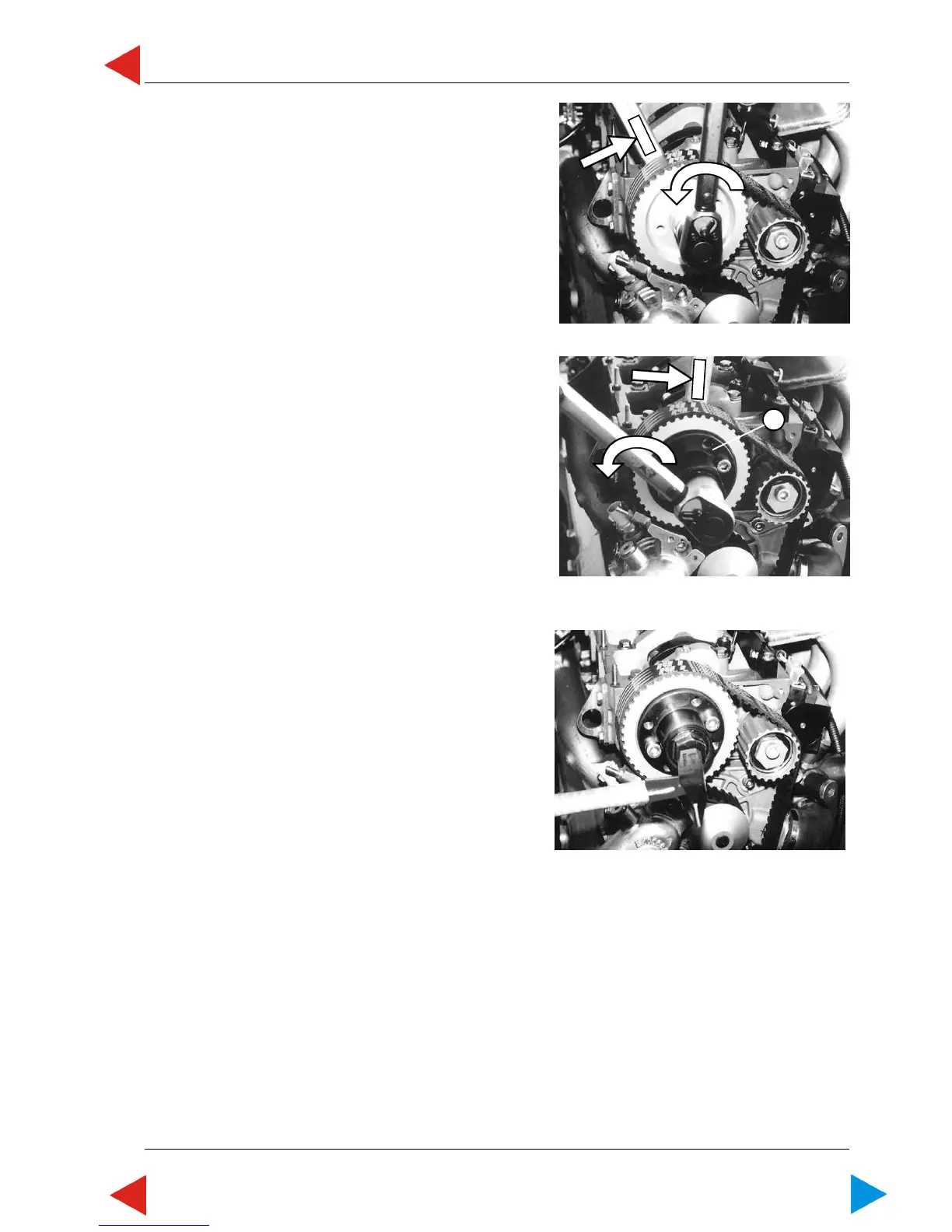

Remove camshaft sprocket
24 Loosen hexagon nut of camshaft sprocket (SW 30)
by holding up with special tool No. 2300711/0 and
turn nut by approx. 1/4 rotation.
25 Mount extractor (ill.26/pos.1) camshaft sprocket
VR00113/0 and screw in puller screw "LEFTHAND
THREAD" by hand.
Prestress puller screw with approx. 100 Nm +/-5.
NOTE: Do not remove camshaft sprocket
from conical seat when screwing in
the puller screw.
26 Remove camshaft sprocket from concial seat by one
hammer blow on puller screw.
NOTE: To correct the setting of engine timing,
follow further instructions as per item
27.
00.05 ill.27
00.05 ill.26
00.05 ill.25
1
