17MS 362, MS 362 C
4. Clutch
– Troubleshooting, b 3
– Remove the clutch drum, b 4.1
– Remove the shroud, b 6.4.

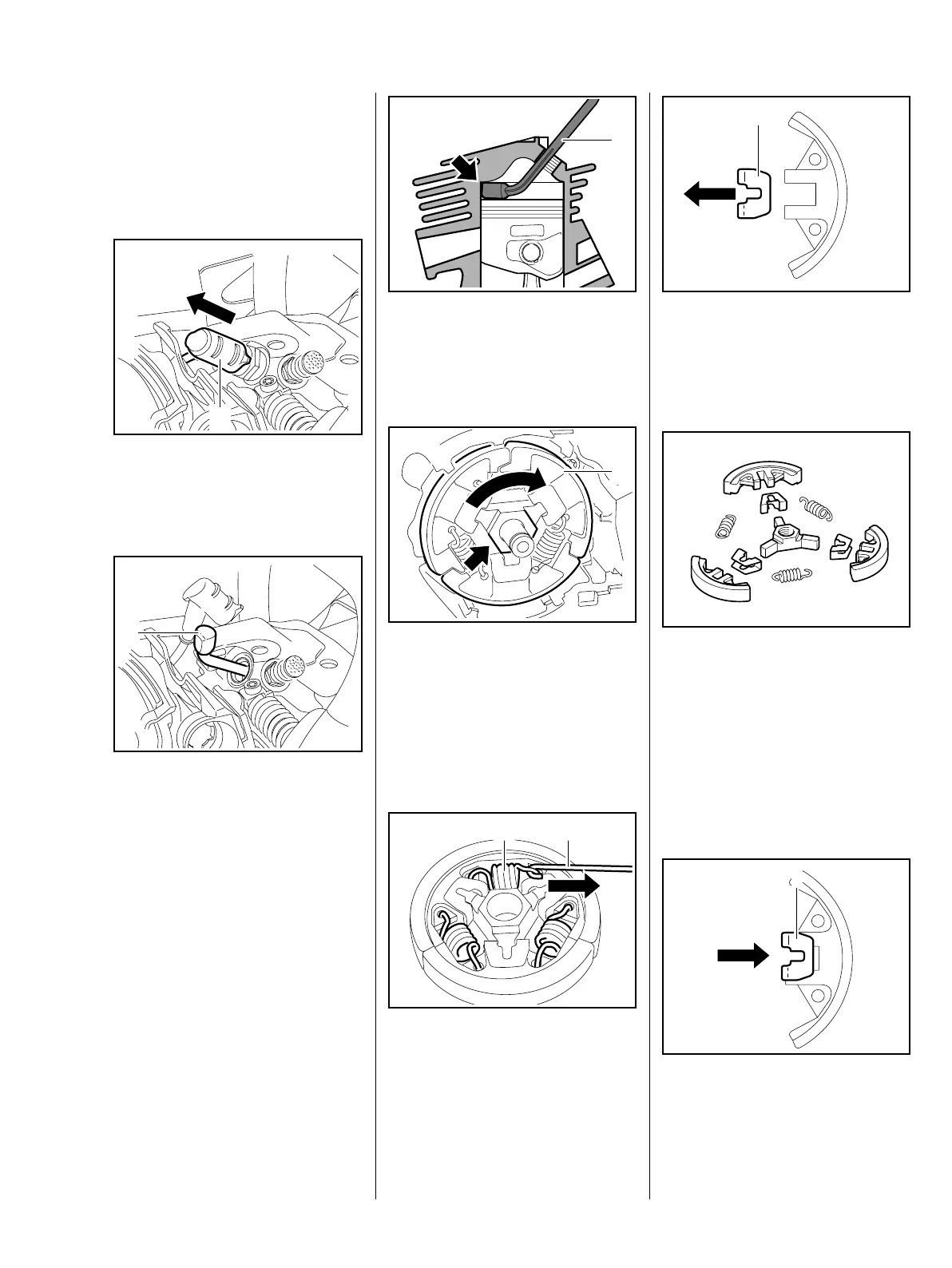

: Pull boot (1) off the spark plug.
– Unscrew the spark plug.
: Push the locking strip (1)
0000 893 5903 into the spark
plug hole, wide end first, so that
"OBEN-TOP" faces up.
1
0001RA004 TG
0001RA006 TG
1
: The locking strip (1)
0000 893 5903 must butt against
the cylinder wall (arrow) as
shown.
: Apply wrench to hexagon (arrow)
and unscrew the clutch (1).
Note that the clutch has a left-hand
thread.
Disassembling
: Use hook (2) 5910 890 2800 to
remove the clutch springs (1).
0001RA007 TG
1
TOP
0001RA008 TG
1
1
216RA007 TG
2
– Pull the clutch shoes off the
carrier.
: Remove the retainers (1).
– Clean all parts.
– Replace any damaged parts.
If the clutch is noticeably worn,
replace all three clutch shoes at the
same time – not individual shoes –
since runout may otherwise affect
correct operation of the clutch.
: Fit the retainers (1).
1
216RA008 TG
216RA009 TG
216RA011 TG
1
