Stihl MS 362 Manual

49MS 362, MS 362 C

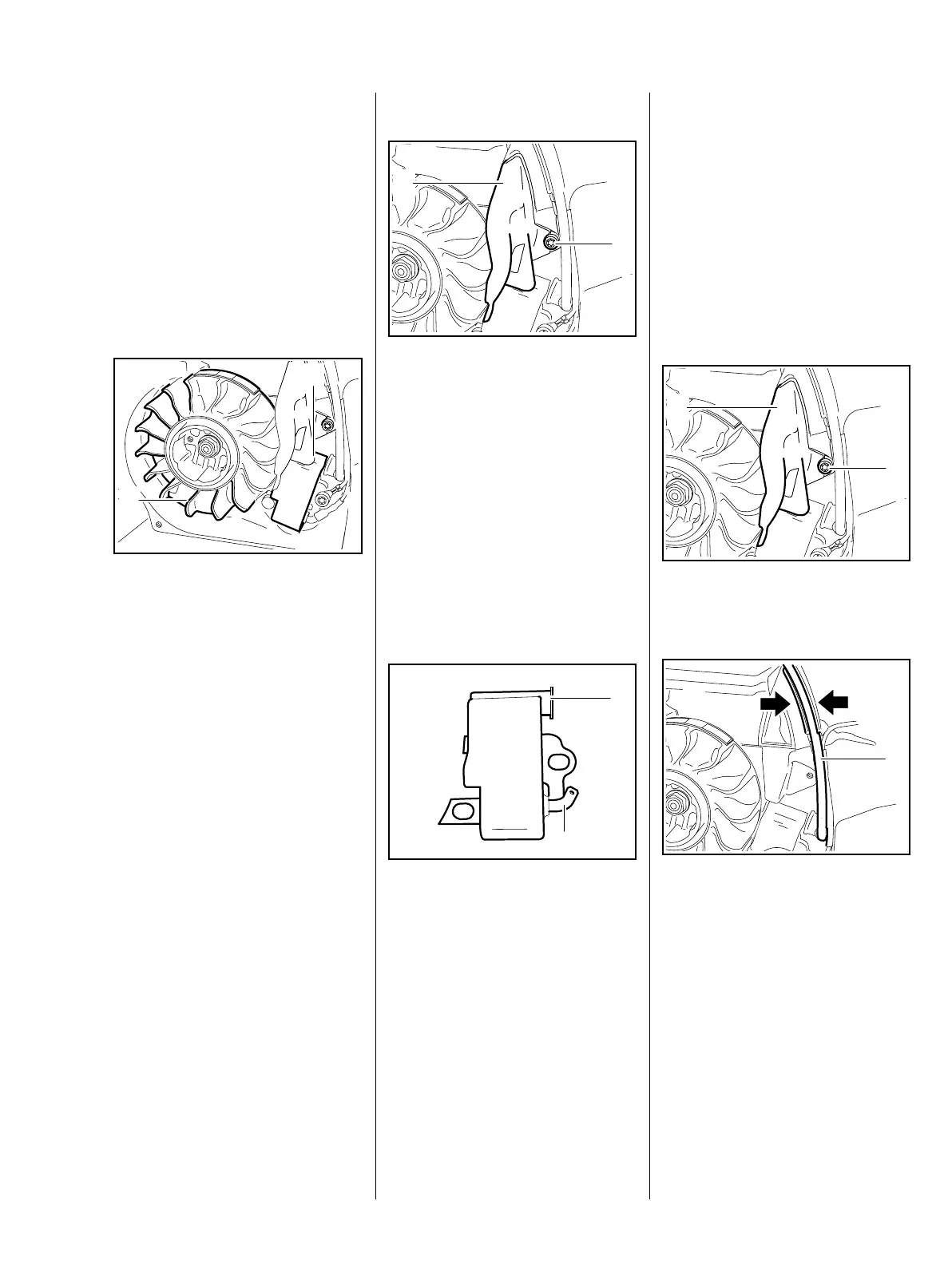

7. Ignition System
Exercise extreme caution when
troubleshooting and carrying out
maintenance or repair work on the
ignition system. The high voltages
which occur can cause serious or
fatal accidents.
Troubleshooting on the ignition
system should always begin at the
spark plug, b 3.5
– Remove the fan housing, b 8.2
The electronic (breakerless) ignition
system basically consists of an
ignition module (1) and flywheel (2).
7.1 Ignition Timing
Ignition timing is fixed and cannot
be adjusted during repair work.
Since there is no mechanical wear
in these systems, ignition timing
cannot get out of adjustment during
operation.
2
1
0001RA150 TG
7.2 Preseparator
– Remove the fan housing, b 8.2
: Take out the screw (1).
: Check the preseparator (2) and
replace if necessary
– Reassemble in the reverse
sequence.
– Tightening torques, b 2.5
7.3 Ignition Module
The ignition module accommodates
all the components required to
control ignition timing. There are
two electrical connections on the
coil body:
– the high voltage output (1) for the
ignition lead
– the connector tag (2) for the short
circuit wire
2
1
0001RA152 TG0001RA151 TG
2
1
Testing in the workshop is limited to
a spark test. A new ignition module
must be installed if no ignition spark
is obtained (after checking that
wiring and stop switch are in good
condition).
– Remove the fan housing,
b 8.2
– Remove the shroud and pull off
the spark plug boot, b 6.4
: Take out the screw (1) and
remove the preseparator (2).
: Pull the ignition lead (1) out of the
cable channel (arrows).
2
1
0001RA152 TG
1
0001RA155 TG

Stihl MS 362 Specifications

General

Displacement	59.0 cm³
Powerhead Weight	5.6 kg
Chain pitch	3/8"
Vibration level (left/right)	3.5/3.5 m/s²
Weight	5.6 kg
Guide Bar Length	40-50 cm (16-20 in)
Oil Capacity	325 cc
Weight (without cutting equipment)	5.6 kg
Oil tank volume	325 cc
