26 MS 362, MS 362 C

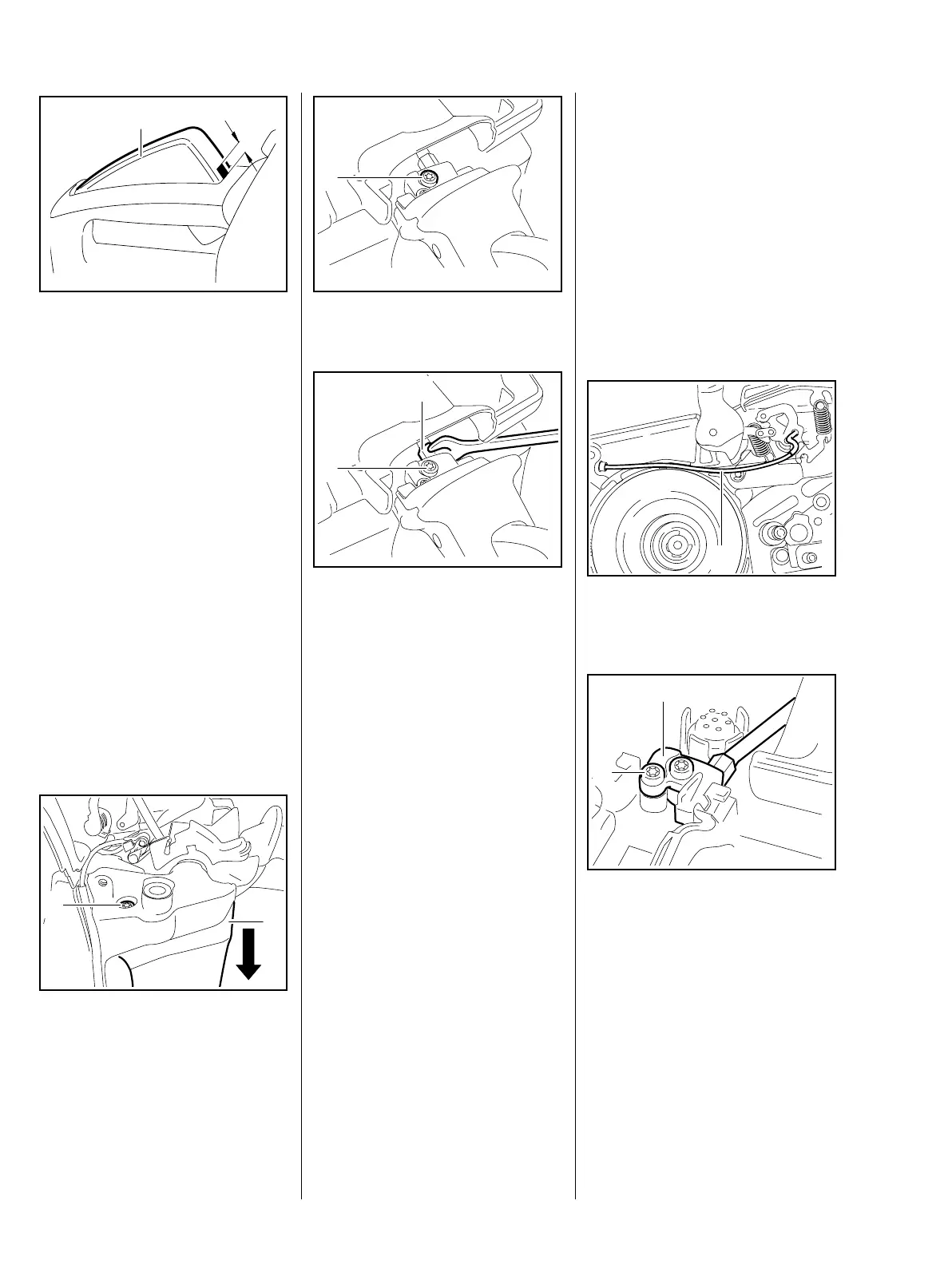

– Release the interlock lever (1).
: Carefully press the interlock lever
(1) to check free travel.
– Free travel must be within the
mark (a).
Free travel means that the interlock
lever (1) can be moved without the
brake lever moving.
A certain free travel is necessary to
guarantee correct operation of the
chain brake.
If there is too much free travel, it
must be adjusted.
– Remove the throttle rod,
b 10.3.4
– Fit the handle molding, b 10.3
: Take out the screw (1).
: Lower the tank housing (2).
a
0001RA456 TG
1
1
2
0001RA212 TG
: Loosen the clamp screw (1).
: Use open end wrench the set free
travel on the adjusting screw (1).
– Turn the adjusting screw
counterclockwise to increase free
travel.
– Turn the adjusting screw
clockwise to reduce free travel.
– When the setting is correct,
tighten down the clamp screw (2)
firmly.
– Install the throttle rod, b 10.3.4
– Fit the handle molding, b 10.3
– Reassemble all other parts in the
reverse sequence.
– Tightening torques, b 2.5
0001RA043 TG
1
0001RA044 TG
1
2
5.4.2 Brake Cable
– Disconnect the brake spring,
b 5.3
– Remove the carburetor, b 12.5
– Remove the throttle trigger,
b 10.3
– Remove the switch lever,
b 10.3.1
: Pull out the brake cable (1) a little
and disconnect it.
: Take out the screw (1).
: Remove the brake cable retainer
(2) with brake cable.
– Pull the brake cable out of the
crankcase.
1
0001RA480 TG
0001RA045 TG
1
2
