44 MS 362, MS 362 C

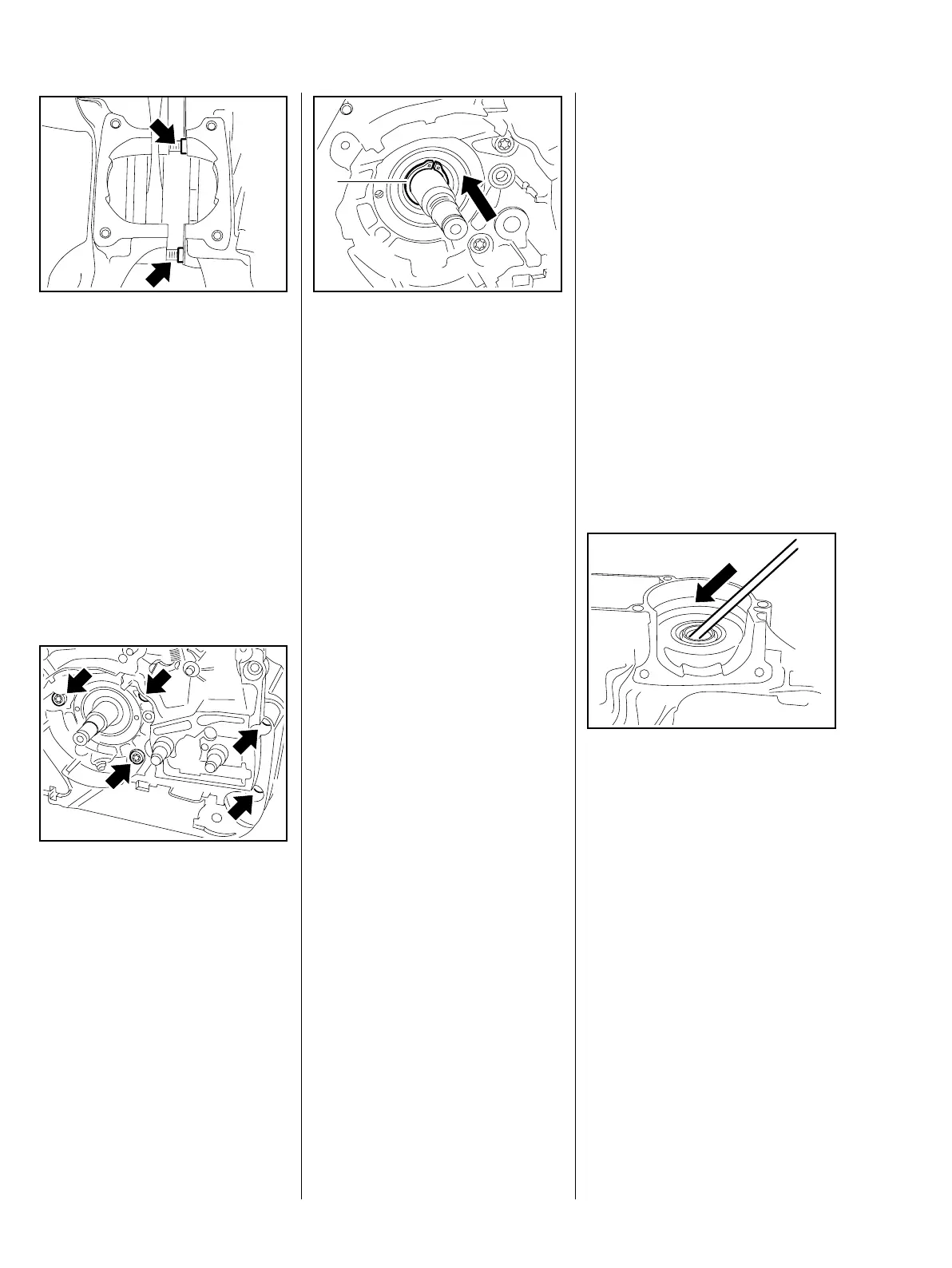

Make sure the sleeves (arrows)
engage the holes and the gasket is
not pinched or twisted.
– Continue turning the service
tool's spindle until the gap
between the two halves of the
crankcase is closed.
– Unscrew the mounting nuts.
– Unscrew the spindle clockwise
and take away the service tool.
– Take out the M5x72 screws.
: Insert the screws (arrows) and
tighten them down firmly in a
crosswise pattern.
– Tightening torques, b 2.5
0001RA127 TG
0001RA112 TG
: Fit the circlip (1) in the groove
(arrow).
– Check and install the piston,
b 6.7
– Check and install the cylinder,
b 6.5
– Reassemble all other parts in the
reverse sequence.
6.6.1 Bearings / Crankcase
Each half of the crankcase can be
replaced separately if it is damaged.
New crankcase halves are supplied
with the main parts preassembled
– see the parts list.
Parts not supplied with the new
crankcase must be transferred from
the original crankcase – check the
parts and replace if necessary.
If a new crankcase is installed, the
machine's serial number must be
stamped on it with 2.5 mm figure
stamps.
0001RA098 TG
1
If the original crankcase is used
again, replace the oil seals and ball
bearings, remove any gasket
residue and clean the sealing
surfaces thoroughly. The sealing
faces must be in good condition and
clean to guarantee a perfect seal.
Inspect both halves of the
crankcase for cracks and all sealing
faces for signs of damage.
– See also Troubleshooting,
b 3.7
– Remove the crankshaft, b 6.6
– Wear protective gloves
to reduce risk of burn injury.
Ignition side of crankcase
: Use a suitable punch to carefully
drive out the oil seal.
: Check and clean the crankcase
or replace if necessary.
If this half of the crankcase is in
order, install a new ball bearing.
0001RA131 TG
