Stihl MS 362 - 10.3.3 Choke Rod

83MS 362, MS 362 C

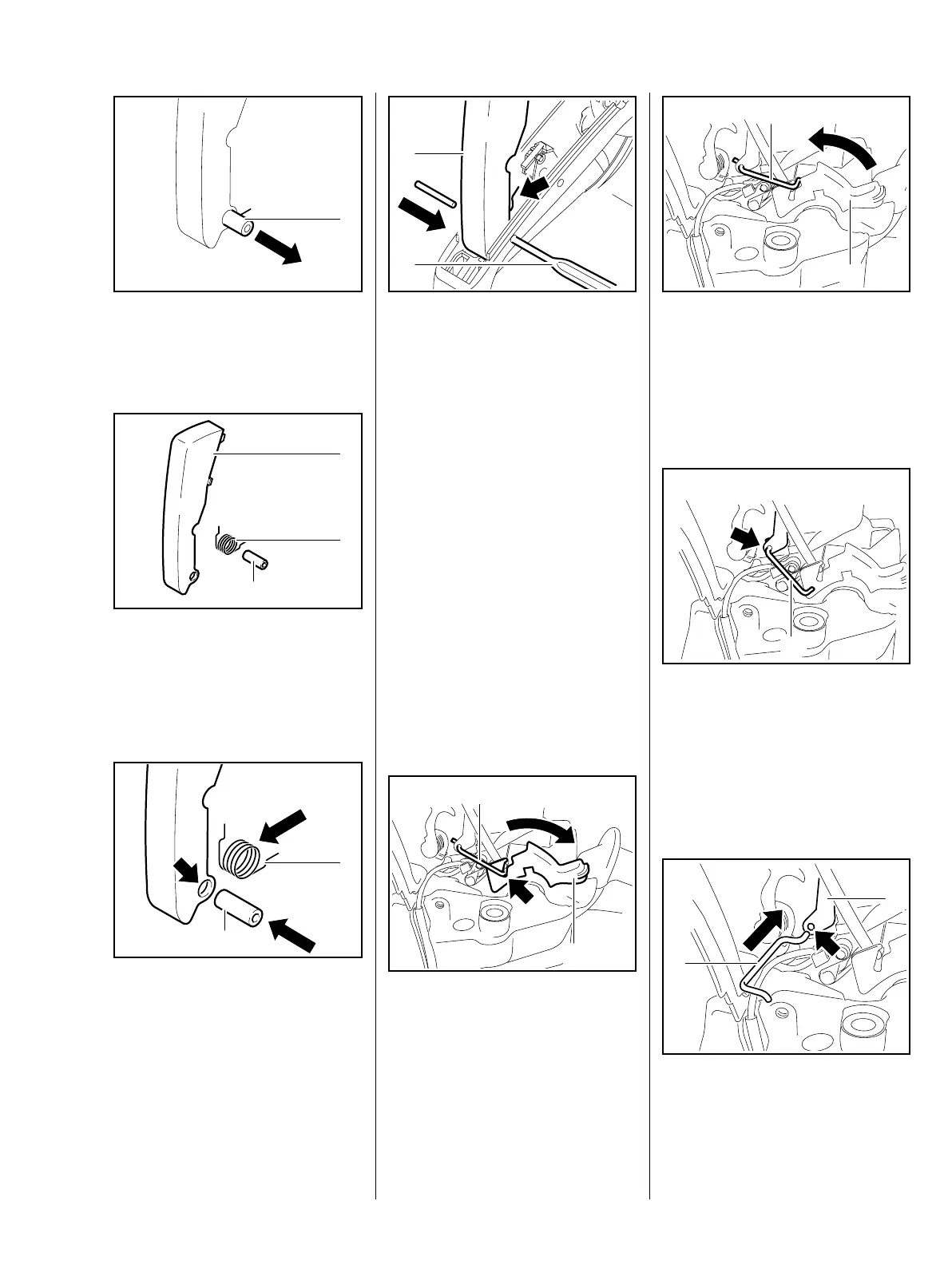

: Push out the bushing (1).
– Remove the torsion spring.
– Check the interlock lever (1),
torsion spring (2) and bushing (1)
and replace if necessary
Installing
: Position the torsion spring (1) and
fit it in the interlock lever.
: Push the bushing (2) into the bole
(arrow) – the torsion spring is
held in position.
219RA453 TG
1
219RA454 TG
1
2
3
219RA455 TG
1
2
– The torsion spring (arrow) must
locate against the tank housing.
: Use a drift (2) to center the
interlock lever (1).
– Drive home the pin until it is
recessed by same amount at
both sides.
– Reassemble in the reverse
sequence.
– Tightening torques, b 2.5
– Check operation.
10.3.3 Choke Rod
– Remove the air filter, b 12.1
: Carefully pry the choke rod (2)
out of its seat in the guide (arrow)
and move the switch shaft (1) in
the direction of cold start at the
same time.
219RA456 TG
1
2
0001RA298 TG
1
2
: Move the switch shaft (1) in the
direction of the carburetor and
disconnect the choke rod (2).
– Take the choke rod (1) out of the
guide.
: Disconnect the choke rod (1)
from the choke shaft (arrow).
– Check the choke rod and replace
it if necessary
Installing
: Engage the choke rod (1) in the
bore (arrow) in the choke shaft
(2).
0001RA299 TG
1
2
0001RA300 TG
1
0001RA301 TG
1
2
