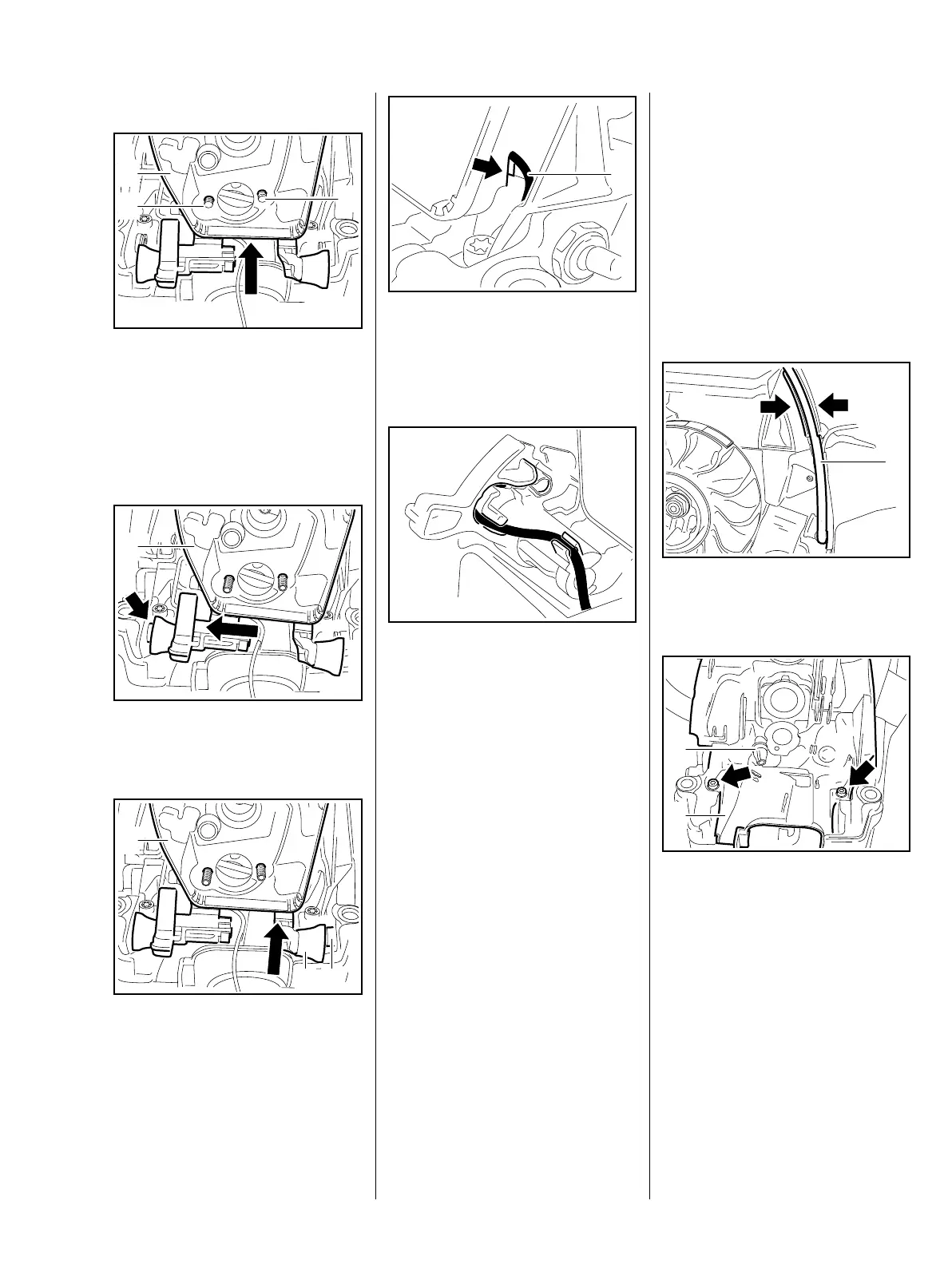

Installing
– To simplify assembly, coat the
rubber buffers with STIHL press
fluid.
: Slide the filter base (1) over the
studs.
: Push the filter base (1) fully into
the guides (arrow).
: Push the filter base (1) fully onto
the pin (2).
: Push the filter base (1) onto the
pivot pin (2) until it engages the
rubber buffer.
0001RA332 TG
2
1
2
1
0001RA331 TG
1
0001RA501 TG
23
: Push the wire (1) fully into the
guide (arrow)
– machines with handle and
carburetor heating.
– Install the short circuit wire,
b 7.7
– Reassemble all other parts in the
reverse sequence.
– Tightening torques, b 2.5
0001RA500 TG
1
0001RA460 TG
12.4 Air Guide Shroud
– Remove the filter base, b 12.3
– Remove the throttle rod,
b 10.3.4
– Remove the carburetor, b 12.5
– Remove the carburetor carrier,
b 12.8
: Pull the ignition lead (1) out of the
guide (arrows).
: Take out the screws (arrows).
: Remove the air guide shroud (1)
and push the fuel hose (2)
through the opening at the same
time.
1
0001RA155 TG0001RA242 TG
1
2
