86 MS 362, MS 362 C
11.3 Oil Pump
– Troubleshooting, b 3.3
– Remove the clutch, b 4
– Remove the brake band, b 5.2

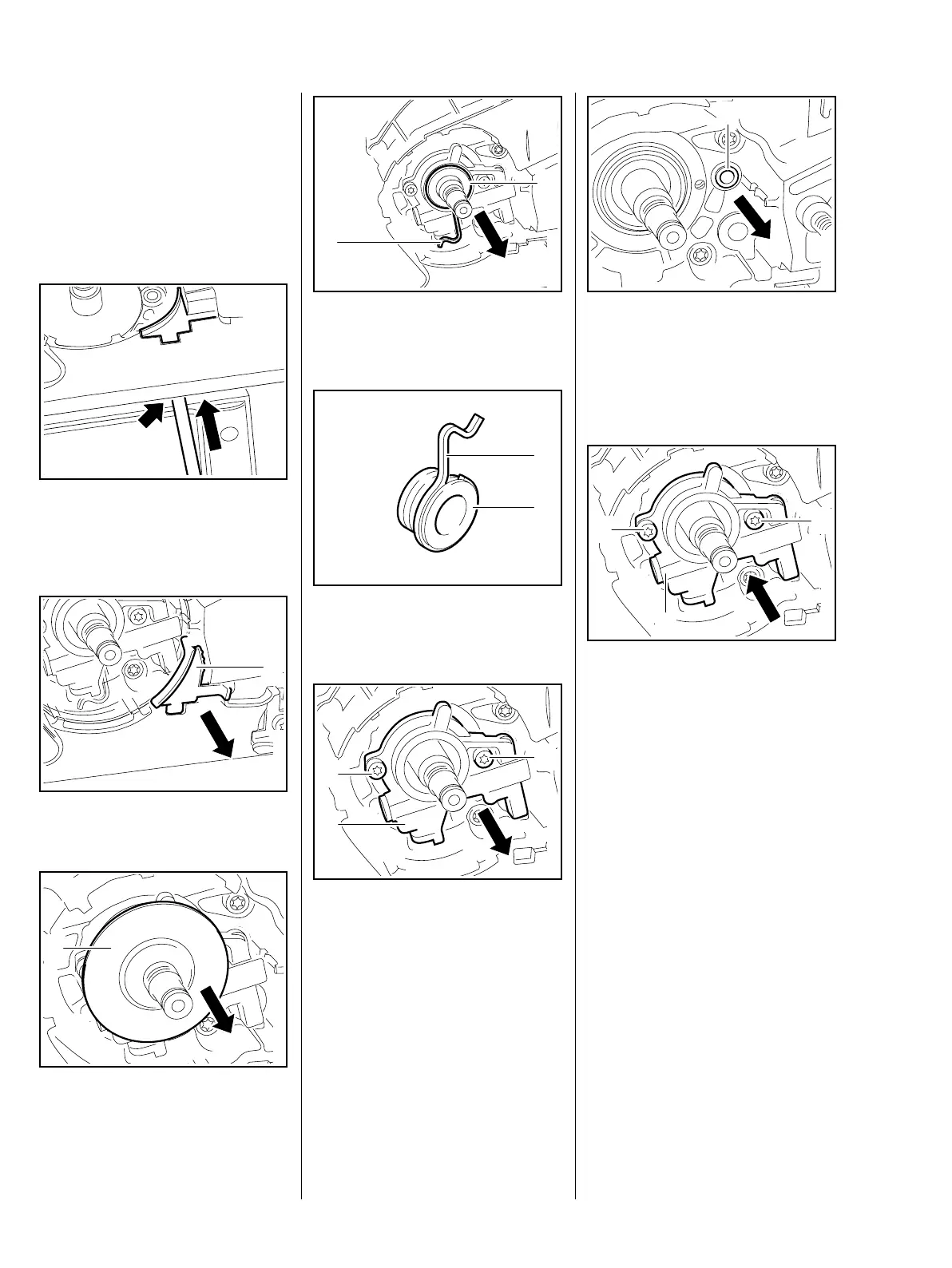

: Ease out the lug between the
crankcase and tank housing
(arrow).
: Remove the cover (1).
: Remove the cover washer (1).
0001RA462 TG
0001RA315 TG
1
TOP
0001RA314 TG
1
: Pull the worm (1) with drive
spring (2) out of the oil pump.
: Check the spring (1) and worm
(2) and replace if necessary.
: Take out the screws (2) and (3).
: Pull off the oil pump (1), check
and replace if necessary.
0001RA316 TG
1
2
219RA470 TG
1
2
0001RA317 TG
3
2
1
: Fit a new sealing ring (1).
Always use a new sealing ring.
Installing
– Place the oil pump (1) in position.
– Coat the screw (2) with
threadlocking adhesive, b 15
: Fit the screws (2 and 3)
and tighten them down firmly.
– Push the worm fully home.
– Fit the cover washer.
0001RA318 TG
1
1
0001RA319 TG
2
3
