57MS 362, MS 362 C
7.7.4 Contact Spring

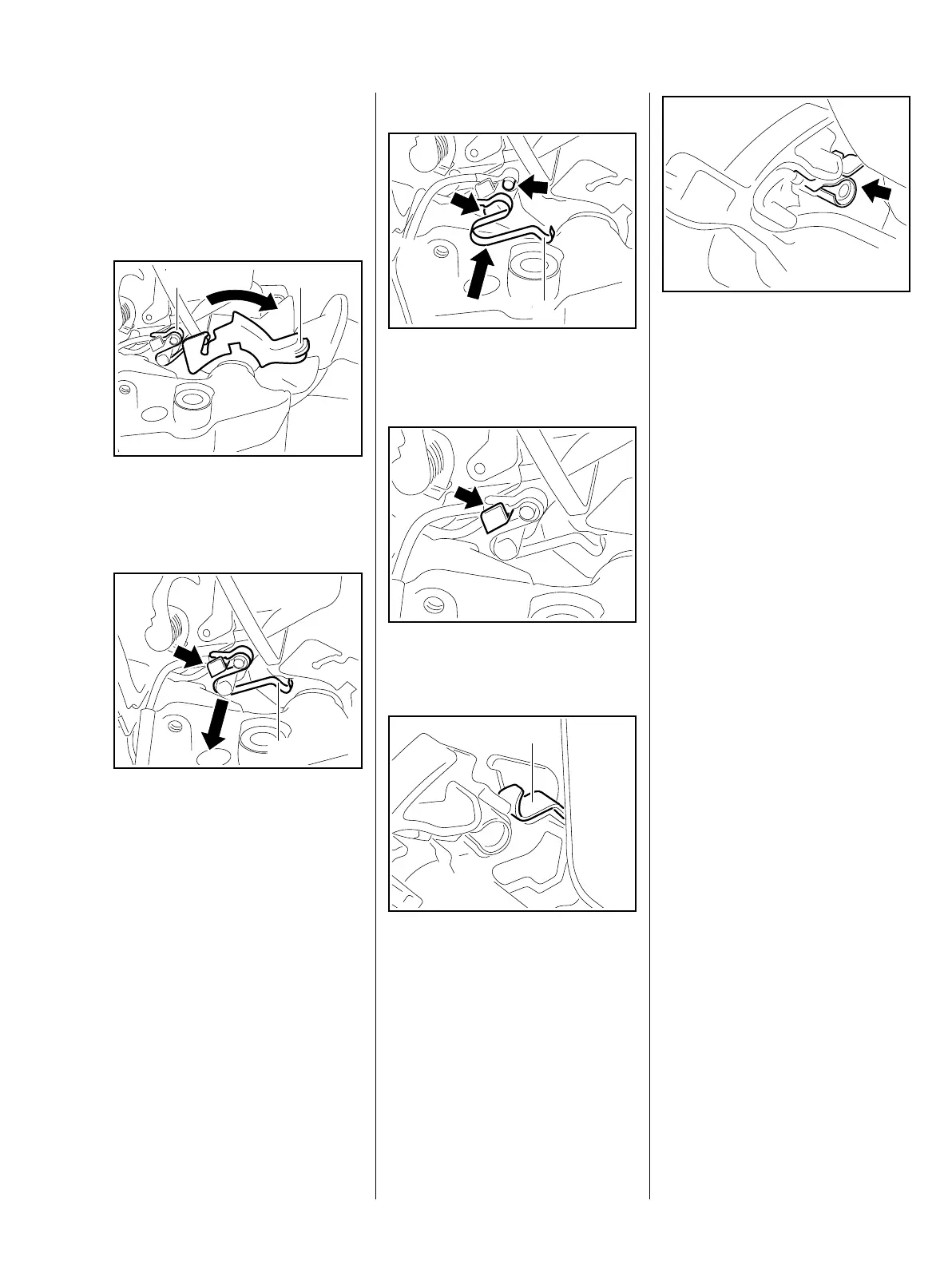

– Remove the shroud, b 6.4
– Remove the choke rod,
b 10.3.3
: Move the switch shaft (1) towards
the tank housing until the contact
spring (2) is free.
: Lift the contact spring (1) over the
lug (arrow) and pull it out.
– Check the contact spring and
replace it if necessary, b 7.7.4
0001RA180 TG
2 1
0001RA181 TG
1
Installing
: Push the contact spring (1) onto
the pin (arrows) as far as stop.
Make sure the lug (arrow) locks the
contact spring in position.
: Lift the contact spring (1) and
push it over the switch shaft.
0001RA182 TG
1
0001RA183 TG0001RA492 TG
1
: Check operation
– short circuit wire's connector
must touch the contact spring
(arrow) in position "
0".
– Reassemble all other parts in the
reverse sequence.
0001RA184 TG
