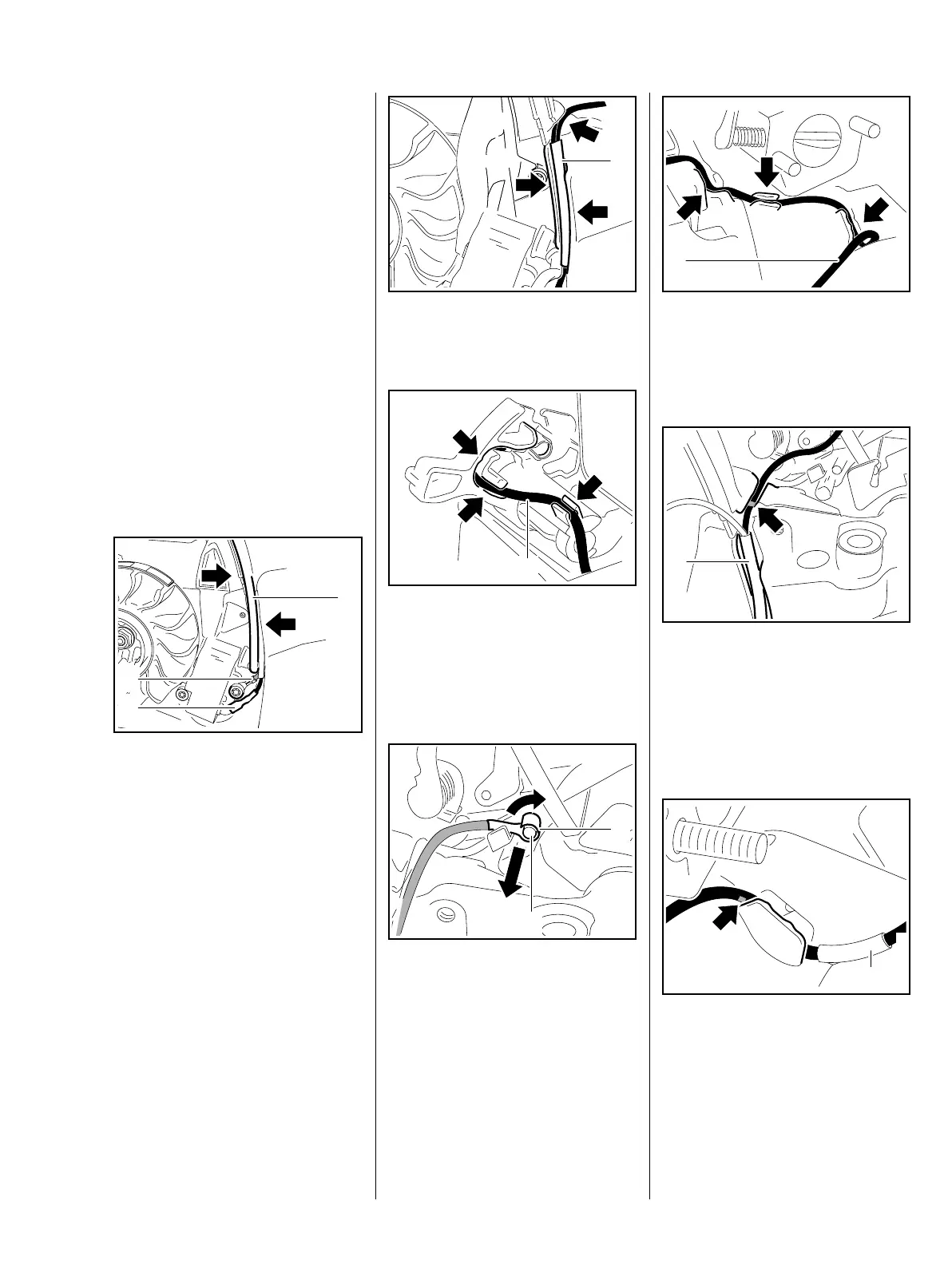

55MS 362, MS 362 C
7.7.2 Removing and Installing
Pull the boot off the spark plug,
b 5.2
Remove the shroud, b 6.4
Remove the fan housing,
b 8.2
Disconnect the choke rod,
b 10.3.3
Remove the contact spring,
b 7.7.4
Remove the filter base, b 12.3
The ground and short circuit wires
are combined in a wiring harness.
: Pull the ignition lead (3) out of the
guide (arrows).
: Remove the connector (1).
: Take out the screw and remove
the ground wire (2).
0001RA171 TG
1
2
3
: Pull the wiring harness (1) out of
the guides (arrows).
: Pull the short circuit wire (1) out
of the guides (arrows).
Remove the ring terminal from
the pivot pin (2).
: Swing the ring terminal (1) up and
remove it from the pivot pin (2).
Remove the filter base, b 12.3
0001RA172 TG
1
0001RA170 TG
1
0001RA173 TG
2
1
: Pull the short circuit wire (1) out
of the guides (arrows).
Installing
: Position the short circuit wire so
that the yellow mark lines up with
the edge (arrow) of the air baffle.
Push the wiring harness (1) into
the guide.
: Position the short circuit wire (1)
so that the yellow mark (arrow) is
against the guide.
0001RA174 TG
1
0001RA175 TG
1
0001RA496 TG
1
