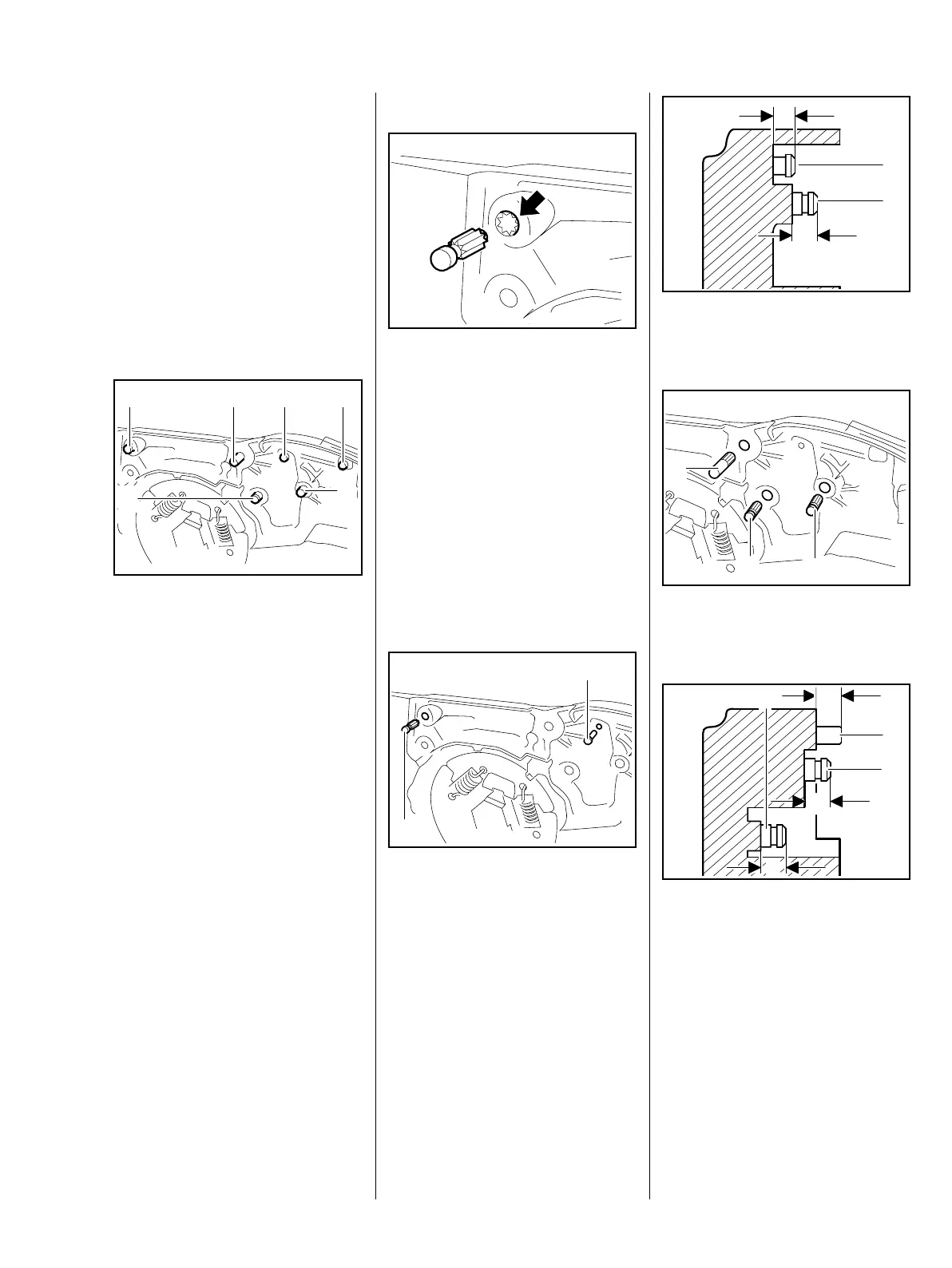

29MS 362, MS 362 C
5.6 Pins
The anchor pins secure the springs.
Worn pins must be replaced.
– The springs may otherwise
become detached and pop out.
The pins must be driven home
squarely.
For greater clarity, all parts have
been removed from the pins in the
following illustrations.
: Use suitable tool to remove the
pins (1 - 6).
Pin 6 is fitted only on machines with
QuickStop Super.
0001RA057 TG
12 3
4
5
6
Installing
Before installing the new pin, coat
its knurled shank with
threadlocking adhesive, b 15
: Position the new pin in the bore
(arrow) so that the knurling on the
pin meshes with the existing
knurling in the bore.
Turn pin back and forth as
necessary.
The pins must be driven home
squarely.
: Drive home the pins (1 and 2) as
shown in the illustrations.
0001RA059 TG0001RA060 TG
2
1
: Pin (1) a = about 2.9...3.3 mm
Pin (2) b = about 4.3...4.7 mm
: Drive home pins (3, 4 and 5) as
specified below.
: Pin (3) a = about 9.6...9.8 mm
Pin (4) b = about 4.6...4.8 mm
Pin (5) c = about 5.1...5.3 mm
a
b
0001RA061 TG
1
2
0001RA062 TG
3
4
5
a
c
b
3
4
5
0001RA063 TG
