Stihl MS 362 - Handlebar

71MS 362, MS 362 C
Installing

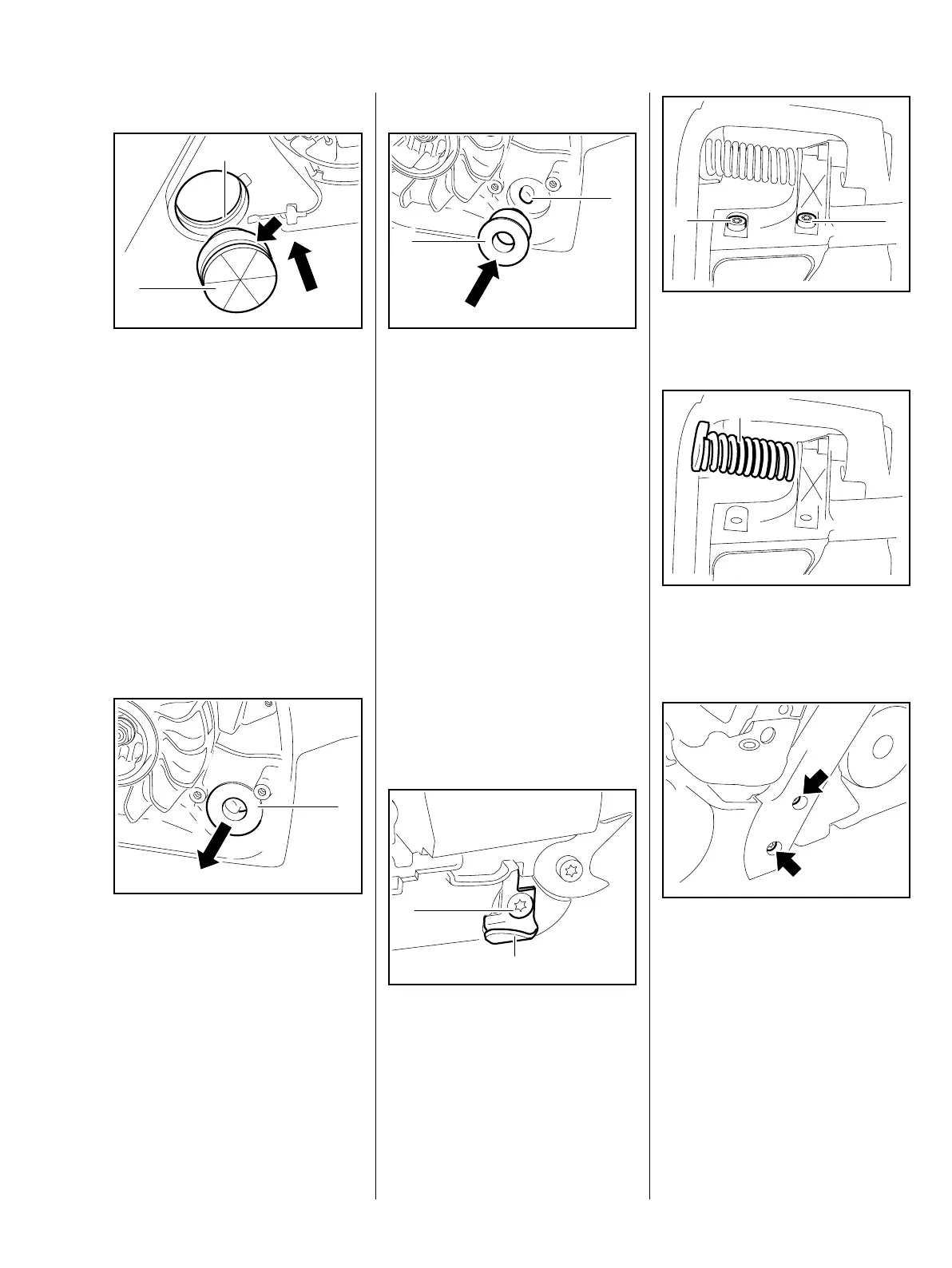

– Position the stop buffer (1)
with its tapered end facing the
crankcase.
– Use STIHL press fluid to simplify
assembly, b 15
: Push home the stop buffer (1)
until its groove (arrow) engages
the housing rib (2).
Annular Buffer at Ignition Side
– Remove the ignition module,
b 7.3
: Pry out the annular buffer (1).
– Check the annular buffer and
replace if necessary
0001RA225 TG
1
2
0001RA226 TG
1
Installing
– Line up the annular buffer (1)
with its tapered end facing the
crankcase.
: Push home the annular buffer (1)
so that its bore engages the peg
(2) in the tank housing.
– Reassemble all other parts in the
reverse sequence.
– Tightening torques, b 2.5
9.6 Handlebar
– Remove the shroud, b 6.4
– Remove AV spring from
handlebar, b 9.4
: Take out the screw (1) and
remove the chain catcher (2).
1
0001RA227 TG
2
0001RA002 TG
2
1
: Remove the screws (1) from the
underside of the machine.
: Ease the tank housing to one
side and pry out the AV spring
(1).
: Take out the screws (arrows).
1
0001RA228 TG
1
1
0001RA229 TG0001RA230 TG
