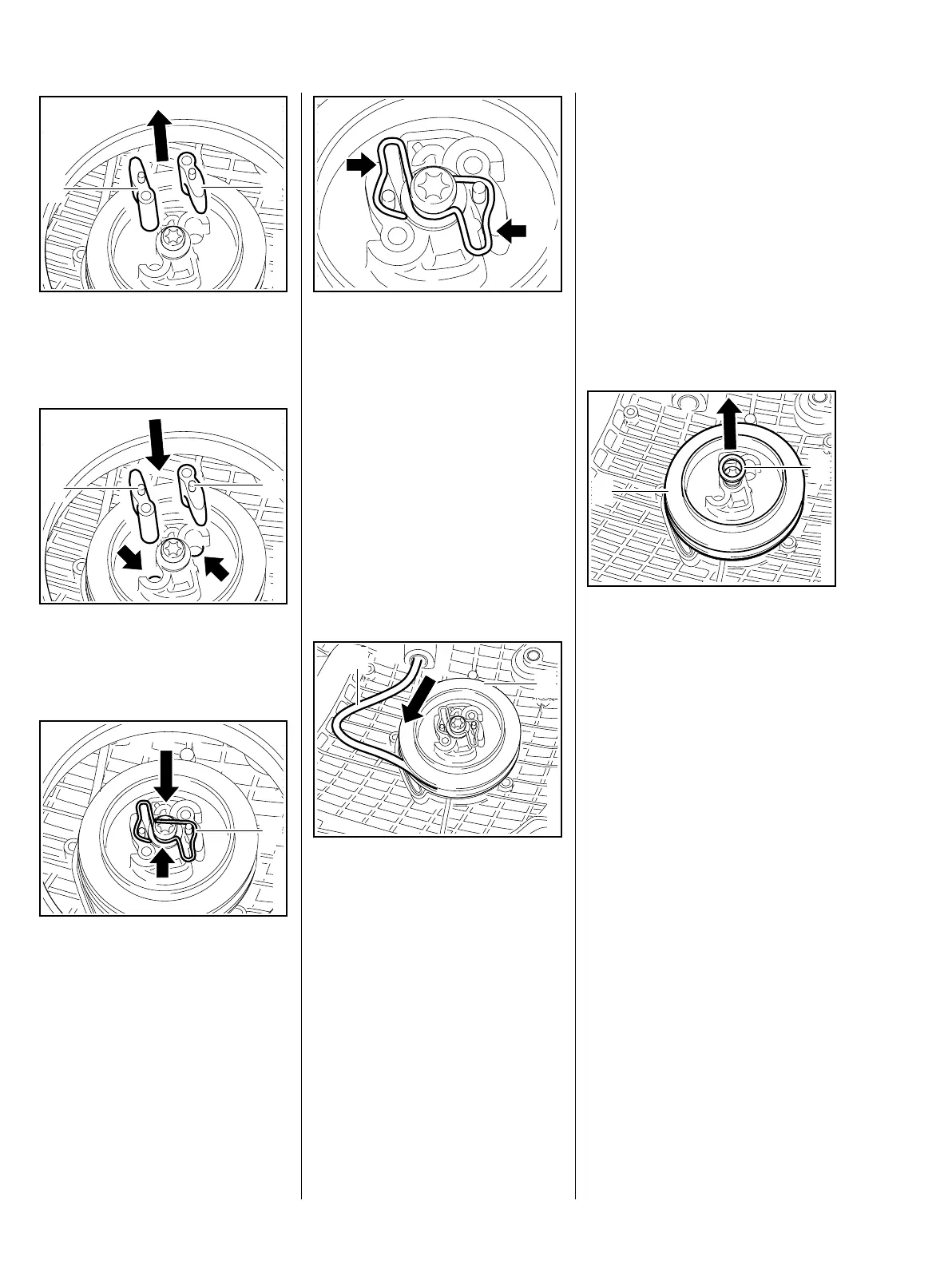

62 MS 362, MS 362 C
: Remove the pawls (1).
Installing
Fit the new pawls in the bores
(arrows) and lubricate the pegs
(1), b 15
: Position the spring clip (1) so that
its loops engage the pegs on the
pawls. The rounded part of the
spring clip (arrow) must engage
the starter post’s groove.
: Push the straight part of the
spring clip over the starter post
until it snaps into the groove.
0001RA472 TG
1
1
0001RA473 TG
1
1
0001RA474 TG
1
The spring clip's guide loops must
be in line with the pawls (arrows).
Check operation.
Pull the starter rope, the rotor
turns and the pegs on the pawls
move in the direction of spring
loops – the pawls move
outwards.
Reassemble all other parts in the
reverse sequence.
8.4 Rope Rotor
Relieving tension of rewind
spring
The system will not be under
tension if either the starter rope or
rewind spring is broken.
Remove the fan housing and the
segment, b 8.2
: Pull out the starter rope (1)
about 5 cm and hold the rope
rotor (2) steady.
0001RA190 TG0001RA191 TG
2
1
Take three full turns of the rope
off the rope rotor.
Pull out the rope with the starter
grip and slowly release the rope
rotor.
Remove the starter rope or
remaining rope from the rotor,
b 8.5
Remove the spring clip and
pawls, b 8.3
: Remove the cover washer (1).
Rewind spring must be relaxed.
: Carefully remove the rope rotor
(2).
Check the rope rotor and replace
if necessary.
Coat bore in rope rotor with
STIHL special lubricant,
b 15
0001RA192 TG
2
1
