Stihl MS 362 - Quickstop Super; Adjusting the; Brake Cable

25MS 362, MS 362 C

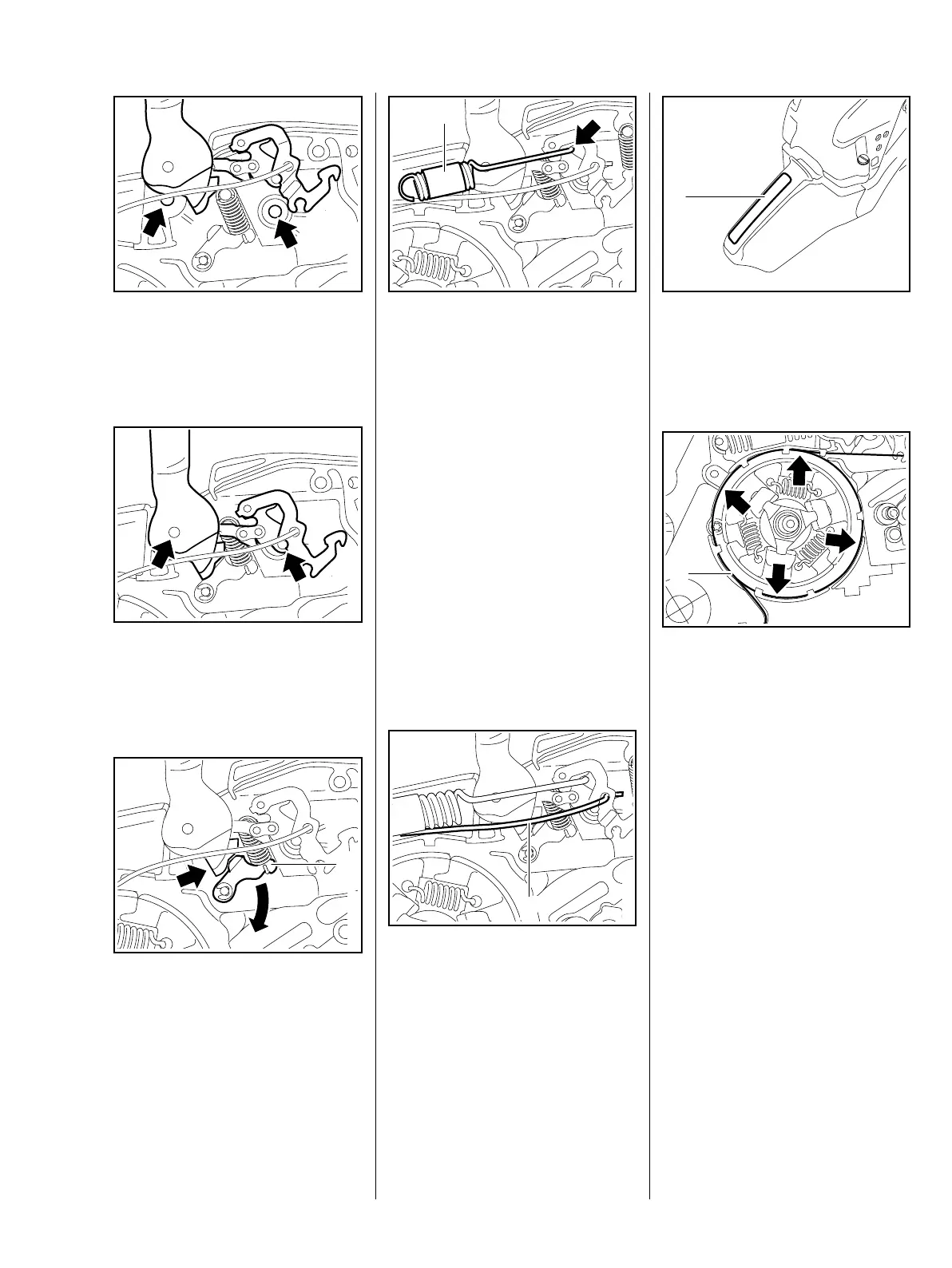

: Push the hand guard with brake
lever over the machine until they
are positioned against the pivot
pins.
: Lift the bearing boss of the hand
guard and the brake lever a little
and position them over the pivot
pins (arrows).
: Turn the cam lever (1) to one side
until the cam of the hand guard
(arrow) slips passed it.
– Push the hand guard bearing
boss and the brake lever on to
the pivot pins.
0001RA039 TG0001RA266 TG0001RA296 TG
1
: Attach the spring (1) to the brake
lever (arrow).
The installation procedure is now
the same as for the brake without
QuickStop Super, b 5.3
5.4.1 Adjusting the
Brake Cable
If problems occur on the chain
brake even though the brake band
is in order, the reason may be the
adjustment of the brake cable.
– Troubleshooting, b 3.2
– Remove the chain brake cover,
b 5.2
The brake cable (1) must be relaxed
when the interlock lever is released.
1
0001RA042 TG
1
219RA080 TG
– Disengage the chain brake.
: Press down the interlock lever (1)
and hold it in that position.
The brake band (1) must locate
against the crankcase (arrows)
without any play.
0001RA041 TG
1
1
219RA081 TG
