24 MS 362, MS 362 C

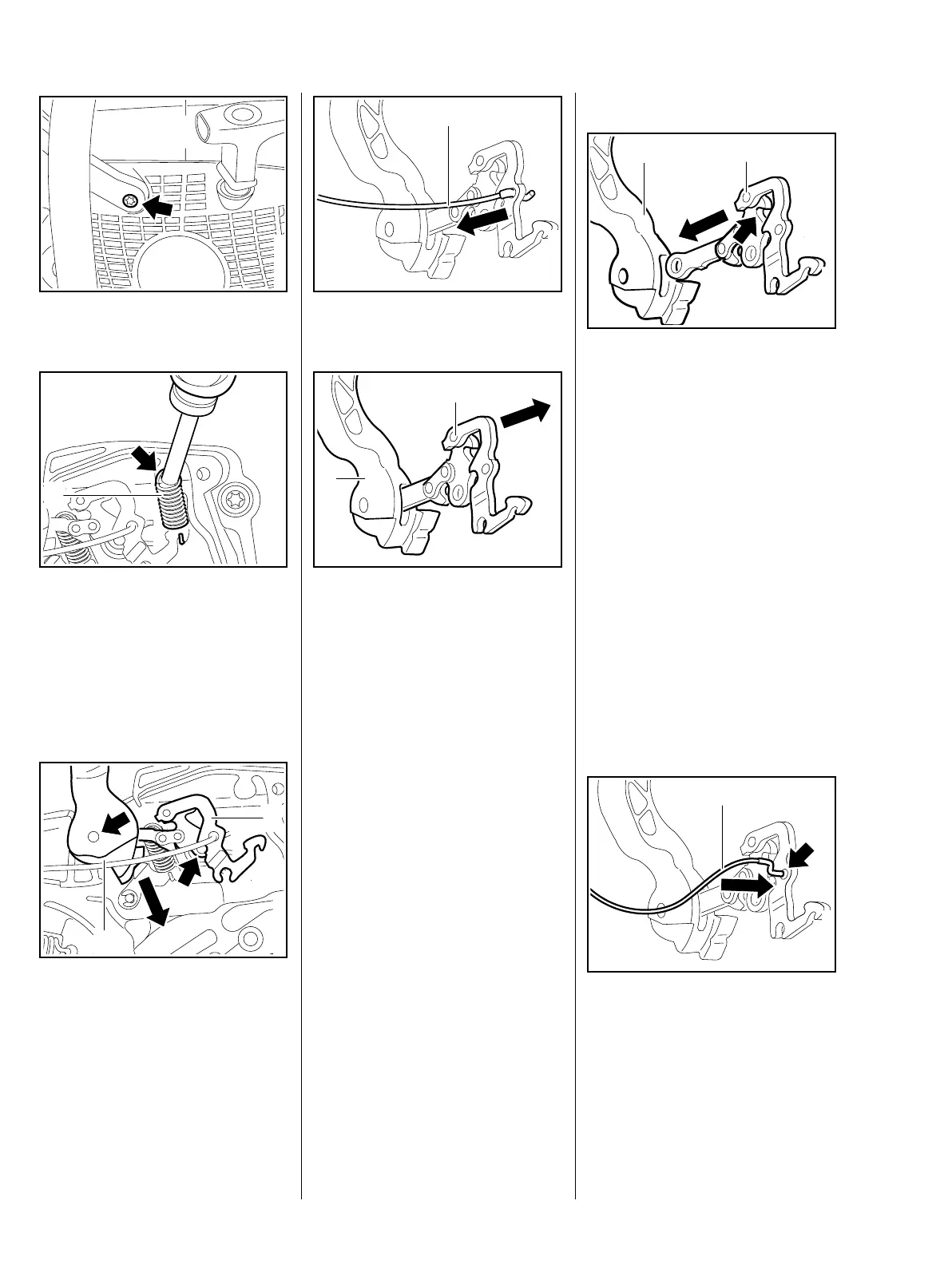

: Take out the screw (arrow).
: Use the assembly tool 1117 890
0900 to disconnect the brake
spring (1) from the anchor pin
(arrow).
– Remove the brake spring (1) from
the brake lever.
: Pull the hand guard (1) and brake
lever (2) off the pivot pins
(arrows) together.
– Remove the hand guard and
brake lever.
219RA054 TG
0001RA034 TG
1
1
2
0001RA035 TG
: Disconnect the brake cable (1).
: Take the brake lever (1) out of the
hand guard (2).
– Inspect the brake lever and hand
guard and replace if necessary.
1
0001RA036 TG
1
0001RA037 TG
2
Installing
– Inspect the pivot pins and replace
if necessary,
b 5.6
– Inspect the cam lever and
replace if necessary, b 5.5
– Clean all disassembled parts with
a little standard commercial
solvent-based degreasant
containing no chlorinated or
halogenated hydrocarbons.
: Hold the brake lever (2) so that
the brake spring attachment point
(arrow) is at the top.
: Push the brake lever (2) into the
recess in the hand guard (1) and
line up the holes.
: Fit the brake cable (1) in the hole
(arrow).
0001RA038 TG
1
2
0001RA040 TG
1
