30 MS 362, MS 362 C
Machines with QuickStop Super

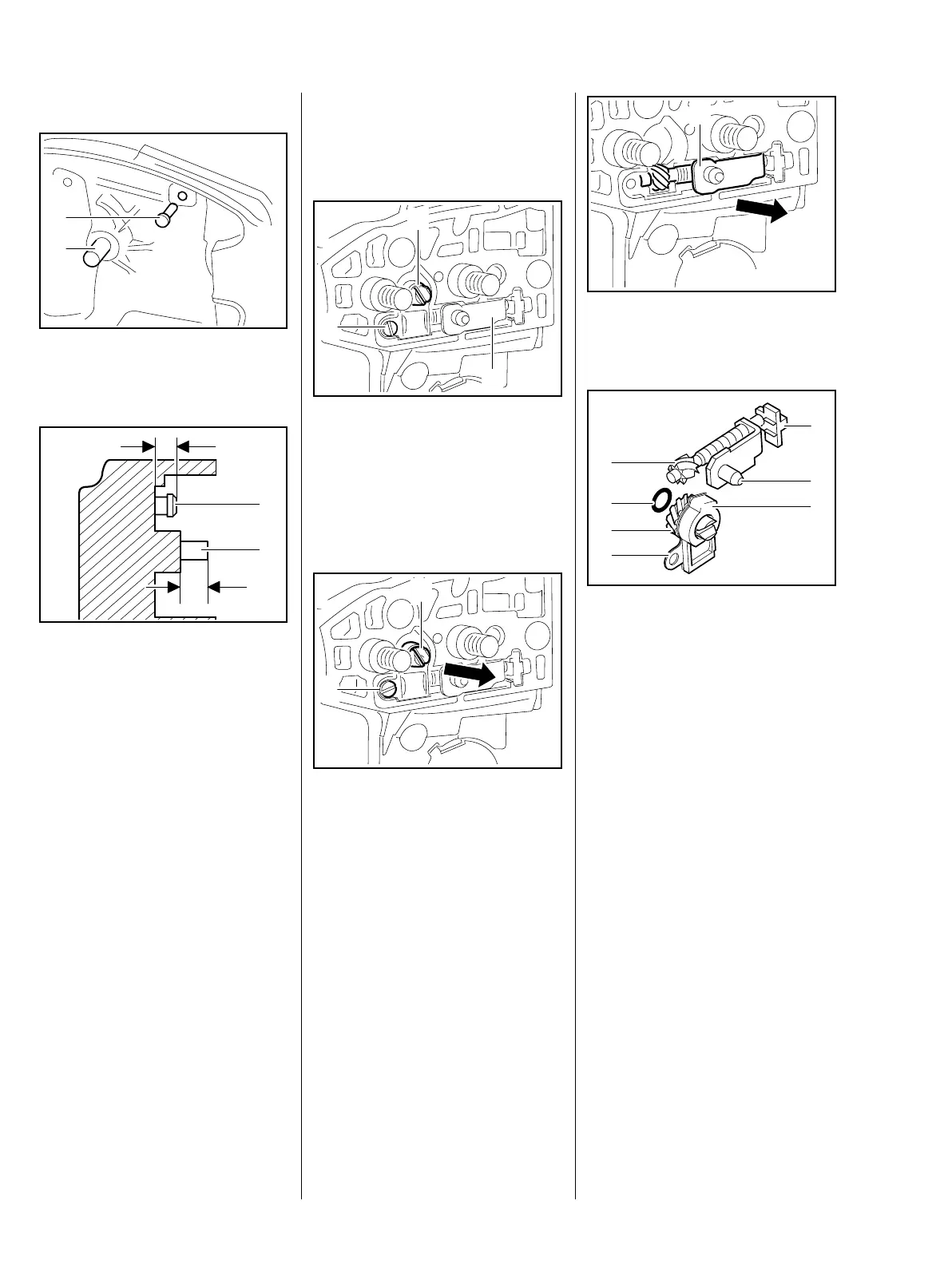

: Drive home the pins (5 and 6) as
specified below.
: Pin (5) c = about 5.9...6.1 mm
Pin (6) c = about 2.9...3.3 mm
– Reassemble all other parts in the
reverse sequence.
– Tightening torques, b 2.5
– Lubricate the brake and cam
levers, b 15
0001RA064 TG
6
5
a
b
0001RA065 TG
6
5
5.7 Chain Tensioner
– Troubleshooting, b 3.2
– Remove the side plate, b 5.2
: Turn the spur gear (2) clockwise
until the tensioner slide (1) butts
against the right-hand end and
the screw (3) is visible.
: Take out the screw (1).
– Pull out the cover plate (2) with
spur gear and support.
– If necessary, remove the O-ring.
0001RA498 TG
1
2
3
216RA061 TG
1
2
: Take out the tensioner slide (1)
with adjusting screw.
– Inspect the thrust pad (3),
support (4), tensioner slide (1),
cover plate (5), spur gear set (2)
and O-ring (6) and replace as
necessary.
216RA058 TG
1
0001RA069 TG
2
6
2
5
4
1
3
