18 MS 362, MS 362 C

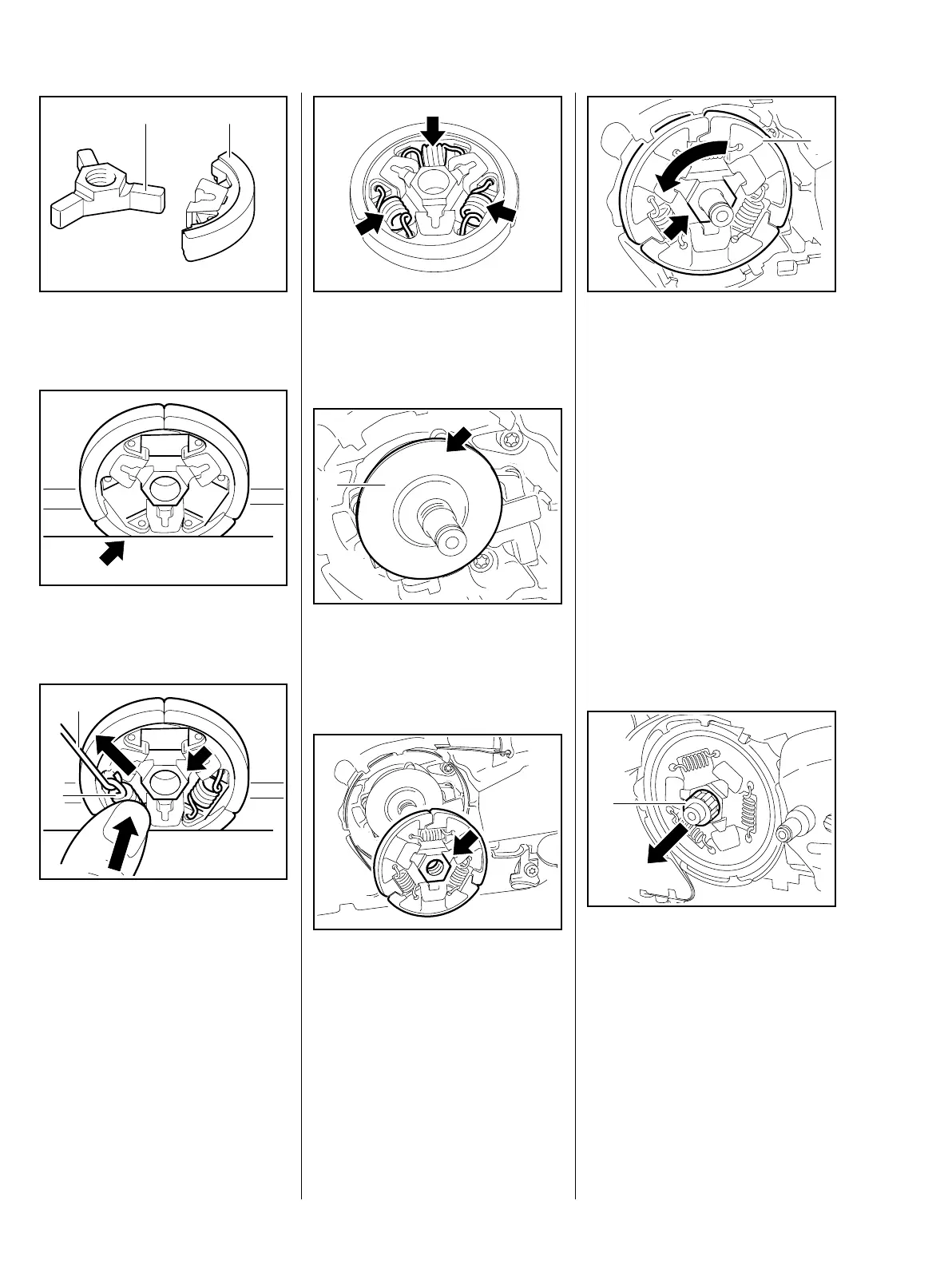

: Fit the clutch shoes (2) over the
arms (2).
: Clamp the clutch in a vise
(arrow).
Attach the springs on the side with
the raised hexagon (arrow).
: Attach one end of each spring (1)
to the clutch shoes.
: Use the hook (2) 5910 890 2800
to attach the other ends of the
springs and press them firmly into
the clutch shoes.
216RA012 TG
1 2
216RA013 TG216RA014 TG
2
1
: Check the clutch – all springs
(arrows) must be properly
attached.
Make sure washer (1) is in place.
Installed position is correct when
"TOP" (arrow) faces outwards.
: Position the clutch on the
crankshaft stub so that the raised
hexagon (arrow) faces outwards.
216RA015 TG
TOP
0001RA009 TG
1
TOP
0001RA010 TG
: Screw the clutch (1) on to the
crankshaft stub and tighten down
the hexagon (arrow) firmly – left-
hand thread.
– Tightening torques, b 2.5
– Remove the locking strip from the
cylinder.
– Reassemble all other parts in the
reverse sequence.
4.1 Clutch Drum
– Remove and install the clutch
drum, see instruction manual.
: Pull off the needle cage (1).
– Clean the needle cage and
crankshaft stub, b 15
– Lubricate the needle cage and
crankshaft stub, b 15
TOP
0001RA0111 TG
1
1
19RA035 TG
