Stihl MS 362 - Carburetor

120 MS 362, MS 362 C

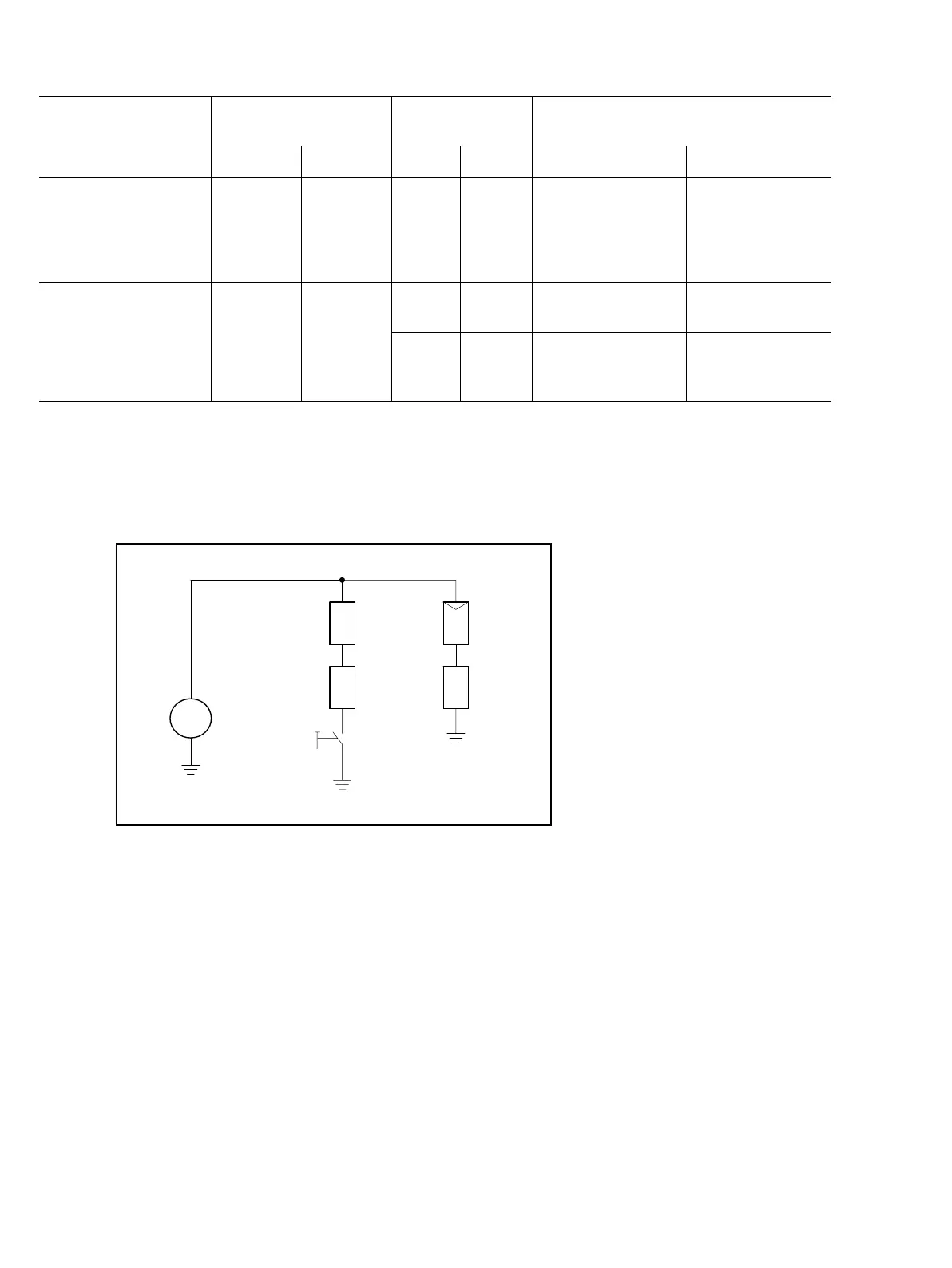

Circuit Diagram
Component Ohmmeter connection
(use either test lead)
Resistance Ω If faulty
Lead 1 Lead 2 Spec. Actual Cause Remedy
Generator Connector
on
generator
wire
Ground 0.6 0.5 - 1 Generator OK
- Break in wire,
generator damaged
Install new
generator
0 Short circuit –
damaged insulation
Repair insulation
G Generator
1 Rear handle
2 Handlebar
3 Heater switch
4 Thermostatic switch
5 Heating element (carburetor)
0001RA505 TG
G
1 4
5
2
3
