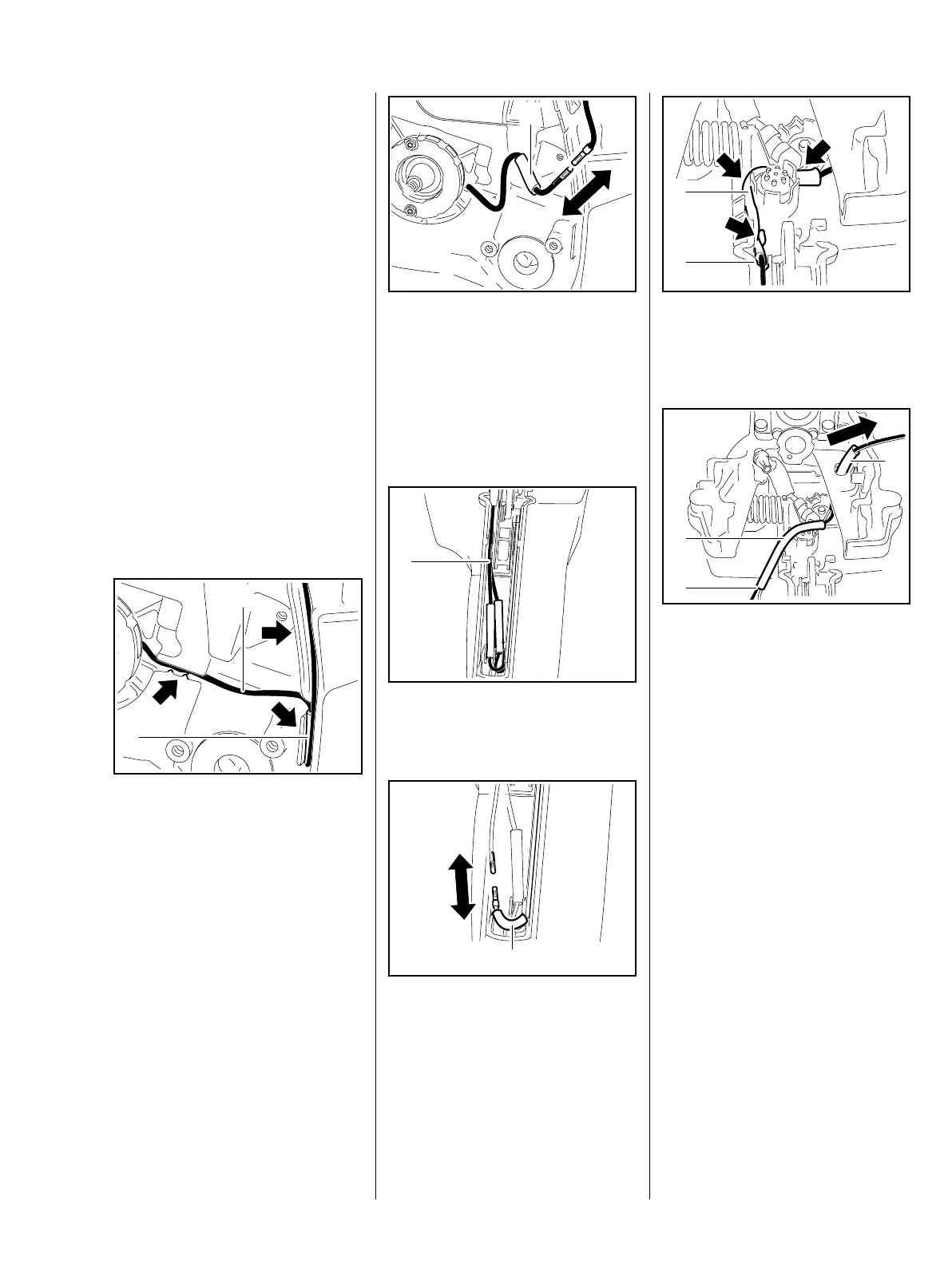

13.8 Wiring Harness
The wiring harness must be
replaced if it is faulty.
– Remove the shroud, b 6.4
– Remove the ignition module,
b 7.3
– Remove the carburetor, b 12.5
– Remove the thermostatic switch,
b 13.1.3
– Remove the carburetor carrier,
b 12.8
– Remove the interlock lever,
b 10.2, b 10.3
– Remove the filter base, b 12.3
: Pull the wire (1) and connector
(2) out of the guides (arrows).
0001RA385 TG
2
1
: Push back the insulating tube (1)
in the direction of the generator
wire and separate the pin and
socket connector.
– Remove the air guide shroud,
b 12.4
: Tug the wiring harness (1) a little
to find the right connector.
: Push the insulating tube (1) in the
direction of the heating element
wire and separate the pin and
socket connector.
0001RA247 TG
1
0001RA476 TG
1
0001RA241 TG
1
: Pull the wires (1) and the
insulating tube (2) out of the
guides (arrows).
: Pull the wiring harness (1) out of
the insulating tube (2).
: Pull the insulating tube (3) off the
wiring harness.
– Check the wiring harness and
insulating tubes and replace if
necessary.
0001RA243 TG
1
2
0001RA389 TG
1
3
2

Stihl MS 362 Specifications

General

Displacement	59.0 cm³
Powerhead Weight	5.6 kg
Chain pitch	3/8"
Vibration level (left/right)	3.5/3.5 m/s²
Weight	5.6 kg
Guide Bar Length	40-50 cm (16-20 in)
Oil Capacity	325 cc
Weight (without cutting equipment)	5.6 kg
Oil tank volume	325 cc
