80 MS 362, MS 362 C

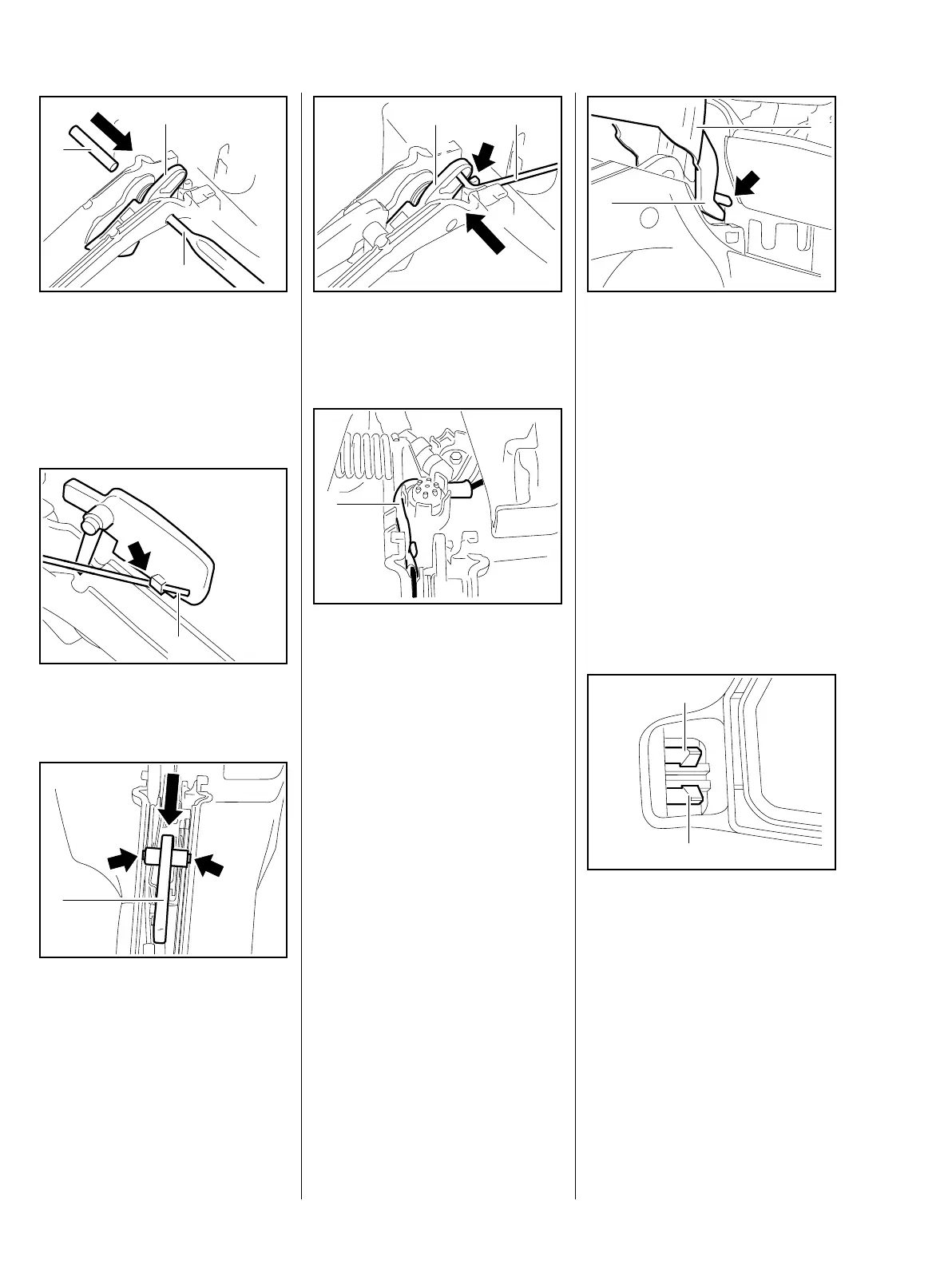

: Use a drift (2) to center the
throttle trigger (1).
: Drive home the pin (3) until it is
recessed by same amount at
both sides.
: Attach the torsion spring (2) to
the interlock lever (arrow).
: Push the interlock lever (1) into
its pivot mounts (arrows) until it
snaps into position – check that
torsion spring is in position.
The interlock lever (1) may pop out.
0001RA283 TG
2
3
1
0001R284 TG
1
1
0001RA285 TG
: Attach the throttle rod (1) to the
throttle trigger (2) and fit it in the
guide (arrow).
Before installing the handle
molding, check that the insulating
tube (1) is properly positioned.
2
0001RA286 TG
1
0001RA491 TG
1
: Engage lugs (2) at front end of
handle molding (1) in the
recesses (arrow).
– Push down the handle molding
(1) until it snaps into position.
– Check operation.
– Reassemble all other parts in the
reverse sequence.
– Tightening torques, b 2.5
10.3 Throttle Trigger/Interlock
Lever – QuickStop Super
: Push the tabs (1) apart and
through the tank housing.
0001RA287 TG
2
1
1
1
0001RA274 TG
