72 MS 362, MS 362 C

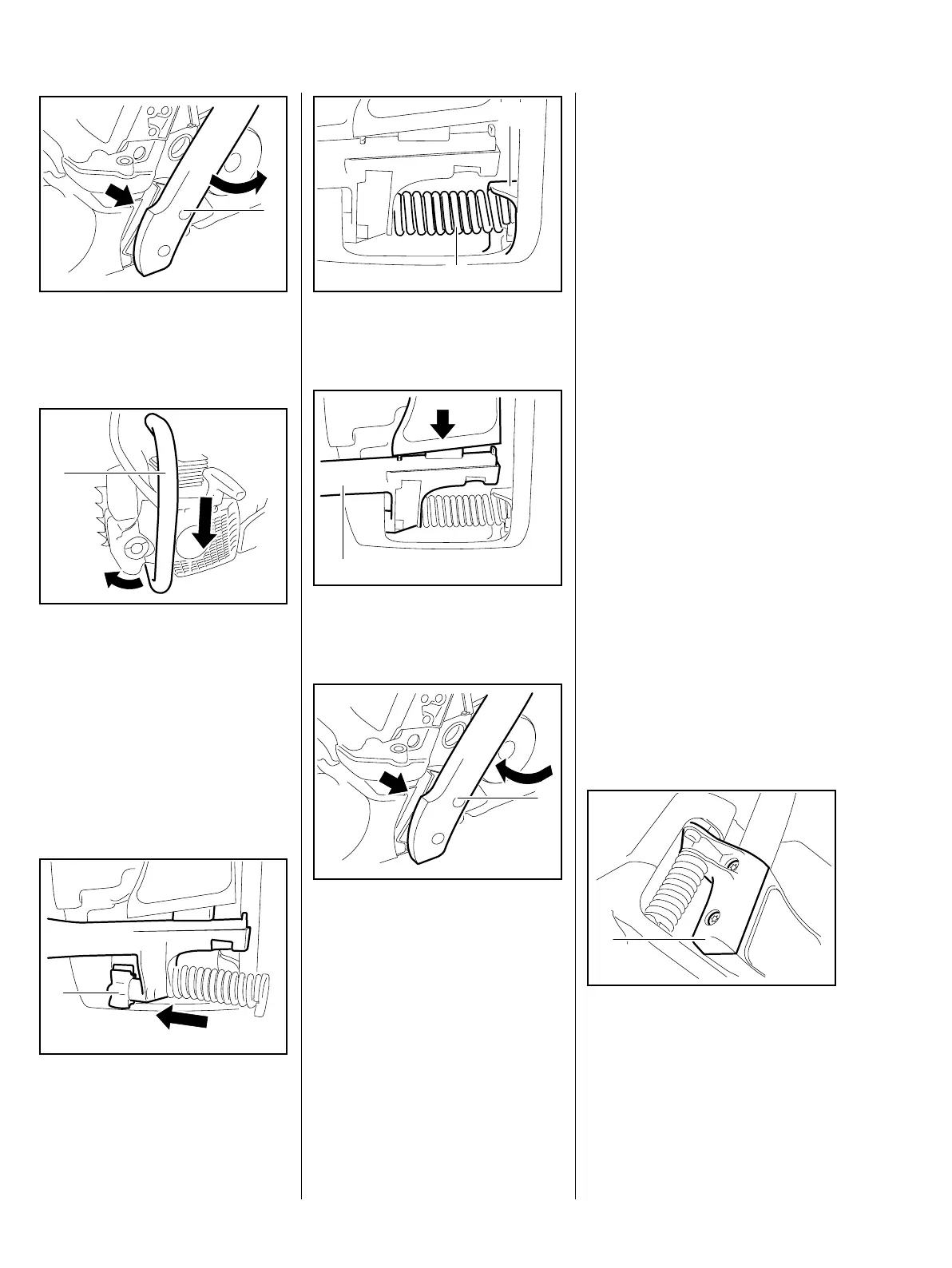

: Ease the handlebar (1) sideways
and take it out of the guide
(arrow).
: Push the handlebar (1) out of the
lower guide.
– Remove the handlebar (1), check
it and replace if necessary.
– Check the annular buffer and
replace it if necessary, b 9.2.1
Installing
: Push the handlebar, buffer (1)
first, into the crankcase.
0001RA231 TG
1
0001RA232 TG
1
0001RA233 TG
1
: Push the AV spring (1) into its
seat (2).
: Position the handlebar (1)
against the guide (arrow).
: Ease the handlebar (1) sideways
and place it in the guide (arrow).
– Insert the screws and tighten
them down firmly.
– Reassemble all other parts in the
reverse sequence.
– Tightening torques, b 2.5
0001RA222 TG
2
1
0001RA222 TG
1
0001RA235 TG
1
9.7 Handlebar with Heating
Removing
The handlebar on this version is
equipped with a heating system –
the electrical wires have to be
disconnected.
– Troubleshooting, b 13.7.1
– Remove the shroud, b 6.4
– Remove the fan housing, b 8.2
– Remove AV spring from the oil
tank, b 9.2.1
– Remove AV spring from
handlebar, b 9.4.1
– Remove the carburetor carrier,
b 12.8
– Remove the ignition module,
b 7.3
– Remove the interlock lever,
b 10.2
– Remove the throttle rod,
b 10.3.4
– Remove the bracket (1), b 9.2.1
0001RA236 TG
1
