110 MS 362, MS 362 C
– Fit the wire (1) – the crimped side
of the terminal must point down.
: Tighten down the screw (2) firmly.
– Reassemble all other parts in the
reverse sequence.
– Tightening torques, b 2.5

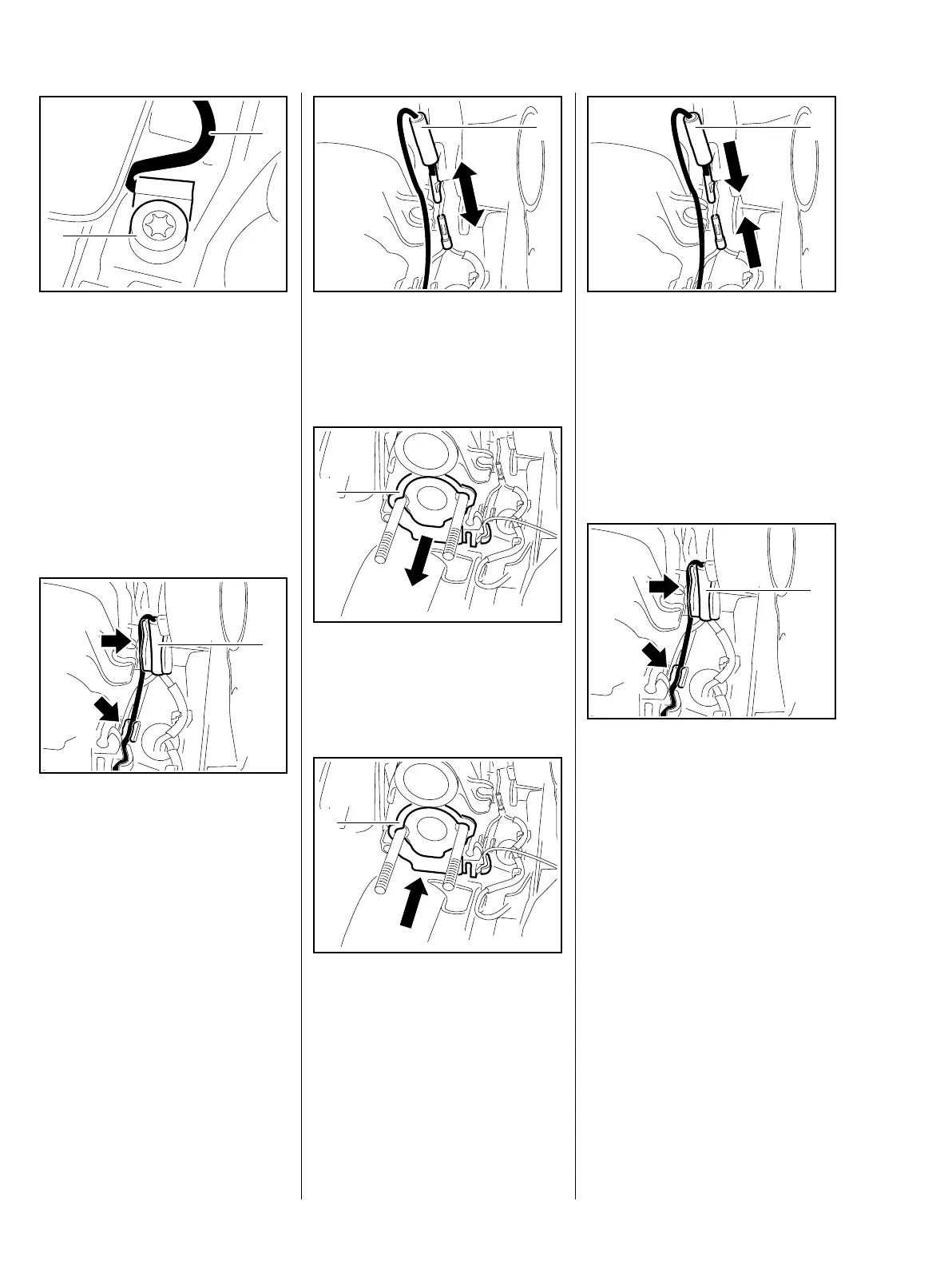

13.1.3 Thermostatic Switch
– Remove the carburetor, b 12.5
: Pull the connector (1) and wire
out of the guides (arrows).
0001RA499 TG
2
1
0001RA427 TG
1
: Push the insulating tube (1) in the
direction of the thermostatic
switch and separate the pin and
socket connector.
: Pull off the thermostatic switch
(1).
Installing
: Fit the new thermostatic switch
(1).
0001RA428 TG
1
0001RA429 TG
1
0001RA431 TG
1
: Reconnect the pin and socket
connector.
– Push the insulating tube (1) over
the connector.
To reduce the risk of a short circuit,
make sure the insulating tube
completely covers the connector.
: Push the wire and connector (1)
into the guides (arrows) as far as
stop.
– Reassemble all other parts in the
reverse sequence.
– Tightening torques, b 2.5
– Check operation.
0001RA432 TG
1
0001RA427 TG
1
