90 MS 362, MS 362 C

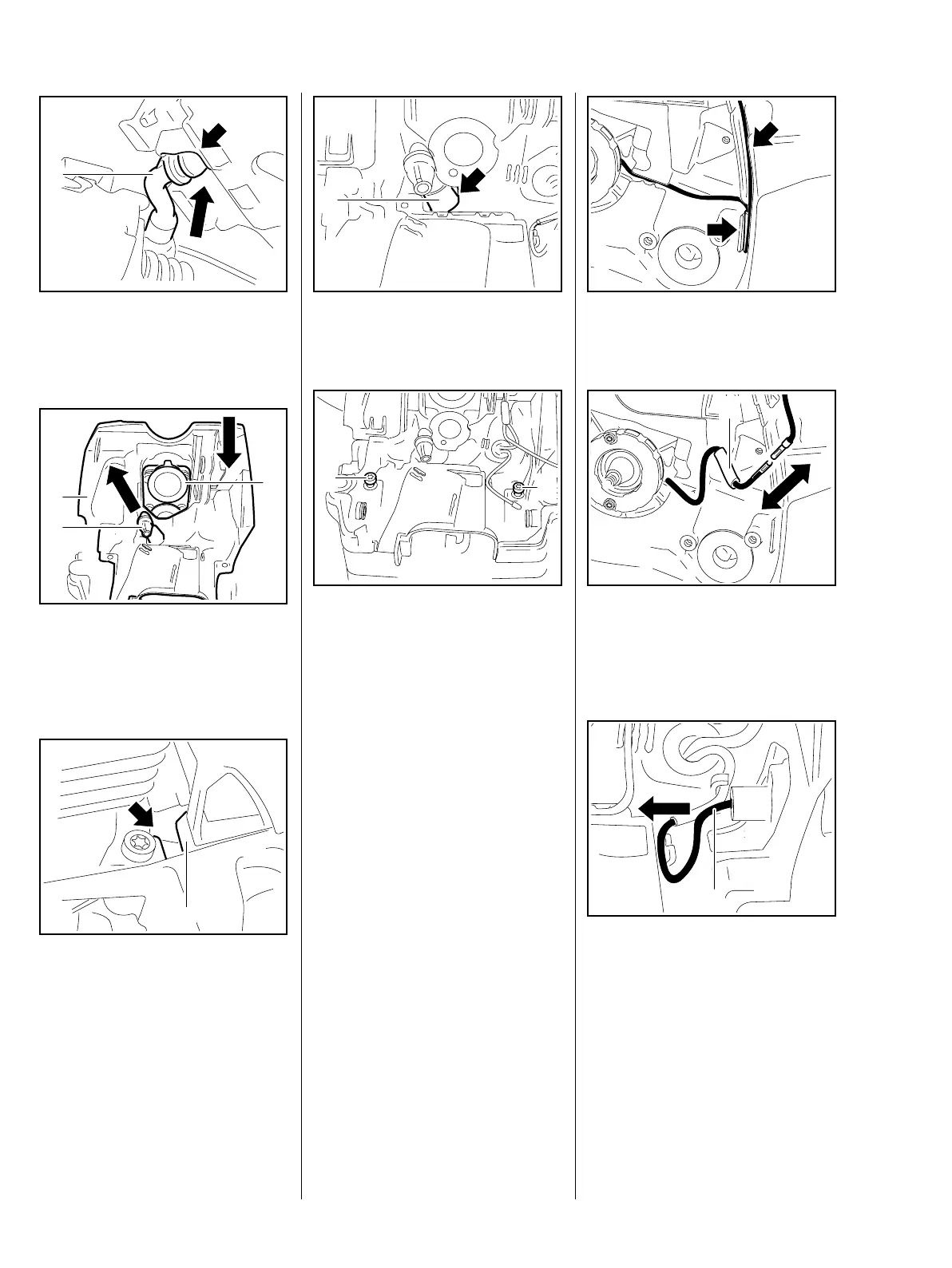

: Push the fuel hose (1) through
the opening (arrow) on the
underside of the air guide shroud.
: Fit the air guide shroud (1) over
the intake manifold (2), re-
positioning the fuel hose (3) at
the same time.
: Push the air guide shroud's lugs
(1) between the ribs (arrow) on
the crankcase.
– Push the air guide shroud fully
home.
0001RA336 TG
1
0001RA337 TG
1
2
3
0001RA338 TG
1
: Make sure the protective tube (1)
covers the opening (arrow).
: Fit and tighten down the screws
(1) firmly.
Versions with Handle and
Carburetor Heating
– Remove the filter base, b 12.3
– Remove the throttle rod,
b 10.3.4
– Remove the carburetor heating
system, b 13.1.2
– Remove the carburetor, b 12.5
– Remove the carburetor carrier,
b 12.8
– Remove the heater switch,
b 13.4
0001RA339 TG
1
0001RA340 TG
1
1
: Pull the generator wire out of the
guides (arrows).
: Push back the insulating tube (1)
in the direction of the generator
and separate the pin and socket
connector.
: Pull the wire (1) with connector
sleeve out of the heater switch.
0001RA459 TG0001RA247 TG
1
0001RA341 TG
1
