21MS 362, MS 362 C

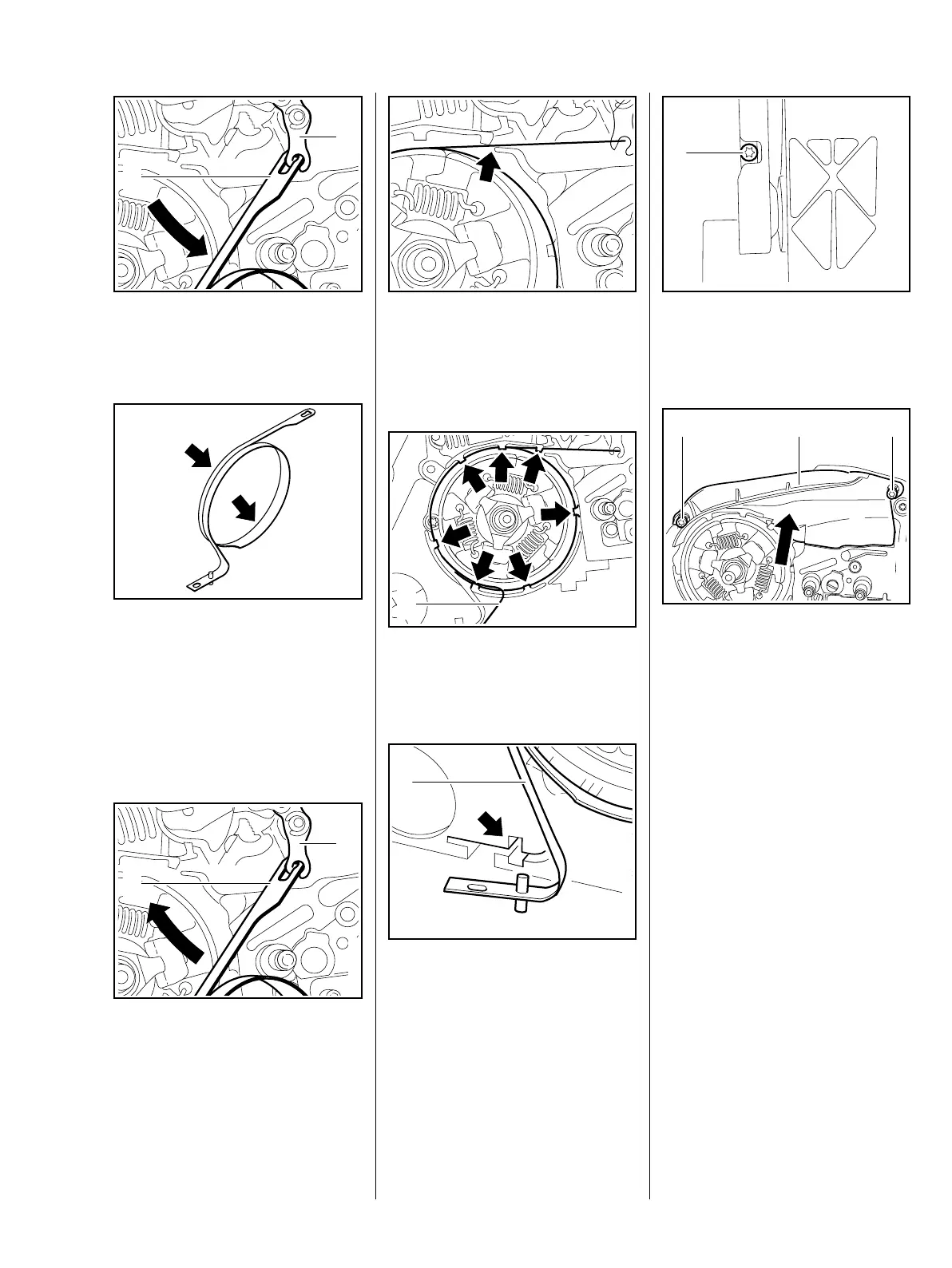

: Turn the brake band (1) to one
side and disconnect it from the
brake lever (2).
Install a new brake band if there are
noticeable signs of wear (large
areas on inside diameter and/or
parts of outside diameter – arrows)
and its remaining thickness is less
than 0.6 mm.
Installing
: Hold the brake band (1)
sideways, attach it to the brake
lever (2) and then swing it in the
direction of its seat.
1
0001RA477 TG
2
219RA049 TG
1
0001RA478 TG
2
: Position the brake band (1) it the
guide (arrow) first.
– Disengage the chain brake.
: Push the brake band (1) over the
guide lugs (arrows) and into its
seat.
: Push the brake band (1) into
its seat (arrow) as far as stop.
219RA051 TG
219RA047 TG
1
0001RA021 TG
1
: Fit the screw (1) on the underside
of the machine and tighten it
down firmly.
: Place the cover (1) in position.
: Fit and tighten down the screws
(2) firmly.
– Tightening torques, b 2.5
– Install the clutch drum,
b 4.1
– Check operation, b 5.1
– Reassemble all other parts in the
reverse sequence.
1
0001RA019 TG
0001RA015 TG
1 22
