38 MS 362, MS 362 C

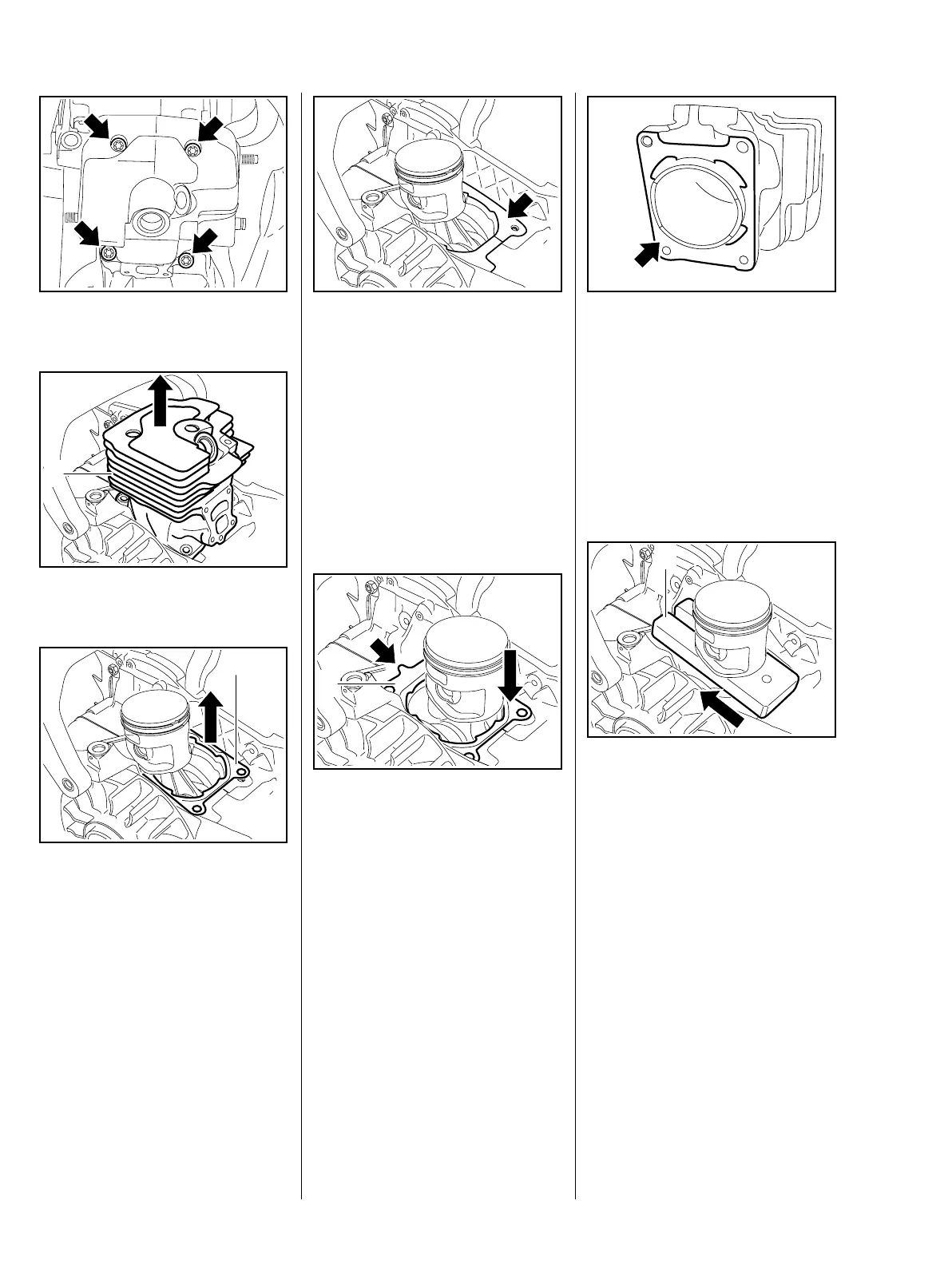

: Take out the screws (arrows).
: Carefully lift the cylinder (1) away.
: Remove the cylinder gasket (1).
0001RA102 TG0001RA103 TG
1
0001RA104 TG
1
: Inspect and clean the sealing
face (arrow), b 15
The sealing face must be in perfect
condition. Always replace
components with damaged sealing
faces, b 3.7.
Always use a new cylinder gasket
when re-installing the cylinder.
Installing
– Line up the cylinder gasket (1) so
that the tab (arrow) points
towards the spiked bumper.
: Place the cylinder gasket (1) in
position.
0001RA105 TG0001RA106 TG
1
: Inspect and clean the sealing
face (arrow) and remove any
gasket residue.
– Check the sealing face on the
cylinder exhaust port.
The sealing faces must be in perfect
condition. If the sealing faces are
damaged, install a new cylinder.
: Slide the wooden assembly block
(1) 1108 893 4800 between the
piston and crankcase.
Take care not to damage the
cylinder gasket.
0001RA107 TG0001RA108 TG
1
