Zoom Option Operation Guide
33
DRIVE WHEEL OPERATION
1. Unplug the power cord from the wall socket and
secure the cord sufficiently to prevent entangle-
ment while the unit is in motion. The drive wheel
will not operate if the power cord is plugged into the
wall socket.

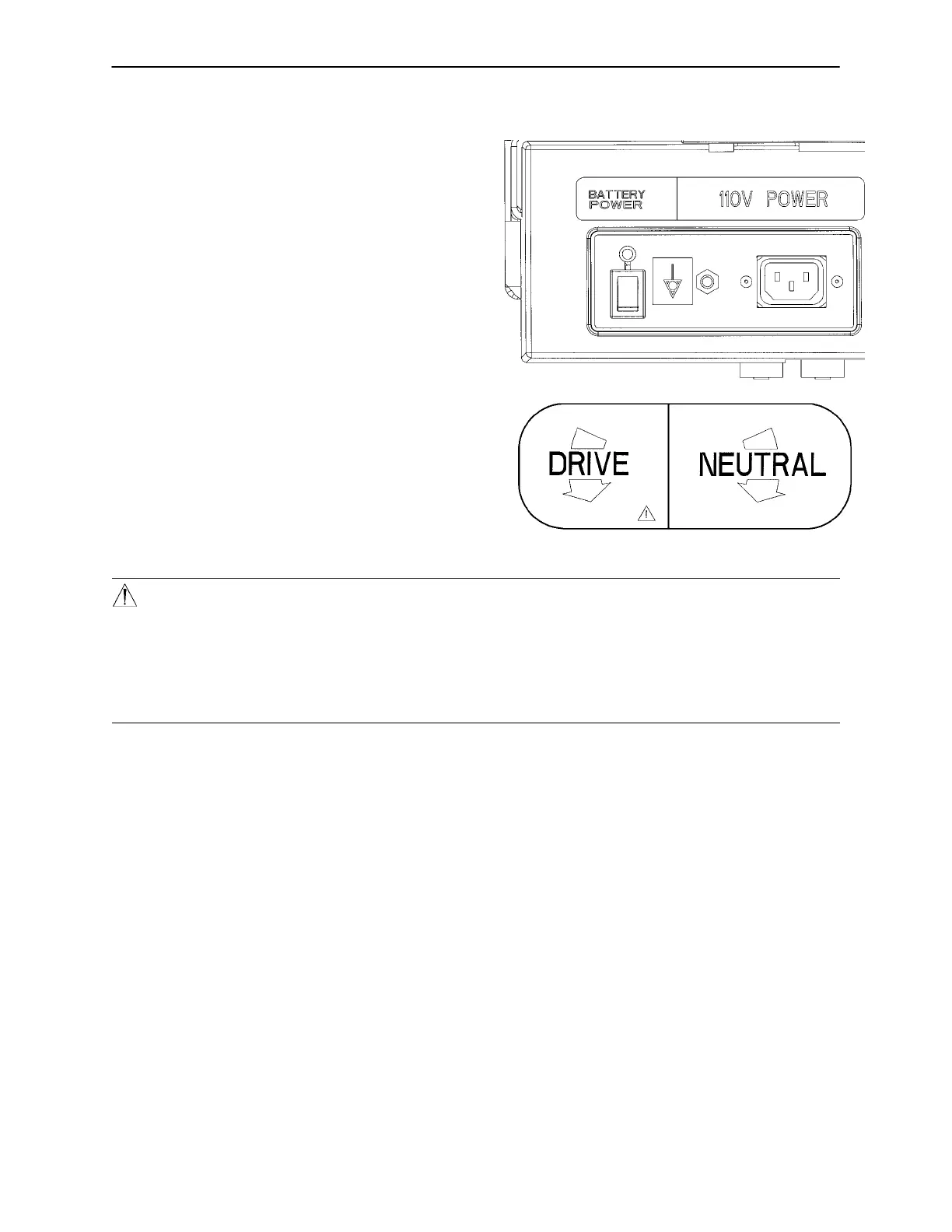

2. Activate the power to the drive wheel by placing
the battery power switch located at the left side of
the head end of the litter in the “ON” position. The
LED will illuminate.
3. Engage the drive wheel by rotating the pedal lo-
cated at the head end to the left as shown on the
label. To place the drive wheel in the neutral posi-
tion, rotate the pedal to the right.
4. Release the brakes. The drive system will not
function while the brakes are engaged. The “Re-
lease Brakes” LED on the head end control panel
will be illuminated if the brakes are engaged while
the battery power switch is on.
WARNING
USE CAUTION while maneuvering the unit with the drive wheel activated. Always ensure there are no ob-
stacles near the unit while the drive wheel is activated. Injury to the patient, user or bystanders or damage
to the unit or surrounding equipment could occur if the unit collides with an obstacle.
Use caution when transporting the unit down halls, through doors, in and out of elevators, etc. Damage to
the siderails or other parts of the unit could occur if the unit comes in contact with walls or door frames.
