Bed Circuit Boards

50

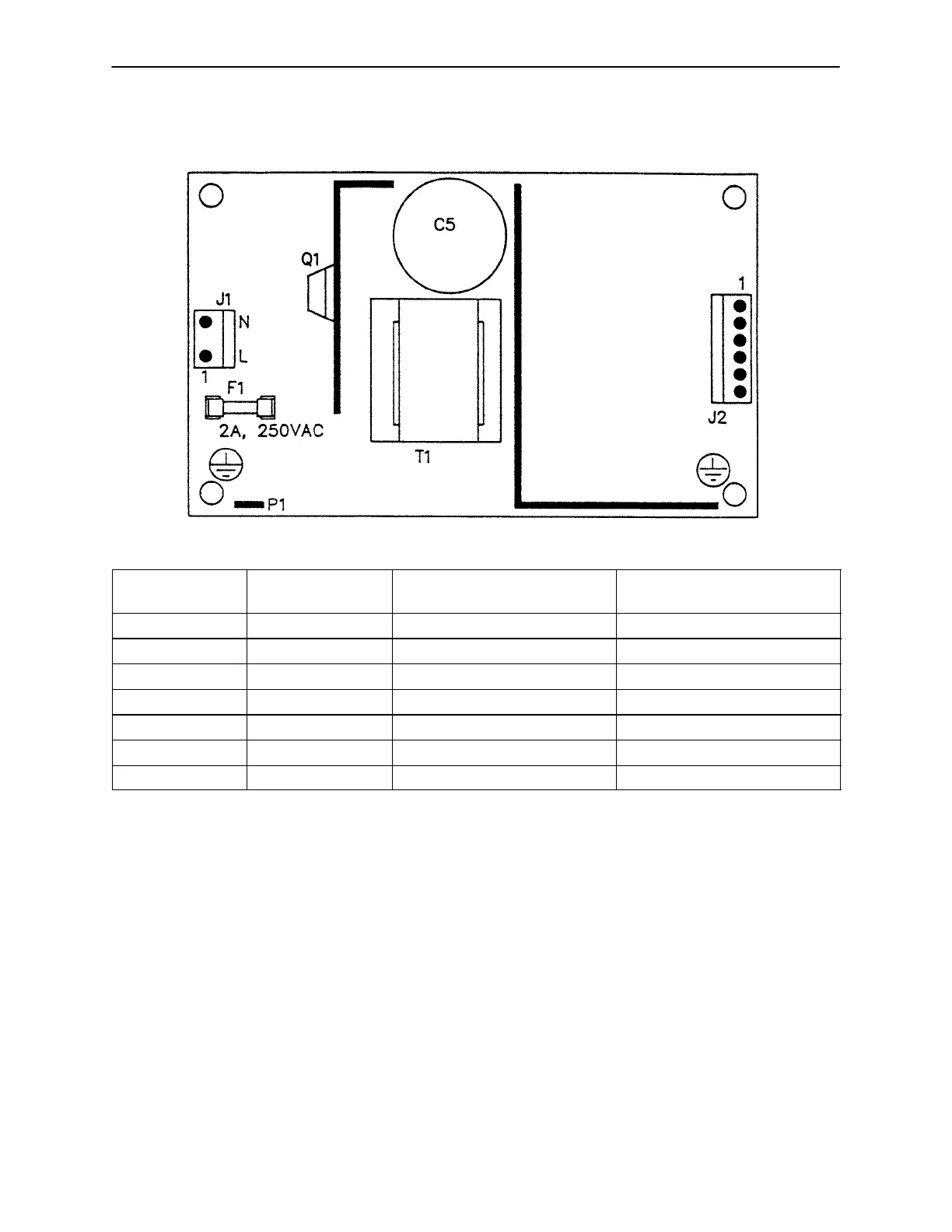

POWER SUPPLY − P/N 59−157

CONNECTOR

LOCATION

VOLTAGE POSITIVE LEAD NEGATIVE LEAD

J1 110V Pin 1 Pin 2

J2 12V Pin 1 Pin 4 or 5

J2 5V Pin 2 Pin 4 or 5

J2 5V Pin 3 Pin 4 or 5

J2 GND Pin 4 Pin 4 or 5

J2 GND Pin 5 Pin 4 or 5

J2 −12V Pin 6 Pin 4 or 5
