Bed Circuit Boards
51

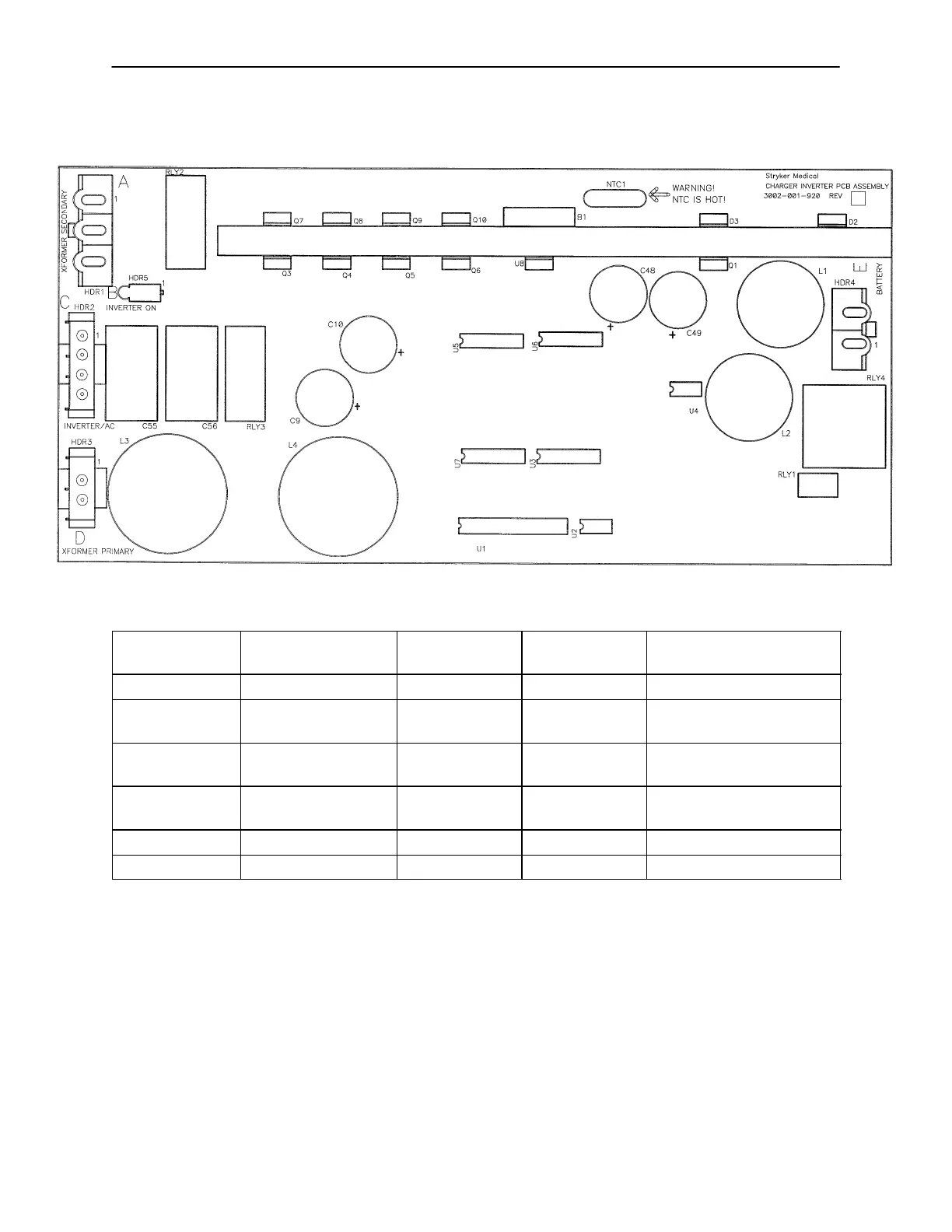

ZOOMR OPTION INVERTER/CHARGER BOARD − PART NUMBER 3002−1−30
CONNECTOR
LOCATION
VOLTAGE POSITIVE
LEAD
NEGATIVE
LEAD
DESCRIPTION
HDR 4 26 VDC Pin 2 Red Pin 1 Black From Battery − unplugged
HDR 1 22 VAC Pin 3 Red Pin 2 Secondarys from
Transformer − plugged in
HDR 1 34 VAC Pin 1 Green Pin 2 Brown Secondarys from
Transformer − plugged in
HDR 2 110−140 VAC Pin 4 Brown Inverter Module
Pin 3 Blue
Unplugged
HDR 2 110 V Pin 2 Brown Pin 1 Blue From Wall − plugged in
HDR 3 120 V Pin 2 Plug−In Pin 1 Wall Voltage − plugged in
To Next Page
