Procedure
S70) on the CPY controller to the right (M26 MAN. DRAIN).
- The steam humidifier is drained manually.
4. Switch off the unit via the master switch.
5. Secure the air conditioning unit so it cannot inadvertently be switched back on.
7. Shut off the water supply to the steam humidifier.
8. Wait until the fan has come to a complete stop.

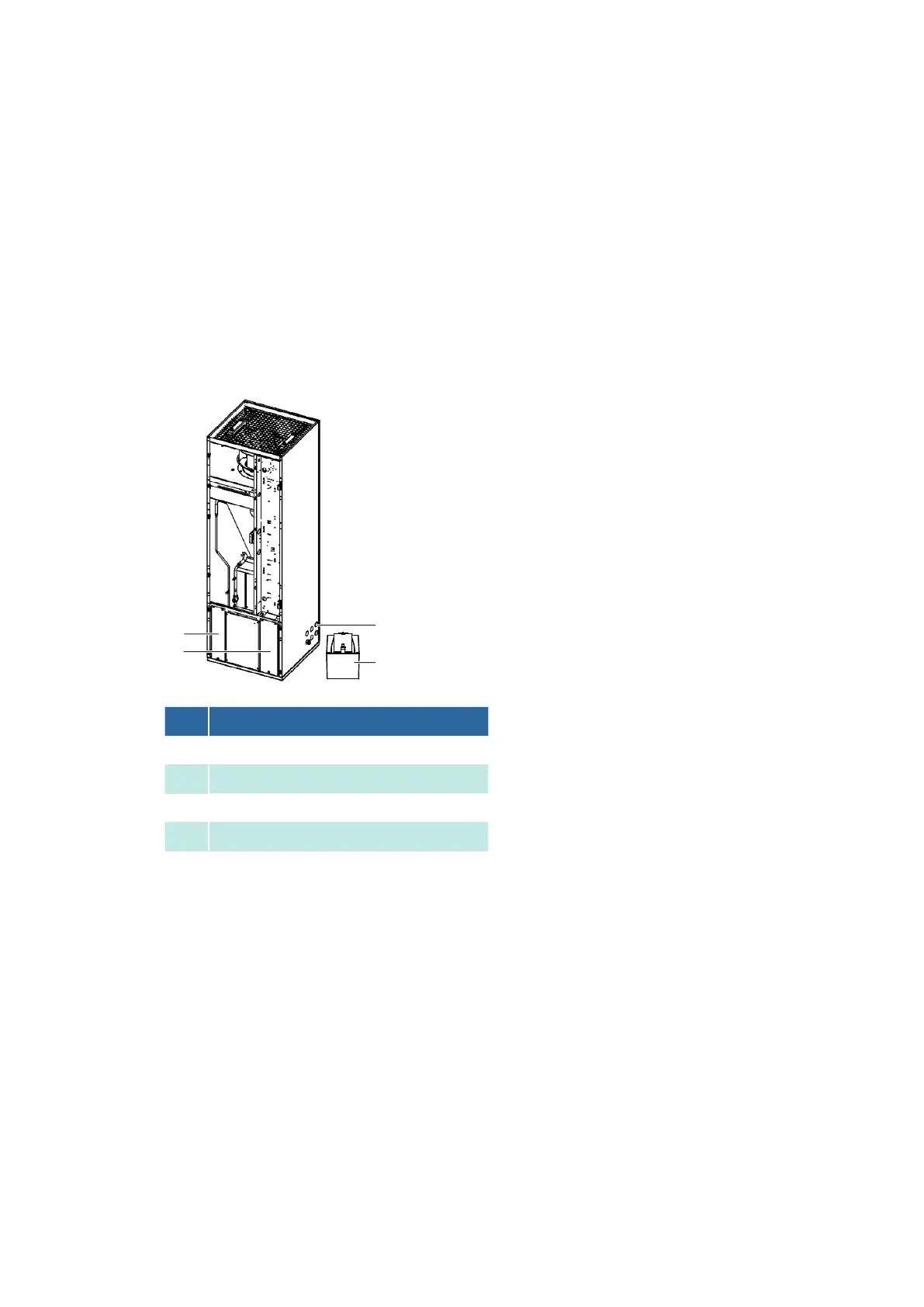

No. Description
1
Left cover panel
2
Holes for connections
3
Condensate pump
4
Right cover panel
9. Remove the central protective grill.
10. Remove the lower front panel.
11. Remove the right-hand cover panel.
12. Position the condensate pump next to the holes for the connections.
13. Secure the condensate pump so it cannot tip over.
1
4
3
2
