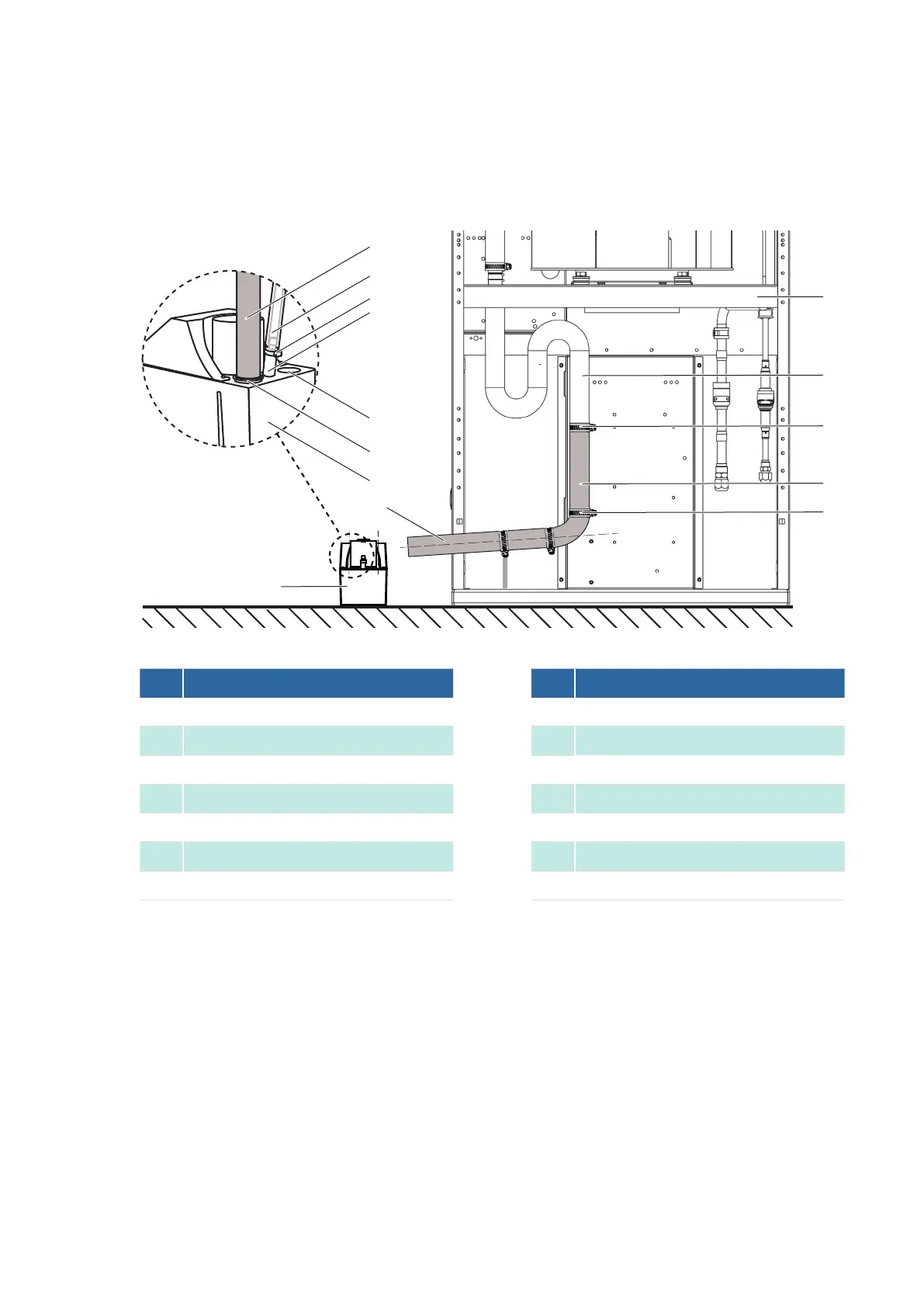

14. Clean the pipe system, consisting of the condensate pipe, drainage pipe and pressure pipe, before con-
necting the condensate pump to the EC Tower.
15. Connect the drainage pipe to the condensate drain of the EC Tower.
2
3
4
5
6
12
13
14
1
11
10
9
8
7
No. Description
8
Drainage pipe
9
Condensate pump
10
Connection 1 without cover for drainage pipe
11
Connection 2 with cover for drainage pipe
12
Pressure fitting
13
Cable tie
14
Pressure pipe of condensate pump
No. Description
1
Drainage pipe
2
EC Tower
3
Condensate pipe
4
Hose clamp
5
Drainage pipe
6
Hose clamp
7
Condensate pump
16. Route the drainage pipe through a hole to the outside.
17. Connect the drainage pipe to the first connection of the condensate pump without a cover.
- Two drainage pipes can be connected to the condensate pump.
18. Connect the pressure pipe of the condensate pump to the pressure fitting.
19. Fasten the pressure pipe to the pressure fitting using a cable tie.
