93 © STULZ GmbH – all rights reserved EN/01.2019/G22
ec tower technical manual
Other mounting options (e.g. louvers)
If louvers shall be installed beneath the unit, these must be first mounted onto the adapter plate.
-
tively on the rear side (construction size 1).
Positioning of the A/C unit on the floor stand
the floor stand from the front (under no circumstances diagonally).
square steel bars) on the stand to avoid a
slip-off.
the securing aids and set down the unit.
unit.
when distance Z > 100 mmwhen distance Z < 100 mm

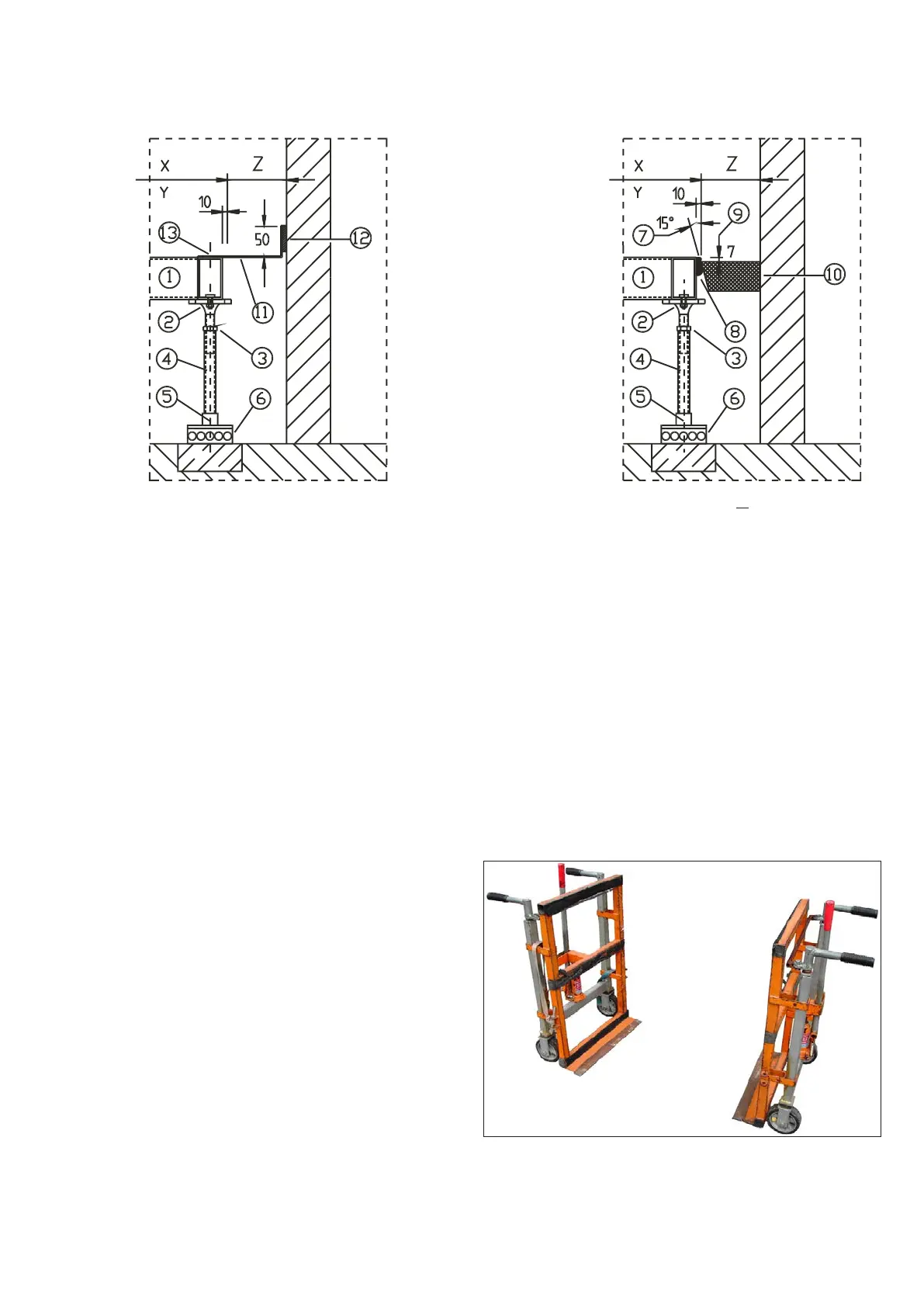

Detail of raised floor connection
Raised floor stand
Support pipe
Support base
Raised floor cut out angle
Continuous seal profile
(use closed-cell material only)
Before unit installation
Raised floor plate
Permanently elastic seal
Fixing
1
2
3
4
5
6
7
8
9
10
11
12
13
