Chapter 9 Storage Devices 9-11

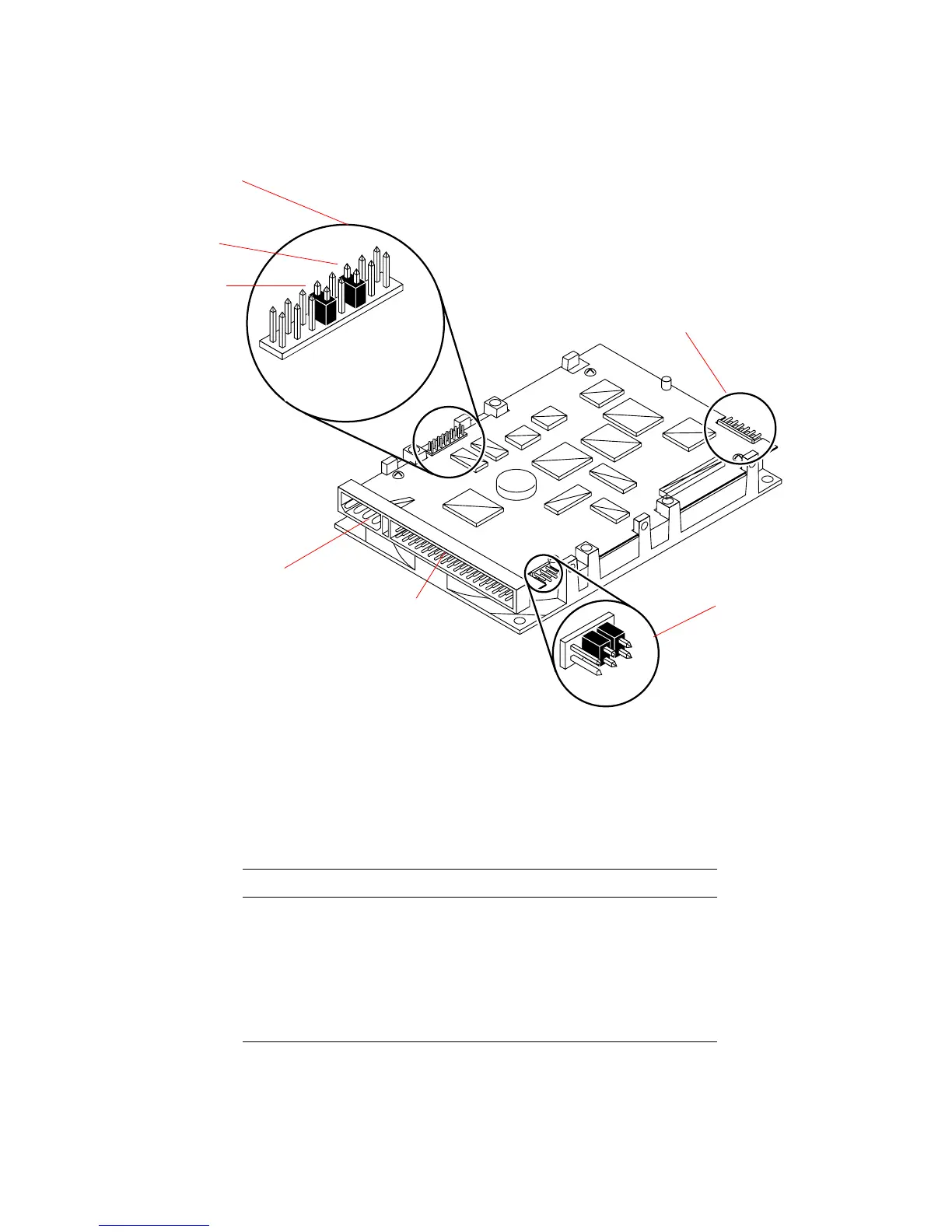

FIGURE 9-8 Jumper Settings for Seagate 1.0-Gbyte Drive
TABLE 9-3 describes the 1.0-gigabyte Seagate drive’s factory jumper settings.
TABLE 9-3 1.0-Gbyte Seagate Drive Configuration Jumpers
Abbreviation Description Factory Set
SS (Reserved) No
DS Delayed start No
ME Motor enable Yes
WP Write protect No
PE Parity enable Yes
TP
SS
PE
WP
ME
DS
RS
TP
A1
A0
A2
Power
Data
connector
connector
SCSI ID jumpers
SCSI address set to 3,
Drive configuration jumpers
Manufacturing header pins
TP
TP
TE
PE
WP
ME
DS
SS
Motor enable
Parity enable
(ME jumpered)
(PE jumpered)
(A0 and A1 jumpered)
(not used)
