9-10 SPARCclassic/SPARCclassic X/SPARCstation LX Service Manual • November 1993

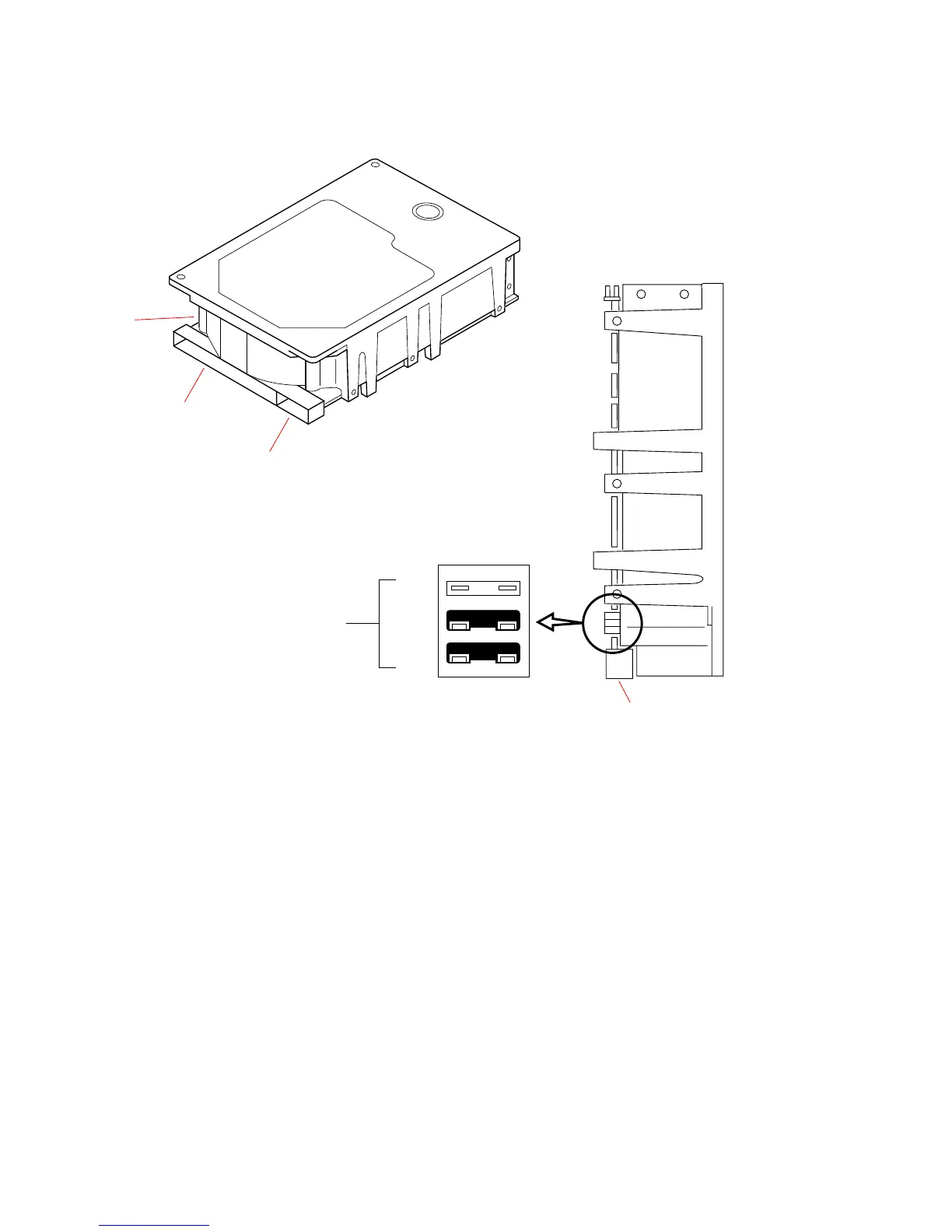

FIGURE 9-7 Jumper Settings for 1.0-Gbyte Drive (Part 370-1546)
A0
A1
A2
A0
A1
A2
Power
Data
connector
Power and
data connectors
connector
SCSI ID
jumpers
SCSI device
address
