Chapter 9 Storage Devices 9-17

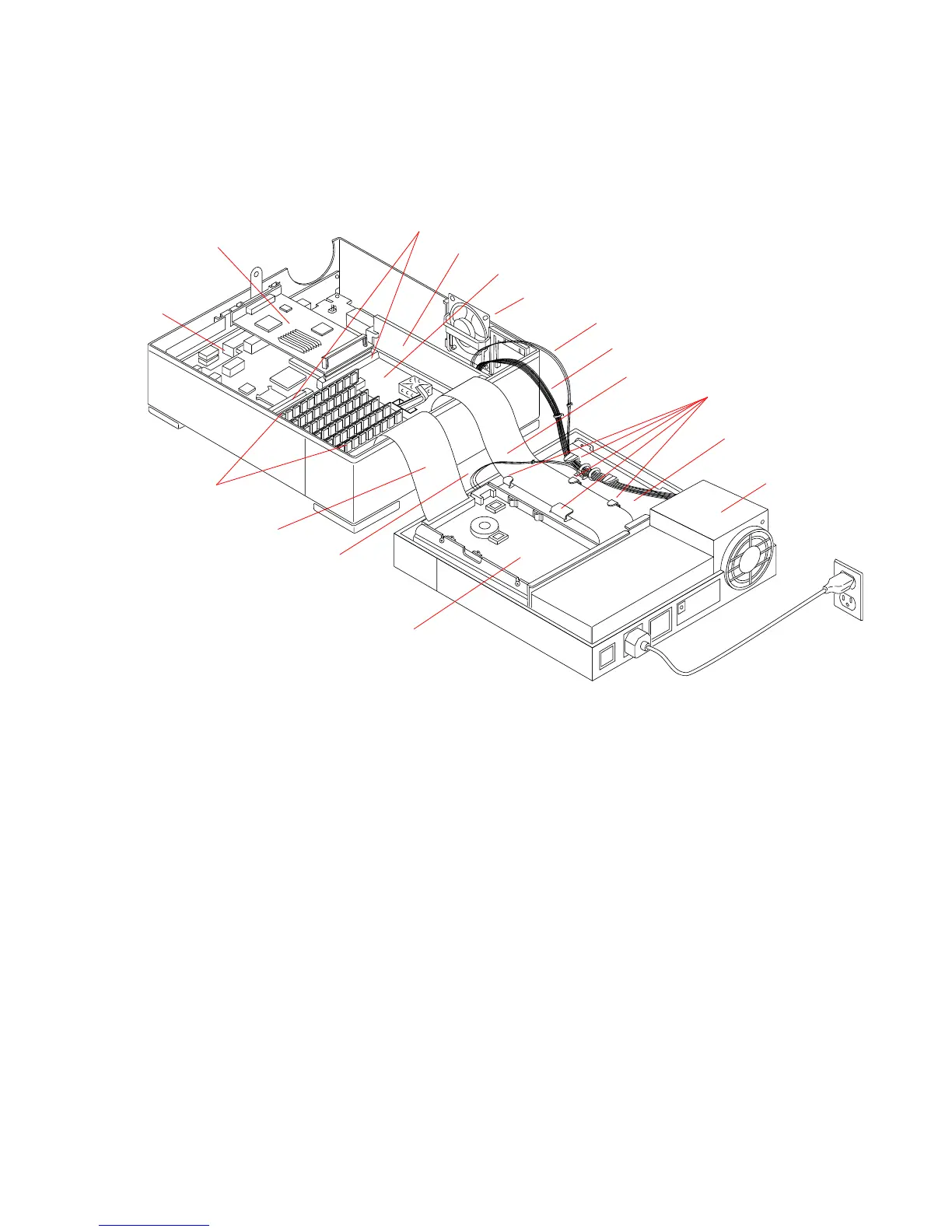

FIGURE 9-12 Open View of System Unit
4. Loosen the captive Phillips-head screw that secures the disk drive mounting
bracket to the system chassis.
See
FIGURE 9-13 and FIGURE 9-14 for the screw’s location.
Lift up the bracket as you loosen the screw until the bracket disengages from the
unit top.
UNIT BOTTOM
Main logic board
SBus slotsSBus card
Speaker/Power LED assembly
Diskette drive data cable (optional)
Main logic power cable
Diskette drive
Power supply
DSIMMs
Hard drive data cable
Hard drive
UNIT TOP
VSIMM module (option on SPARCstation LX only)
System
Hard drive power cable
(optional)
(system option)
(fully populated)
I/O board
Keyboard soft power-on cable
Cable management
guides
To Next Page
