9-18 SPARCclassic/SPARCclassic X/SPARCstation LX Service Manual • November 1993

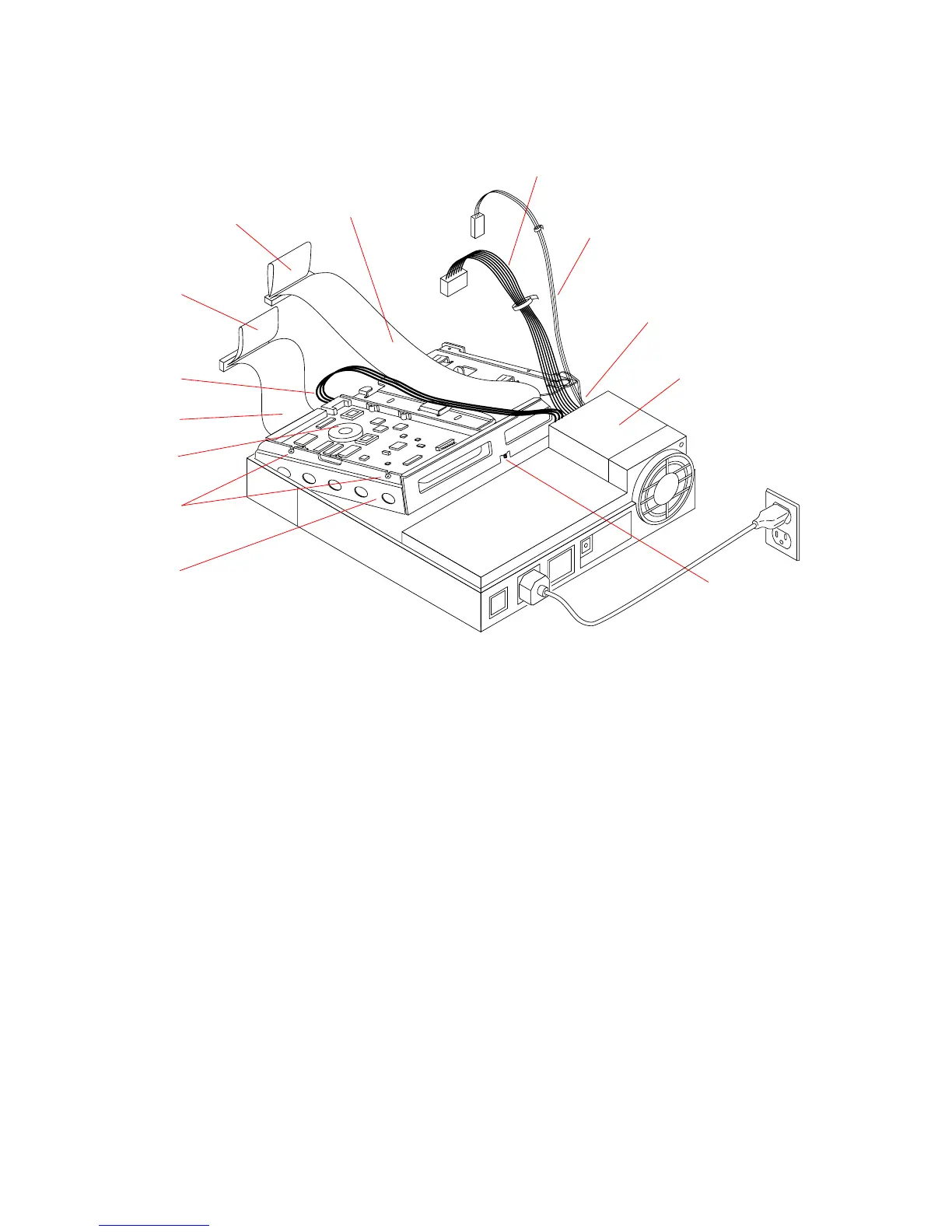

FIGURE 9-13 Removing the Disk Drive Mounting Bracket
5. Remove the disk drive mounting bracket.
a. Carefully bend the power cables where they exit the power supply so that the
mounting bracket can be removed without snagging or cutting the cables.
b. Tilt the bracket up and away from the power supply (see
FIGURE 9-13).
c. Lift the bracket out of the system unit and place it on an antistatic mat.
Hard drive
Hard drive
Hard disk drive
Drive bracket
Drive mounting
Pull tab
Diskette drive
Main logic
Diskette drive
Power supply
UNIT TOP
data cable
power cable
screw holes
bracket
power cable
data cable
power cable
Keyboard soft
power-on cable
(hidden from view)
Pull tab
Captive
screw
To Next Page
