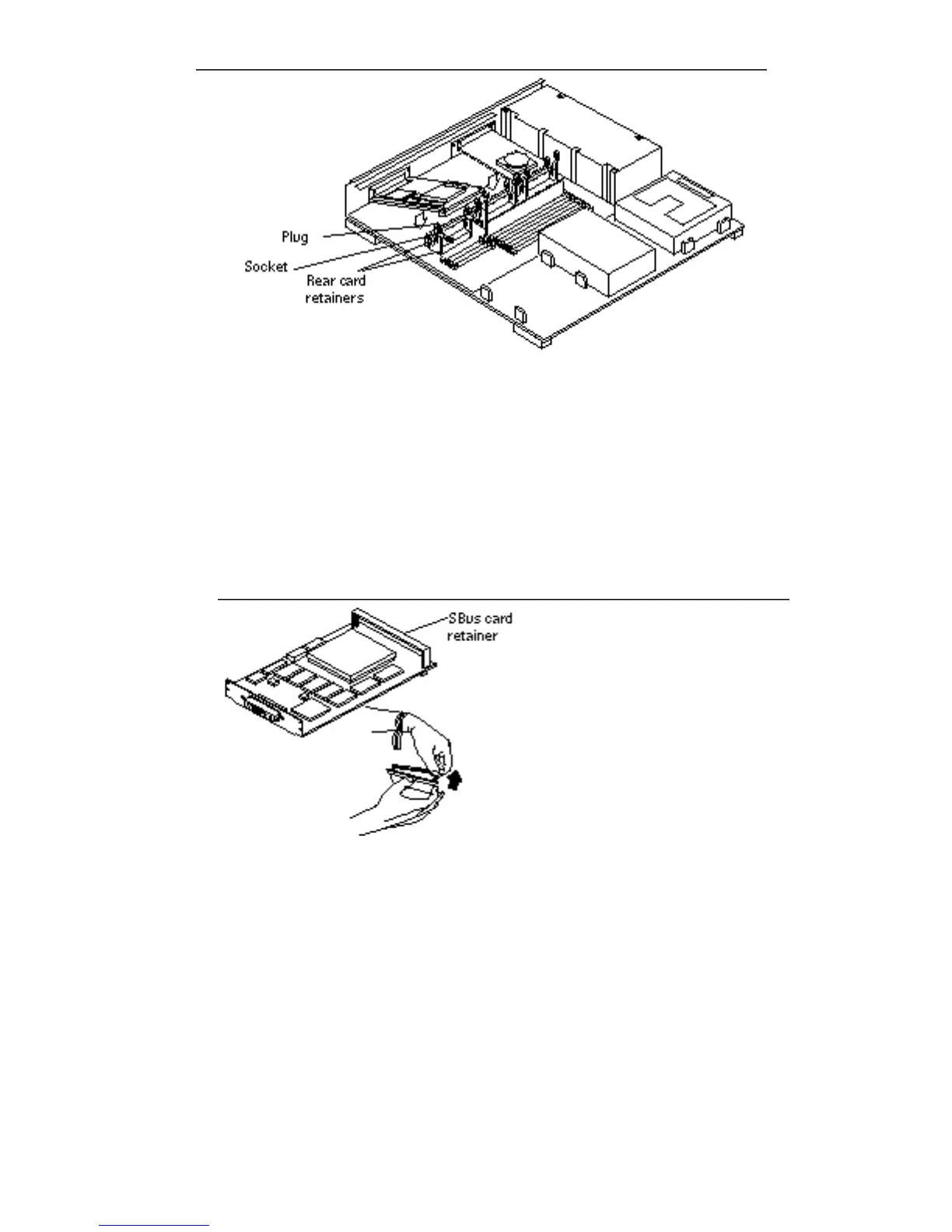

Figure 10–10 SBus Card Plug, Socket, and Retainers
7. Remove the card retainer from the SBus card.
See Figure 10–11.
a. Bend one leg of the retainer slightly to the outside until the hook clears the
hole in the SBus card.
b. Remove the other side of the retainer which should come out easily without
bending it.
Figure 10–11 Removing the SBus Card Retainer
112
SPARCstation 10 Service Manual ♦ Revision A, July 1993
