Sun Microsystems SPARCstation 10 - Page 161

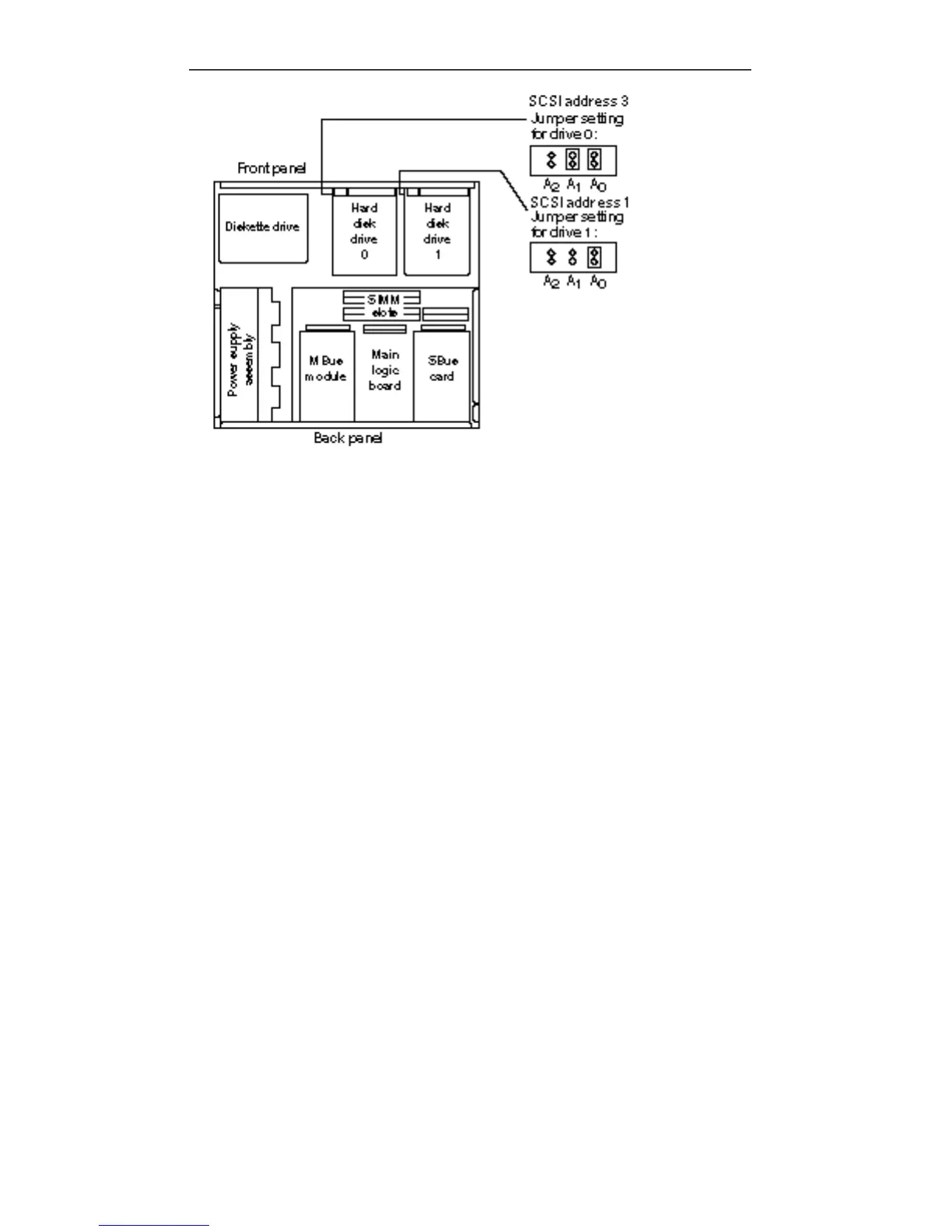

Figure 14–4 Jumper Settings for Drive 0 and 1
5. Position the drive connectors toward the front of the chassis.
See Figure 14–5.
6. Lower the drive into the chassis and align the grommets on the drive mounts.
See Figure 14–5.
DC Power Harness 145
