Wear a grounding strap when handling the drive. Refer to “Attaching the Wrist
Strap” on page 34 in Chapter 4. Do not touch the components themselves or any
metal parts.
To remove the internal disk cable, follow these steps:
1. Remove the disk drive(s) from the system unit.
a. Check that the green LED at the front of the chassis is not lit.
b. Check that the system power cord remains connected to the system and the
wall outlet.
c. Remove the system unit cover.
Refer to “Removing the System Unit Cover” on page 32 in Chapter 4.
d. Attach the wrist strap.
Refer to “Attaching the Wrist Strap” on page 34 in Chapter 4.
e. Slide the disk drive toward the rear of the chassis to free the grommets
from the drive mounts and lift the drive.
See Figure 15–1.

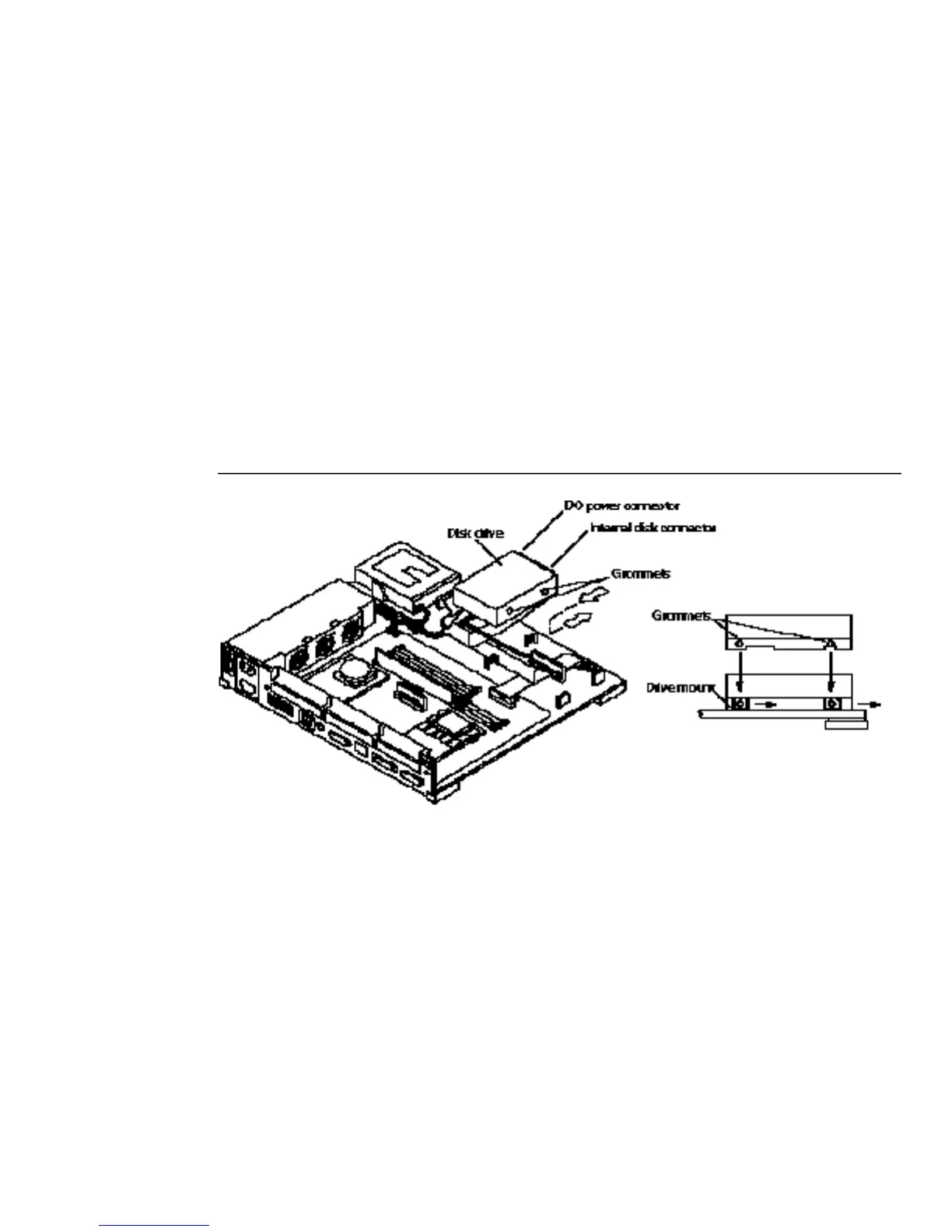

Figure 15–1 Removing the Disk Drive
148
SPARCstation 10 Service Manual ♦ Revision A, July 1993
