f. Disconnect the DC power connector from the disk drive.
See Figure 15–1.
g. Disconnect the internal disk connector from the disk drive.
See Figure 15–1.
h. Lift the hard disk drive out of the chassis.
Put it aside on an antistatic surface for future use.
i. Note the disk drive location.
j. Follow steps e through i if a second drive is installed.
2. Remove the diskette drive from the system unit.
a. Slide the diskette drive toward the outer side of the chassis to free the
grommets from the drive mounts.
See Figure 15–2.

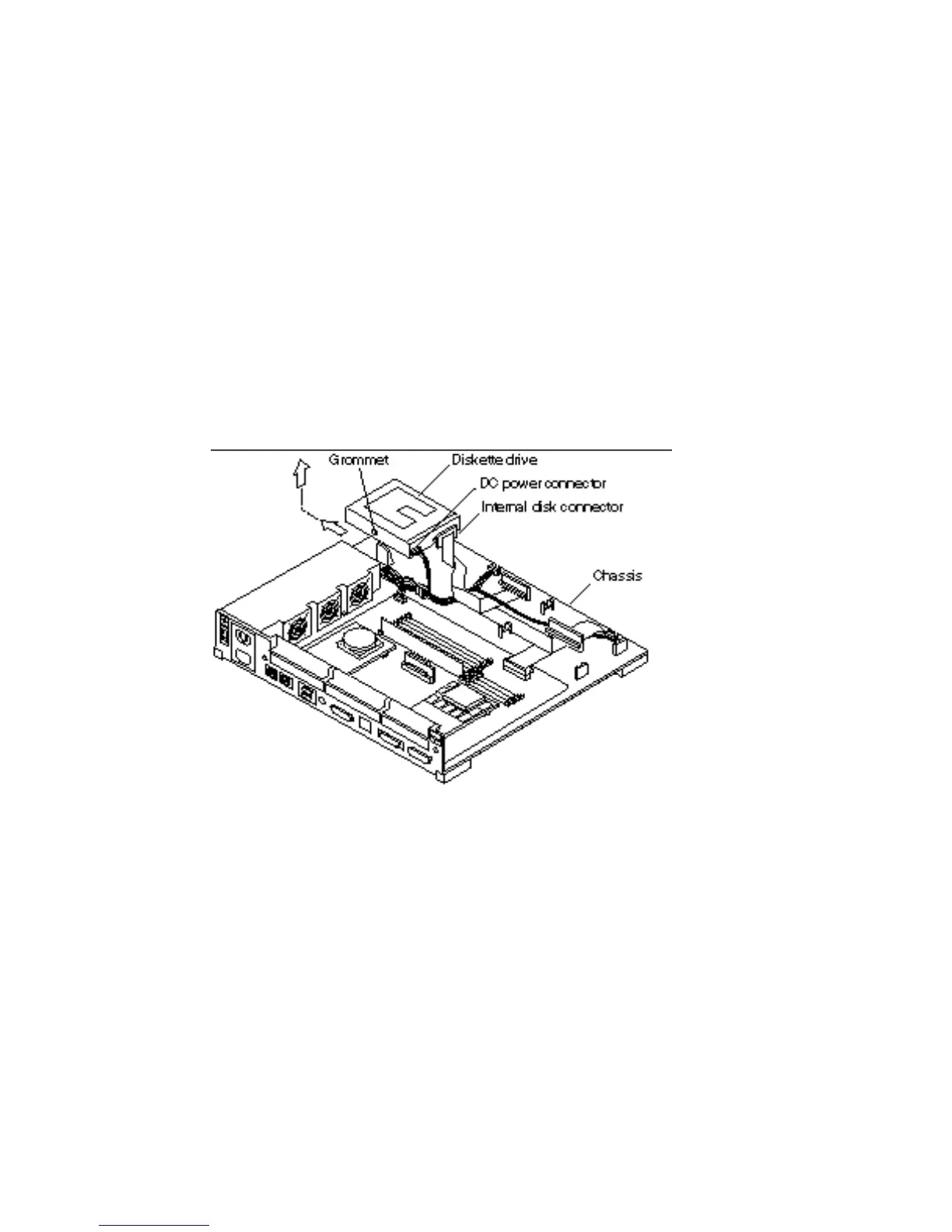

Figure 15–2 Removing a Diskette Drive
b. Disconnect the DC power connector from the diskette drive.
See Figure 15–2.
Internal Disk Cable 149
