c. Disconnect the internal disk connector from the diskette drive.
See Figure 15–2.
d. Lift the diskette drive out of the chassis and put it aside on an antistatic
surface.
3. Remove the DC power harness from the system unit.
a. Disconnect the DC power connector from the power supply.
See Figure 15–3.

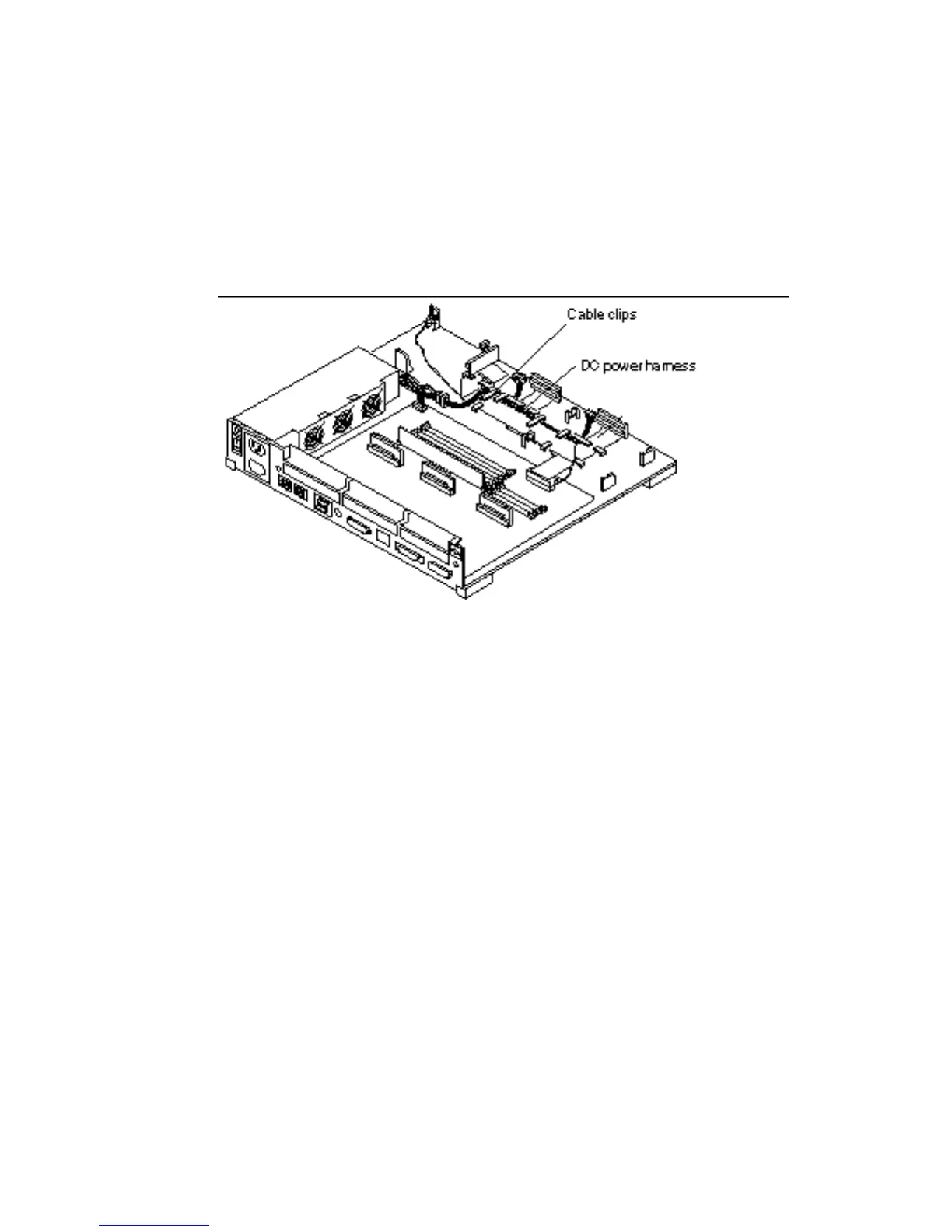

Figure 15–3 DC Power Harness and Internal Disk Cable Layout
b. Slide the DC power harness out of the cable clips in the base of the system
and remove the DC power harness from the chassis.
See Figure 15–3.
4. Disconnect the LED connector from the LED.
See Figure 15–4.
150
SPARCstation 10 Service Manual ♦ Revision A, July 1993
