Sun Microsystems SPARCstation 10 - Page 167

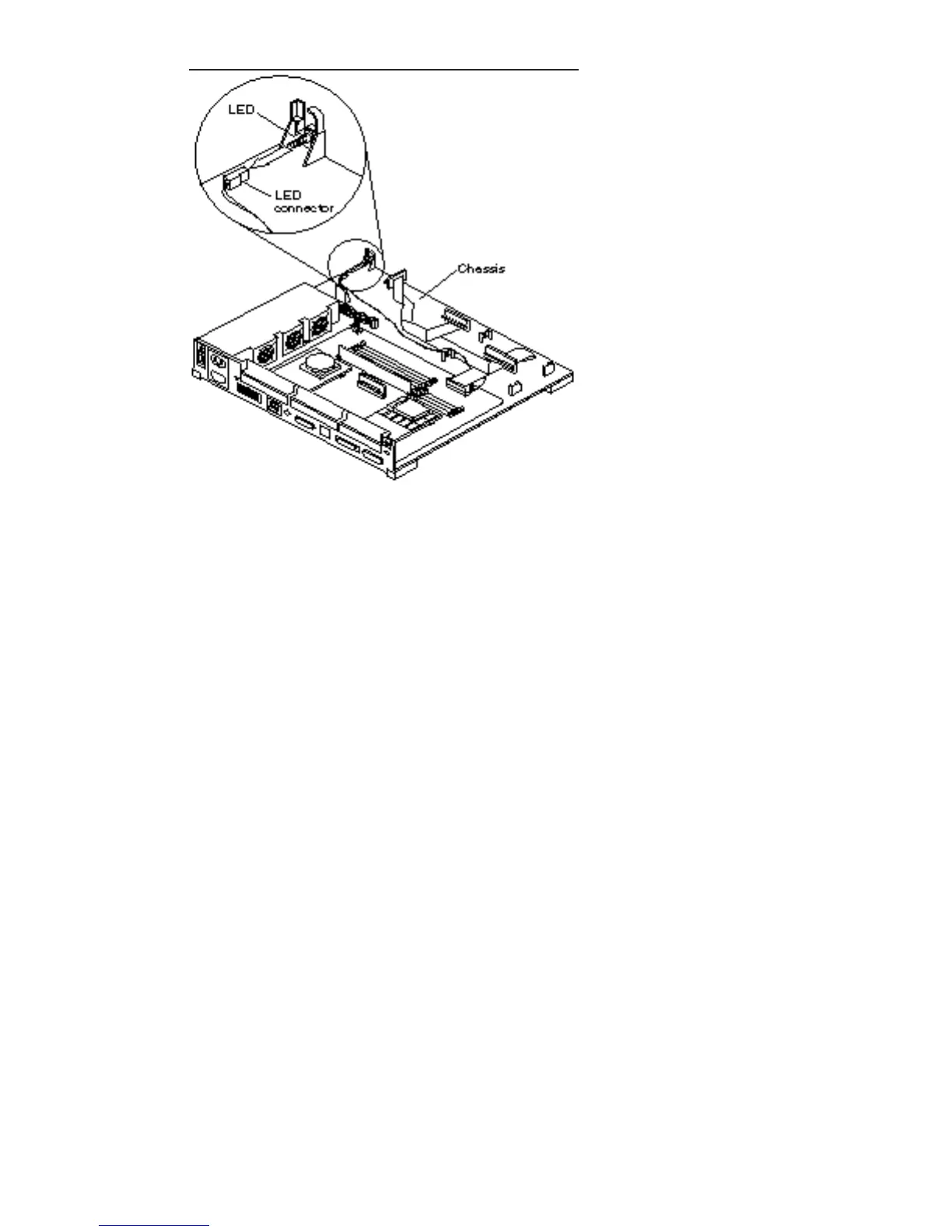

Figure 15–4 Disconnecting the LED Connector from the LED
5. Disconnect the internal disk connector from the MLB.
See Figure 15–5.
6. Slide the internal disk cable out of the cable clips in the system base and
remove it from the chassis.
Internal Disk Cable 151
