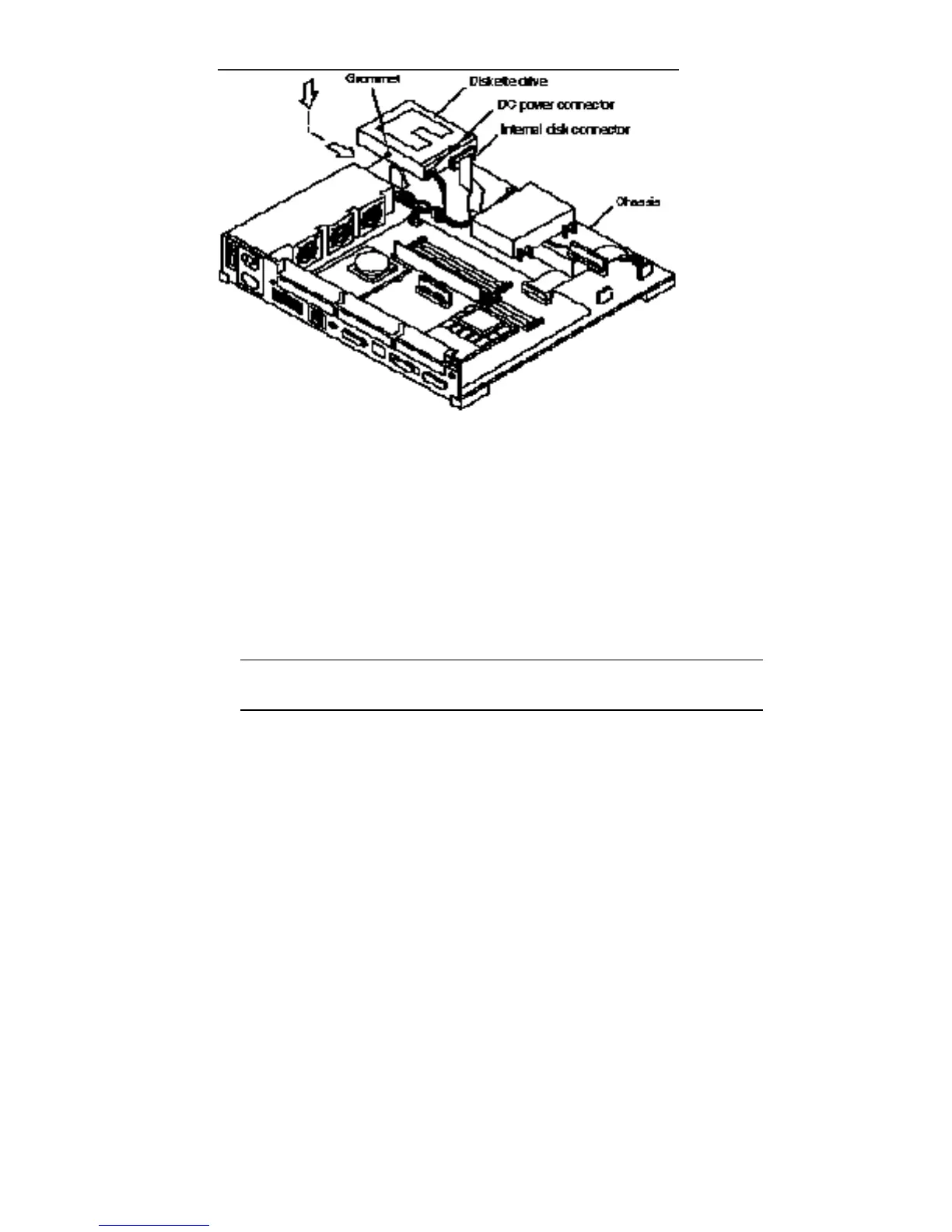

Figure 15–10 Installing the Diskette Drive
d. Connect the DC power connector to the diskette drive.
See Figure 15–10.
e. Connect the internal disk connector to the diskette drive.
The connector is keyed so that it will fit only one way. See Figure 15–10.
f. Slide the diskette drive toward the center of the chassis until the three
grommets sit tightly in the drive mounts.
Note - The system cover may not close, if the diskette drive is not seated
correctly in the drive mounts.
g. Insert a clip into the diskette drive mounts at two places after installing the
diskette drive.
See Figure 15–11.
156
SPARCstation 10 Service Manual ♦ Revision A, July 1993
