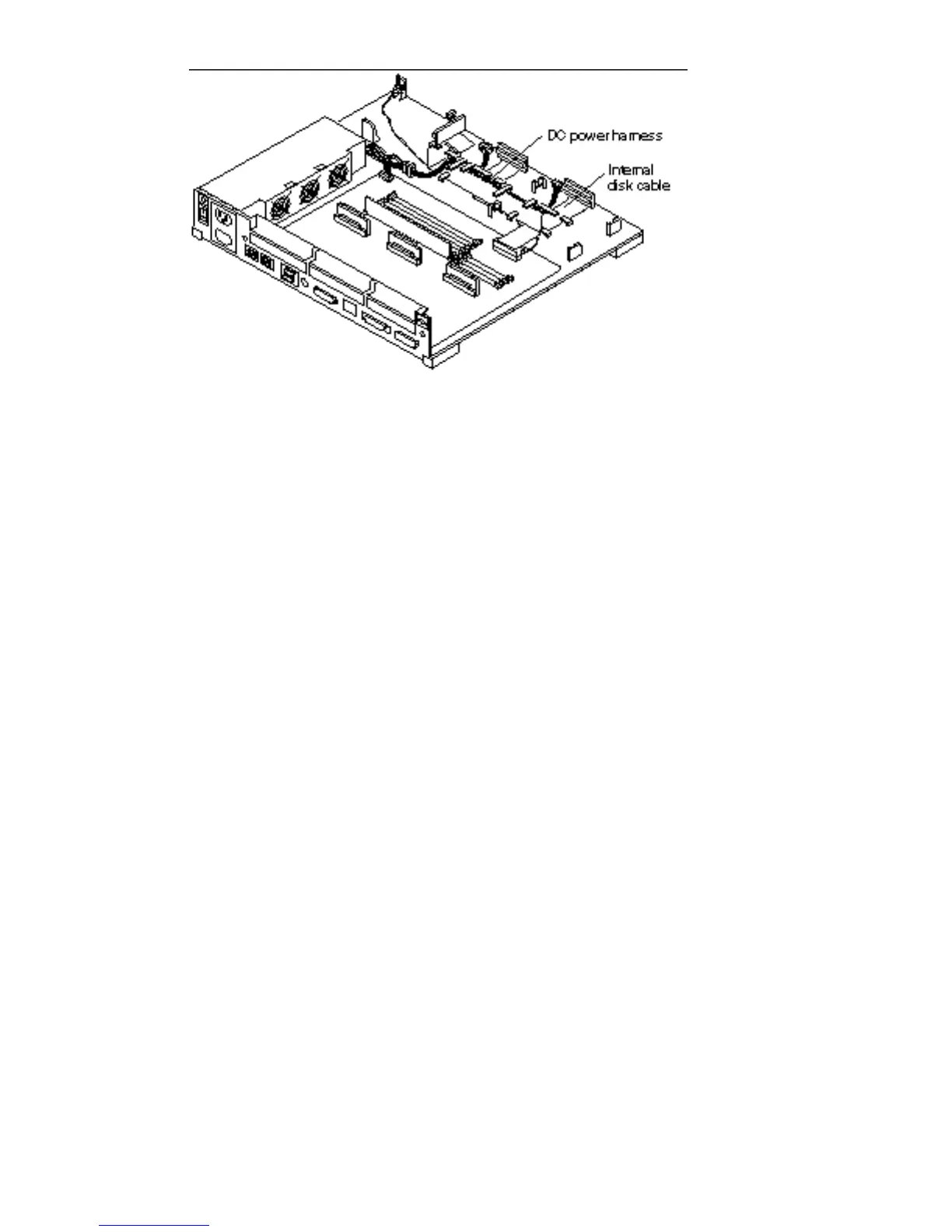

Figure 15–9 DC Power Harness Layout
6. Install the diskette drive.
a. Connect the DC power connector to the power supply.
See Figure 15–9.
b. Position the drive unit so the data and power cables face the inside of the
chassis.
c. Lower the drive into the chassis and align the three grommets into the drive
mounts.
See Figure 15–10.
Internal Disk Cable 155
