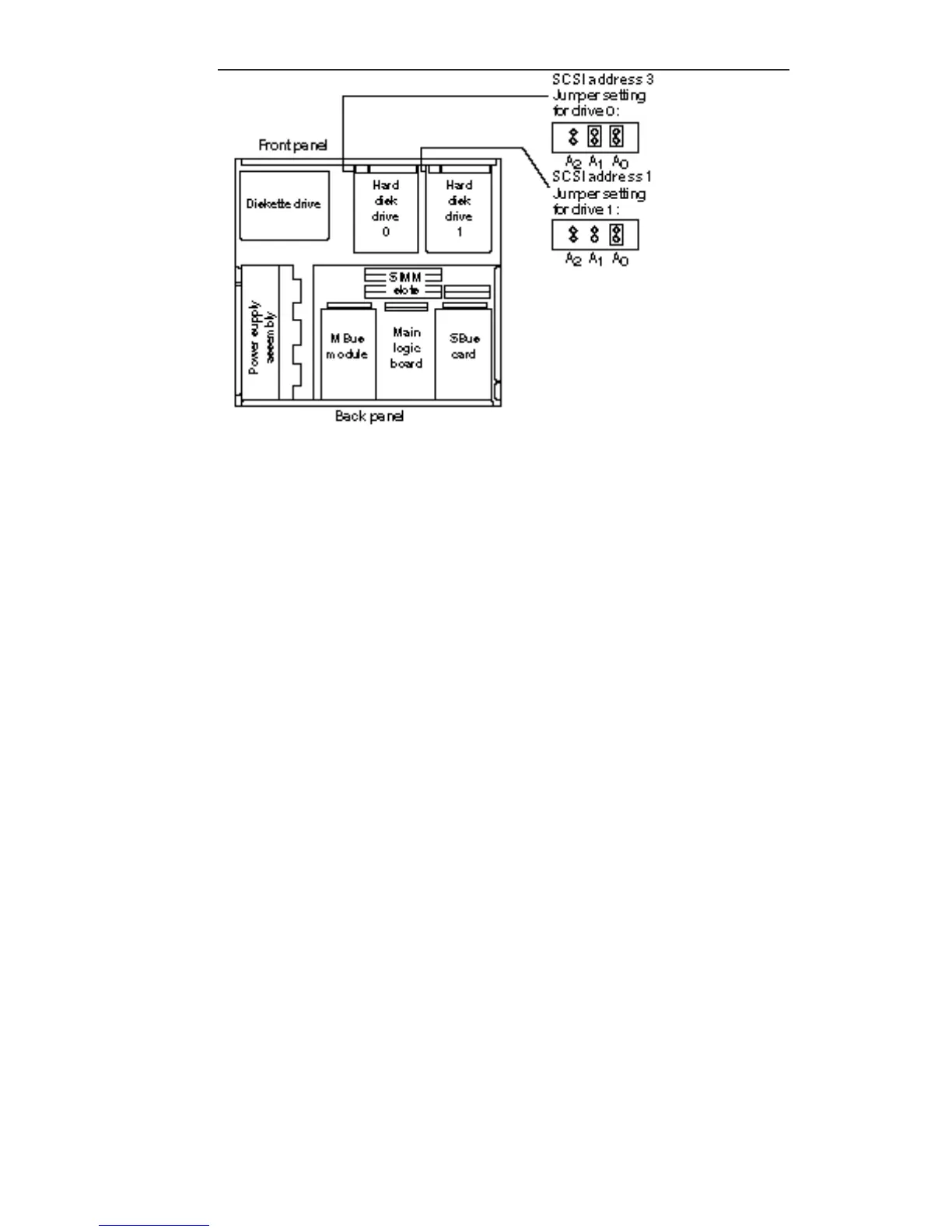

Figure 15–12 Jumper Settings for Hard Disk Drive 0 and 1
b. Lower the drive into the chassis. The connector side of the drive should be
facing the front of the chassis.
See Figure 15–13.
158
SPARCstation 10 Service Manual ♦ Revision A, July 1993
