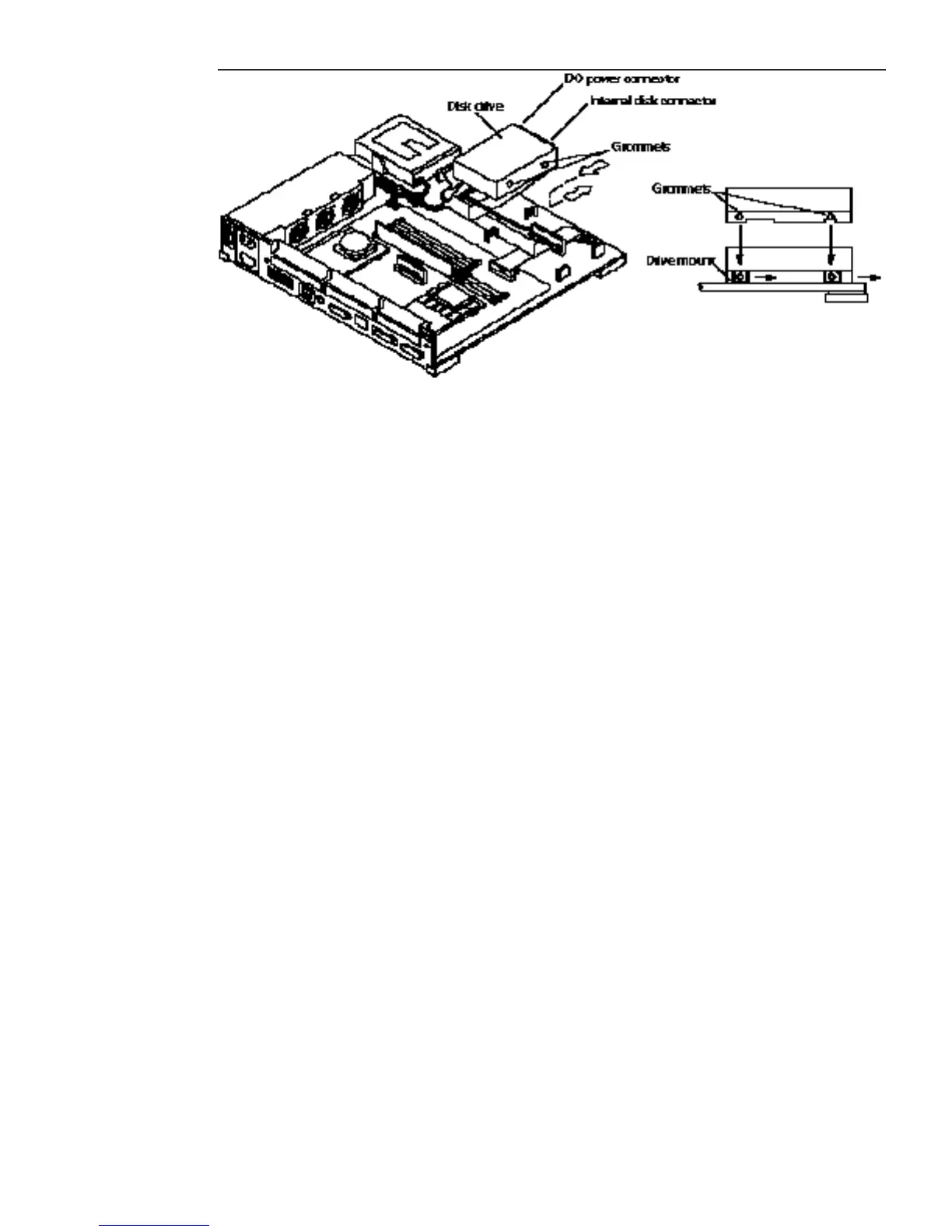

Figure
15–14
Installing
the
Disk
Drive
8.
Follow
the
instructions
in
Chapter
17
to
detach
the
wrist
strap,
install
the
cover
,
connect
the
expansion
unit(s),
and
power
on
the
system.
160
SP
ARCstation
10
Ser
vice
Manual
♦
Re
vision
A,
July
1993
175
177
