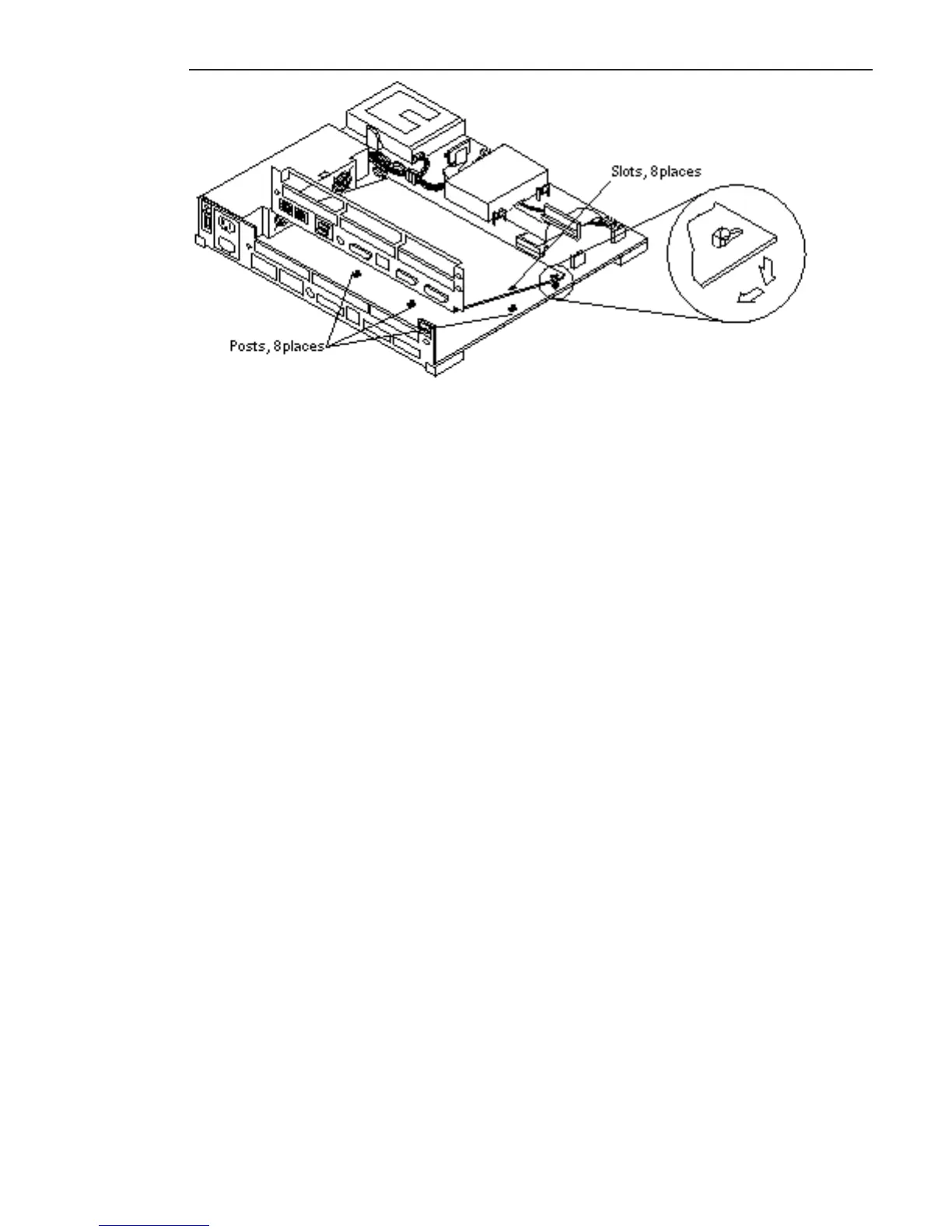

Figure 5–21 Lowering the System Board into the Chassis
5. Connect the DC power to the MLB (J1501).
See Figure 5–22.
6. Connect the internal drive connector to the MLB (J0601).
See Figure 5–22.
Main Logic Board 57
