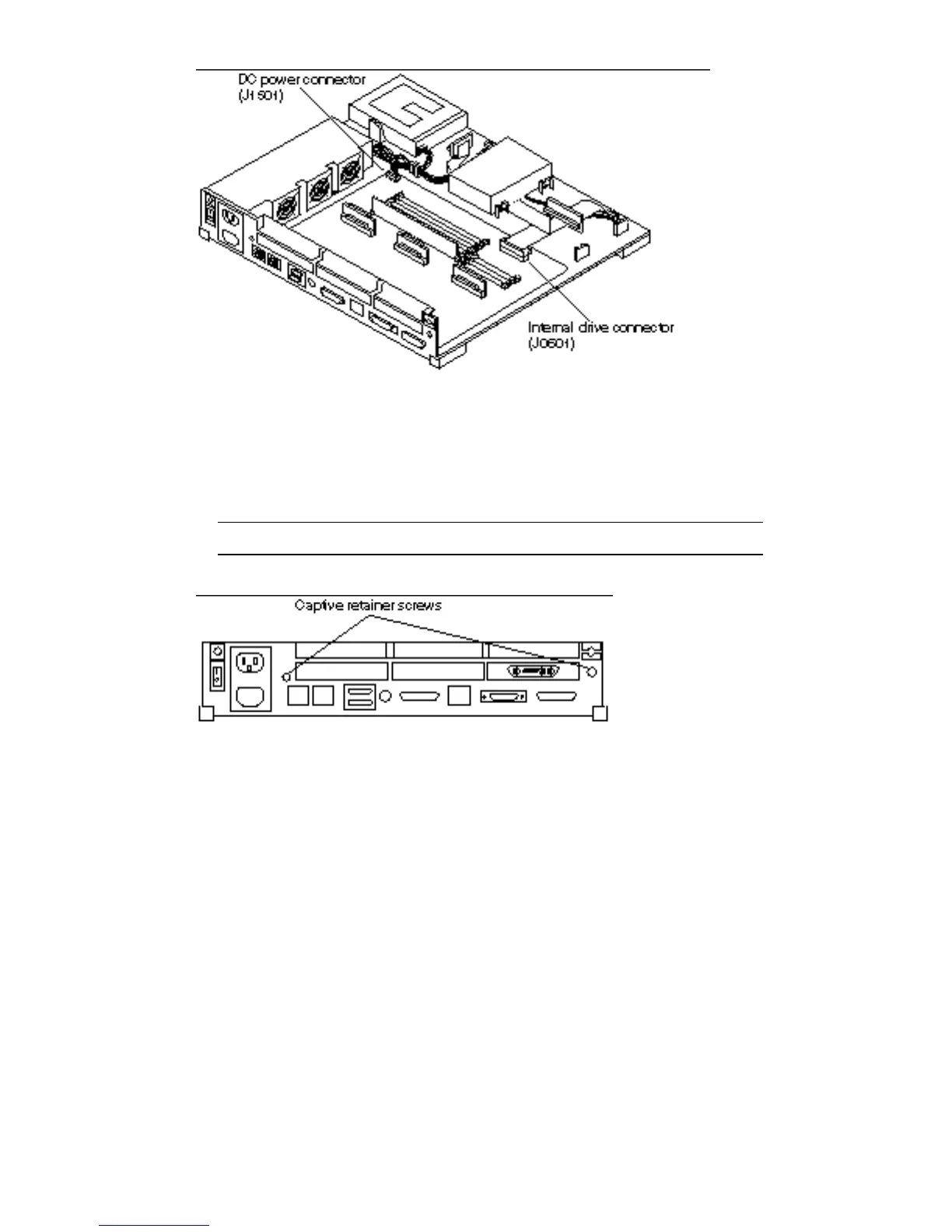

Figure 5–22 Connecting the Internal Cables
7. Tighten the captive retainer screws at the rear of the chassis.
See Figure 5–23.
Note - Do not overtighten the captive screws or the lock block screw
Figure 5–23 MLB Retainer Screws at the Rear of the Chassis
8. Install the lock block by inserting the screw through the lock block.
See Figure 5–24.
